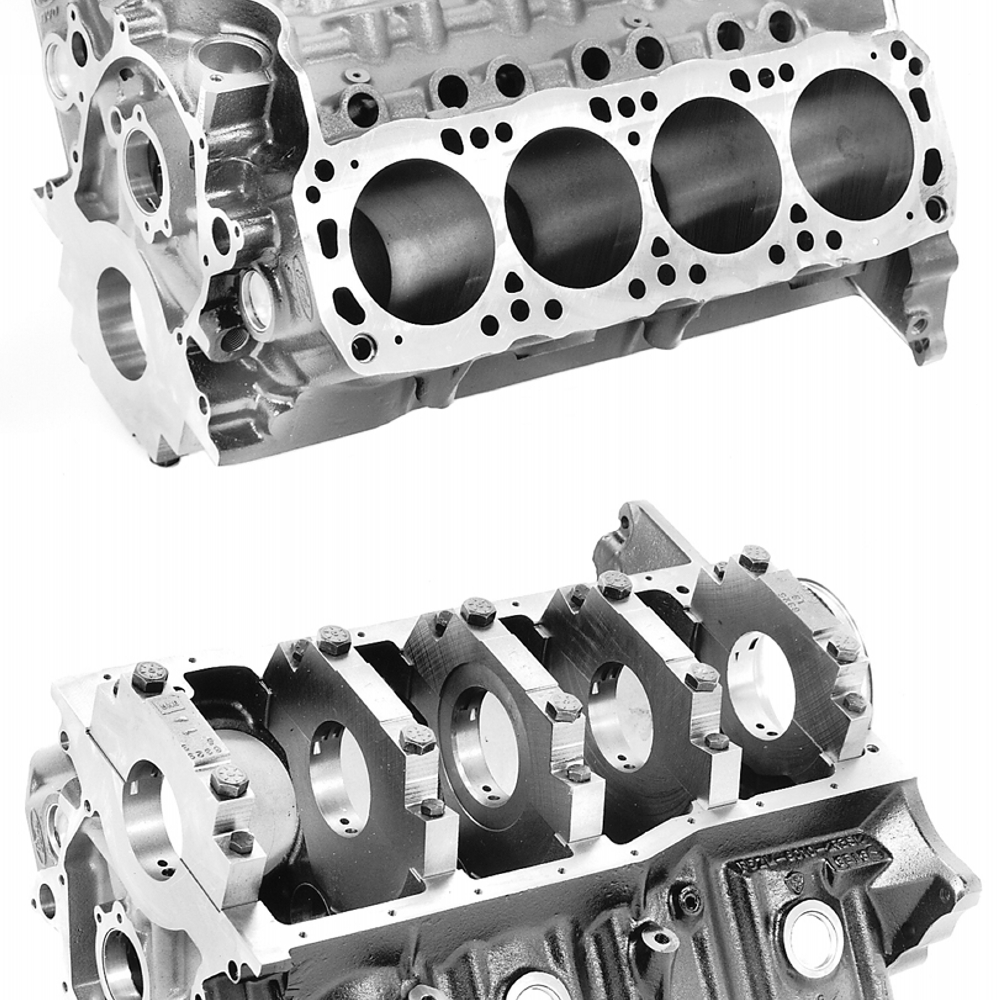

351 SIAMESE BORE DRY SUMP BLOCK

351 SIAMESE BORE DRY SUMP BLOCK
M-6010-R451
Retail
$2,395.00
Sold in Units of
Each (1)
Instruction Sheet
Not Available

Proudly Made in the USA
    M-6010-R451* 9.200" Deck Height
  • Cast iron block with 4-bolt main caps
  • Nodular iron main caps
  • Can be bored/stroked to produce 427 cu. in.
  • Siamese cylinder bores
  • Bore range from 4.000-4.180"
  • Dry sump oiling design
  • 2.749" main journal diameter
  • Weighs approximately 190 lbs.
  • High-strength block for professional competition (Circle Track, Drag Racing)
  • Semi-finished lifter bores and main bearing bores—must be honed to fit
  • Uses common OD cam bearings M-6261-J351/R351. See page 55 NOTE: Siamese blocks are solid casting between the cylinder bores. There are no water passages between them.This is done to increase the strength of the block.
Part Type
Engine: Engine Blocks
Warranty Availability
Not Available
Packaged Dimensions
21.5" x 15" x 15
Packaged Weight
235 lb(s)
Part Type
Engine: Engine Blocks
UPC Code
756122695227
Country of Origin
United States
California Executive Order
No
