7.3L RH CNC PORTED CYLINDER HEAD
M-6049-SD73P
Retail
$1,850.00
Sold in Units of
Each (1)
Instruction Sheet
Not Available
This part is in your Wish List
This part has been added to your Wish List
ATTENTION:
This part is intended as a replacement part for use only in the application(s)
identified in the product description. Installation of this part in a vehicle for
which it is not intended may violate U.S. and Canadian laws and regulations related
to motor vehicle emissions.

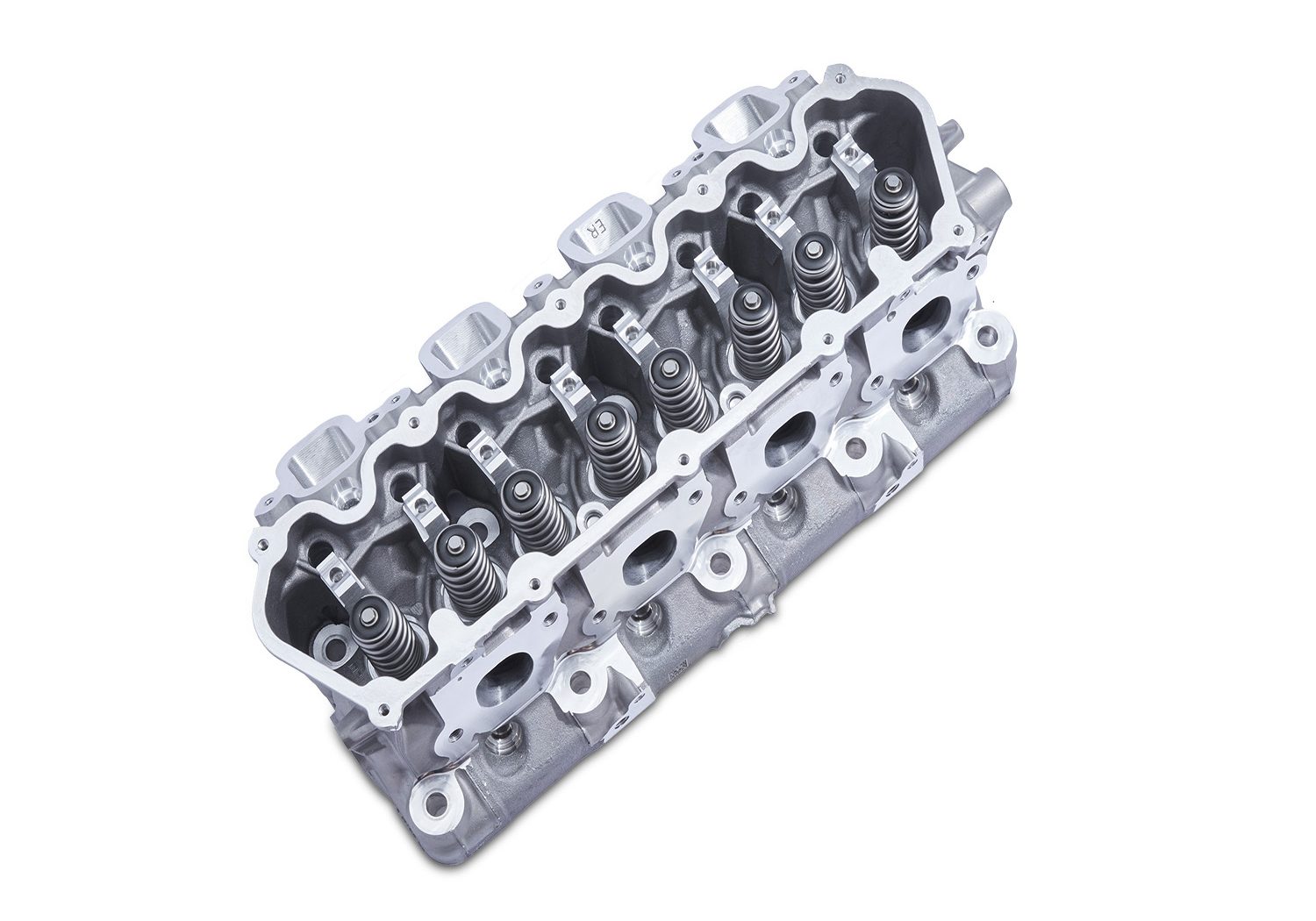

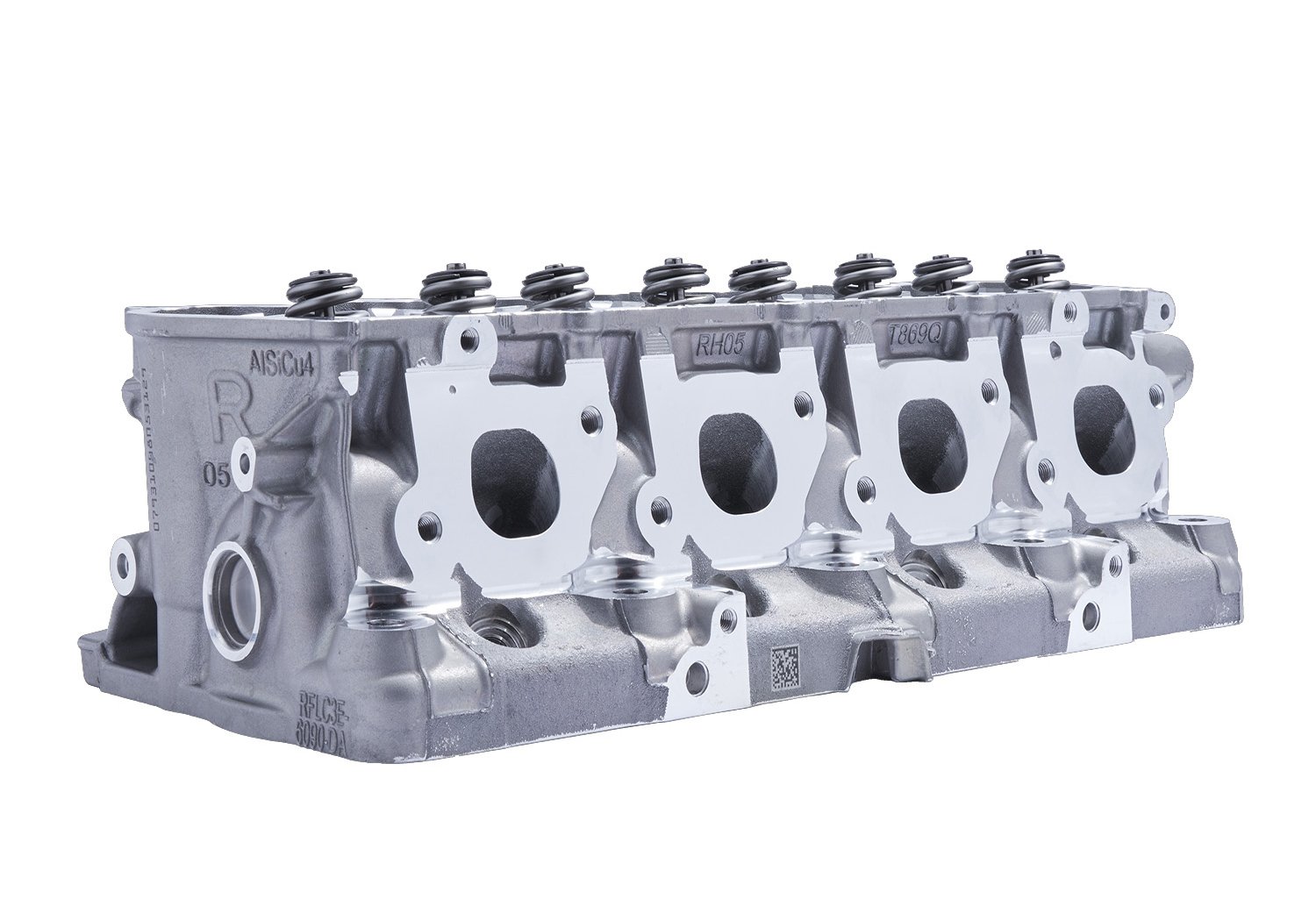

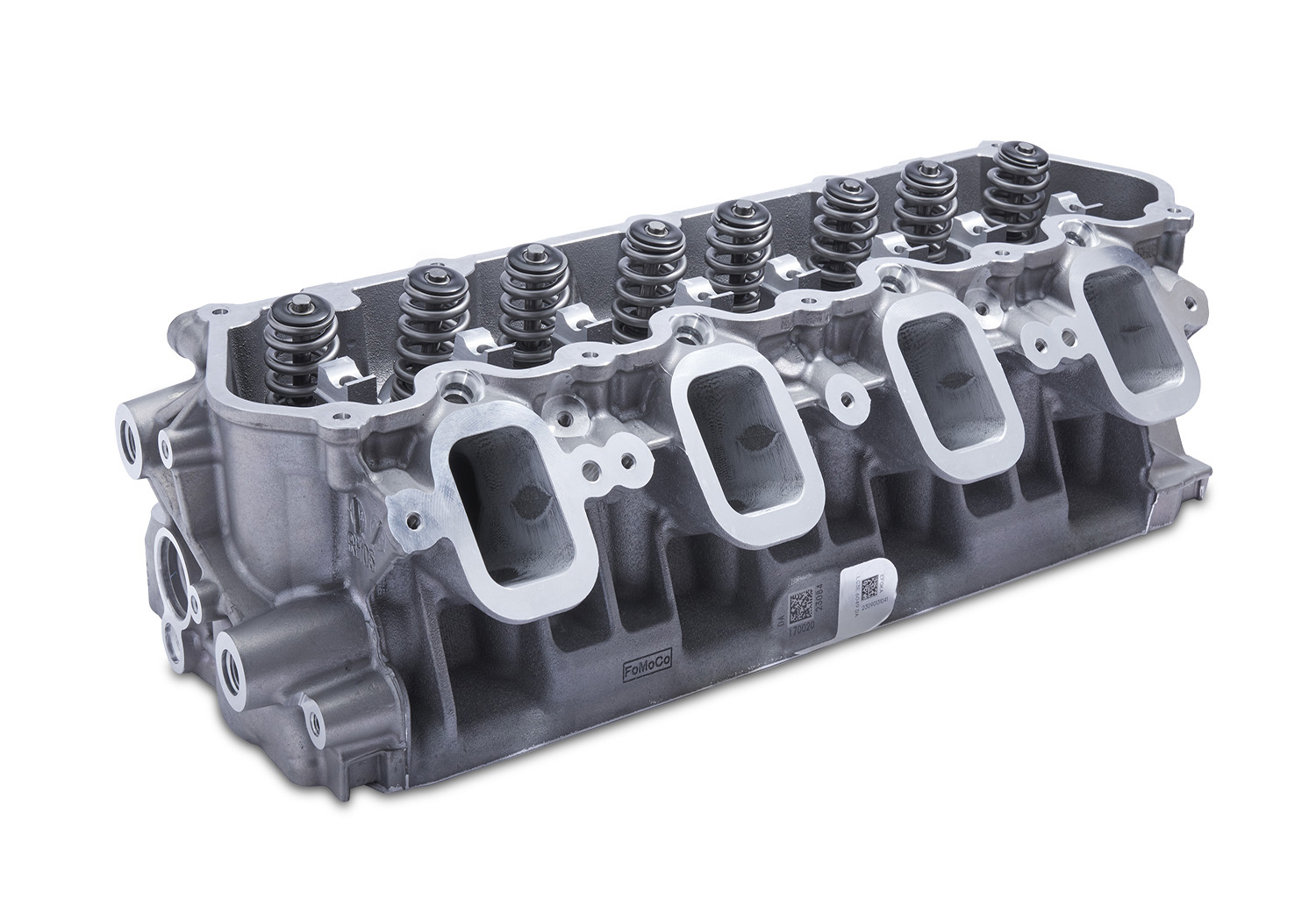

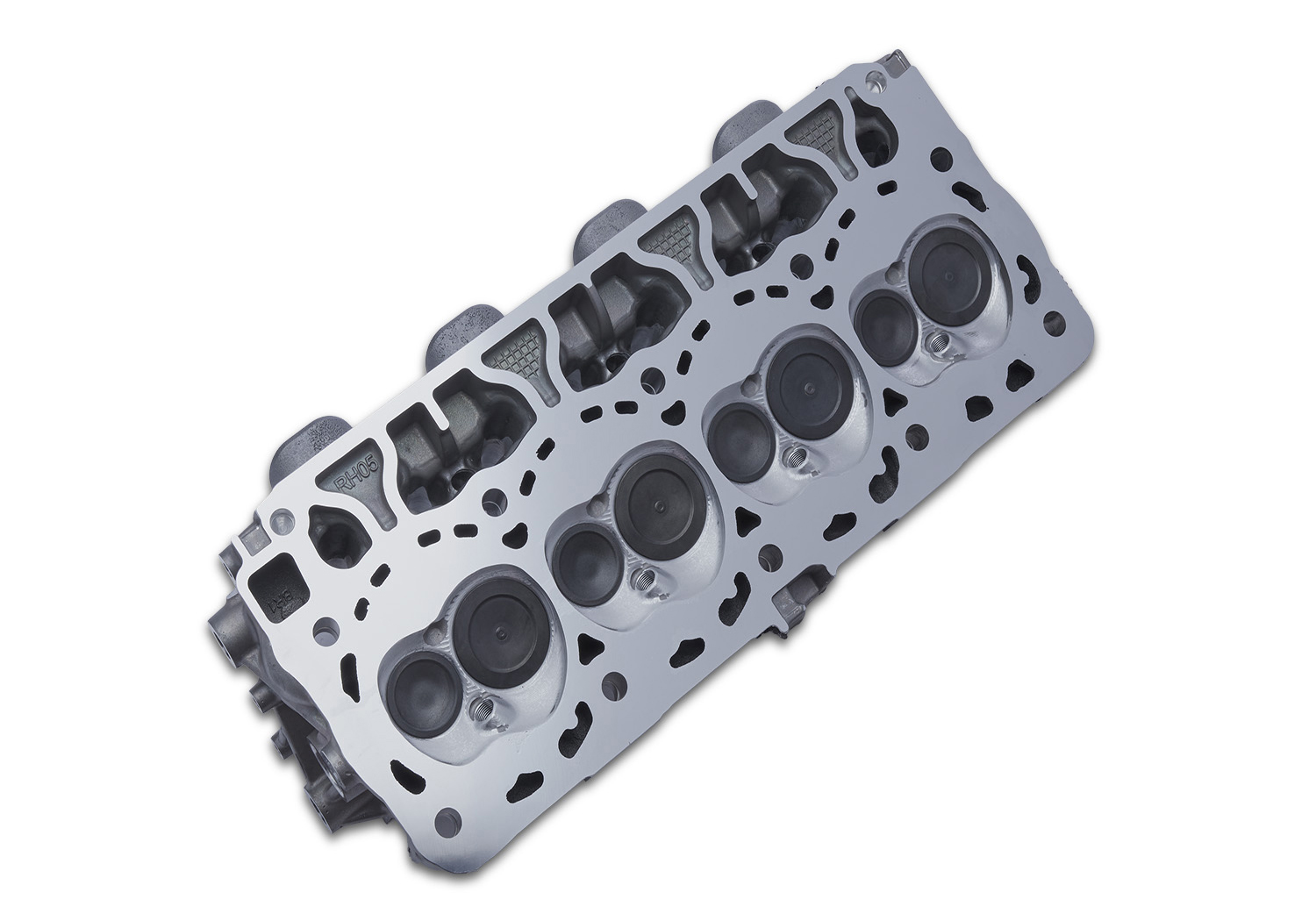

Ford Performance Parts CNC ported right side cylinder head for 2020+ Super Duty 7.3L gasoline engine.
- Assembled ready for installation
- CNC ported Cast aluminum
- As used in the Ford Performance Megazilla™ 615HP crate engine
- 62.4 cc combustion chamber
- PAC 1282LX valve springs / PAC R393 retainers
- 140-150# lbs @ 2.350" installed height.
- 390-415# @ 1.750" open
-
Valve stem diameter: 8 mm
- Intake valve diameter: 55mm (2.165")
- Exhaust valve diameter 42.4mm (1.670")
- Flow data: (CFM) @ 28" H20 on 4.250" bore
- For left side please see M-6050-SD73P
| Stock Intake Port | M-6049-SD73P Intake | |||
| Lift | CFM | Lift | CFM | |
| 0.100" | 70.9 | 0.100" | 75.1 | |
| 0.200" | 147.6 | 0.200" | 150.9 | |
| 0.300" | 218.6 | 0.300" | 223.4 | |
| 0.400" | 265 | 0.400" | 271.0 | |
| 0.500" | 299 | 0.500" | 314.0 | |
| 0.600" | 297.8 | 0.600" | 324.7 | |
| 0.700" | 298.4 | 0.700" | 332.3 | |
| Stock Exhaust | M-6049-SD73P Exhaust | |||
| Lift | CFM | Lift | CFM | |
| 0.100" | 53.9 | 0.100" | 57.0 | |
| 0.200" | 104.6 | 0.200" | 107.0 | |
| 0.300" | 150.7 | 0.300" | 147.9 | |
| 0.400" | 178.3 | 0.400" | 183.1 | |
| 0.500" | 187.8 | 0.500" | 209.0 | |
| 0.600" | 192.8 | 0.600" | 216.0 | |
| 0.700" | 195.8 | 0.700" | 219.0 |
|
|
Part Type
Engine: Cylinder Heads
Warranty Availability
Not Available
Package Dimensions
22.75" x 10.25" x 13"
Package Weight
40 lb(s)
UPC Code
756122019269
Country of Origin
Canada
