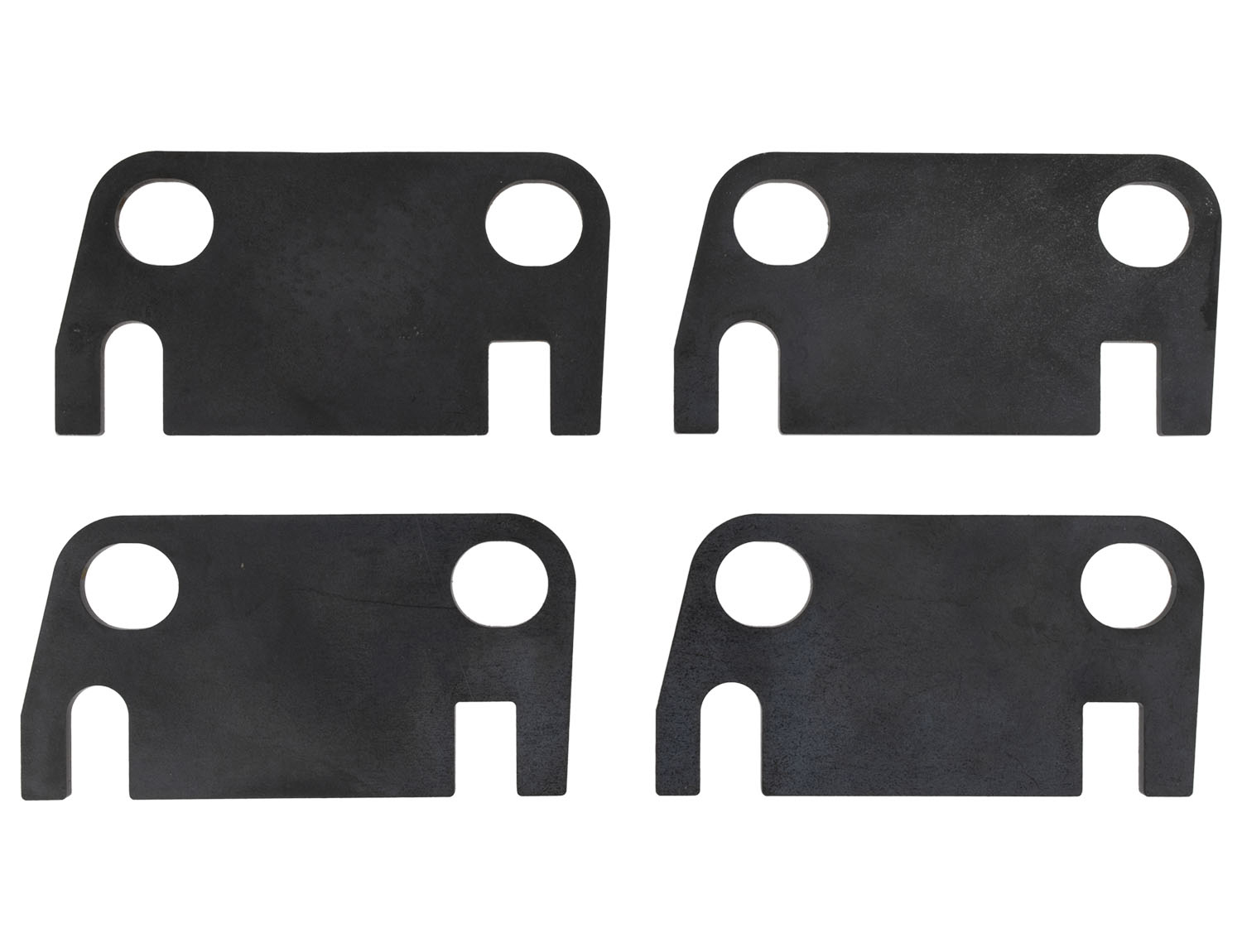

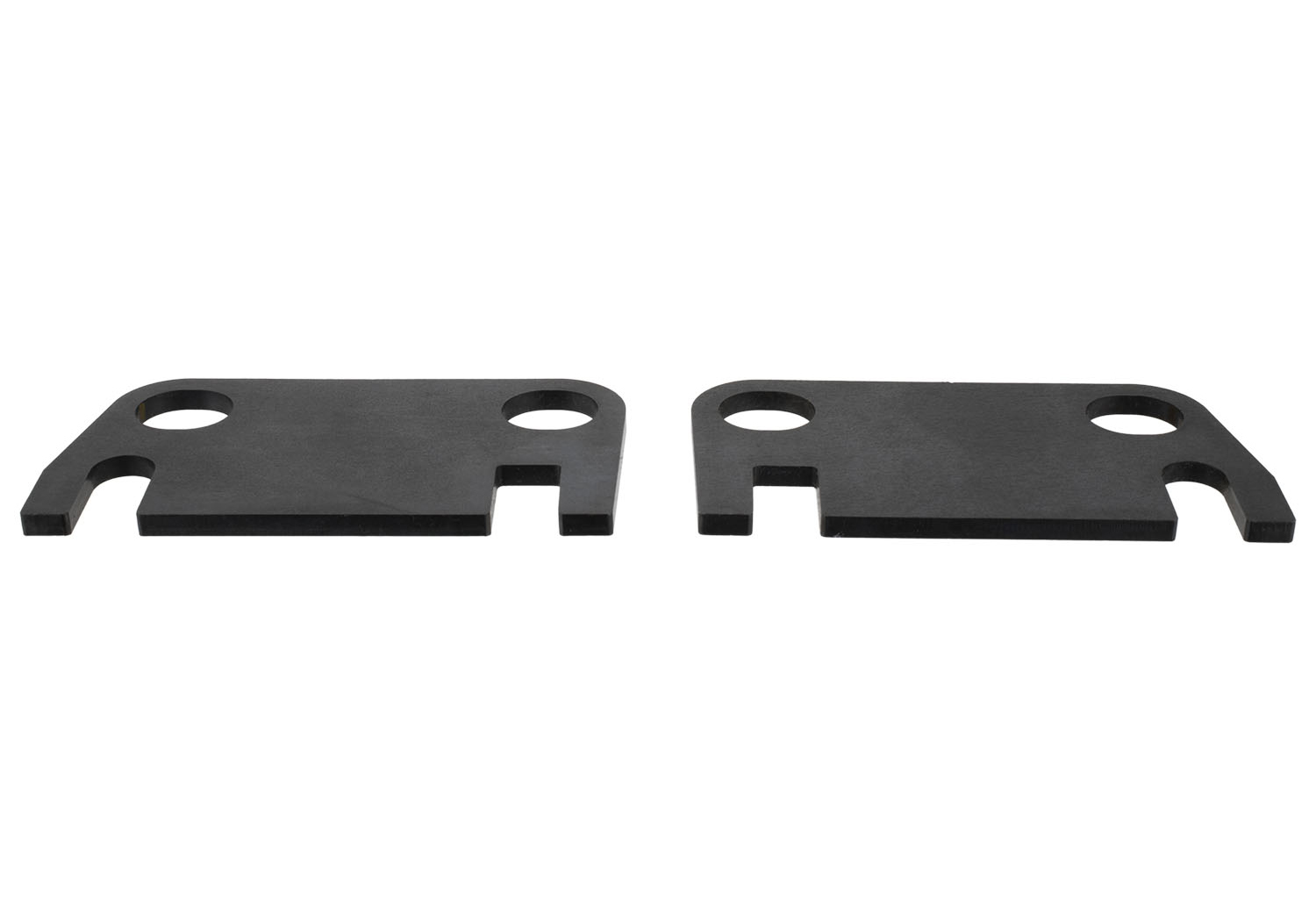

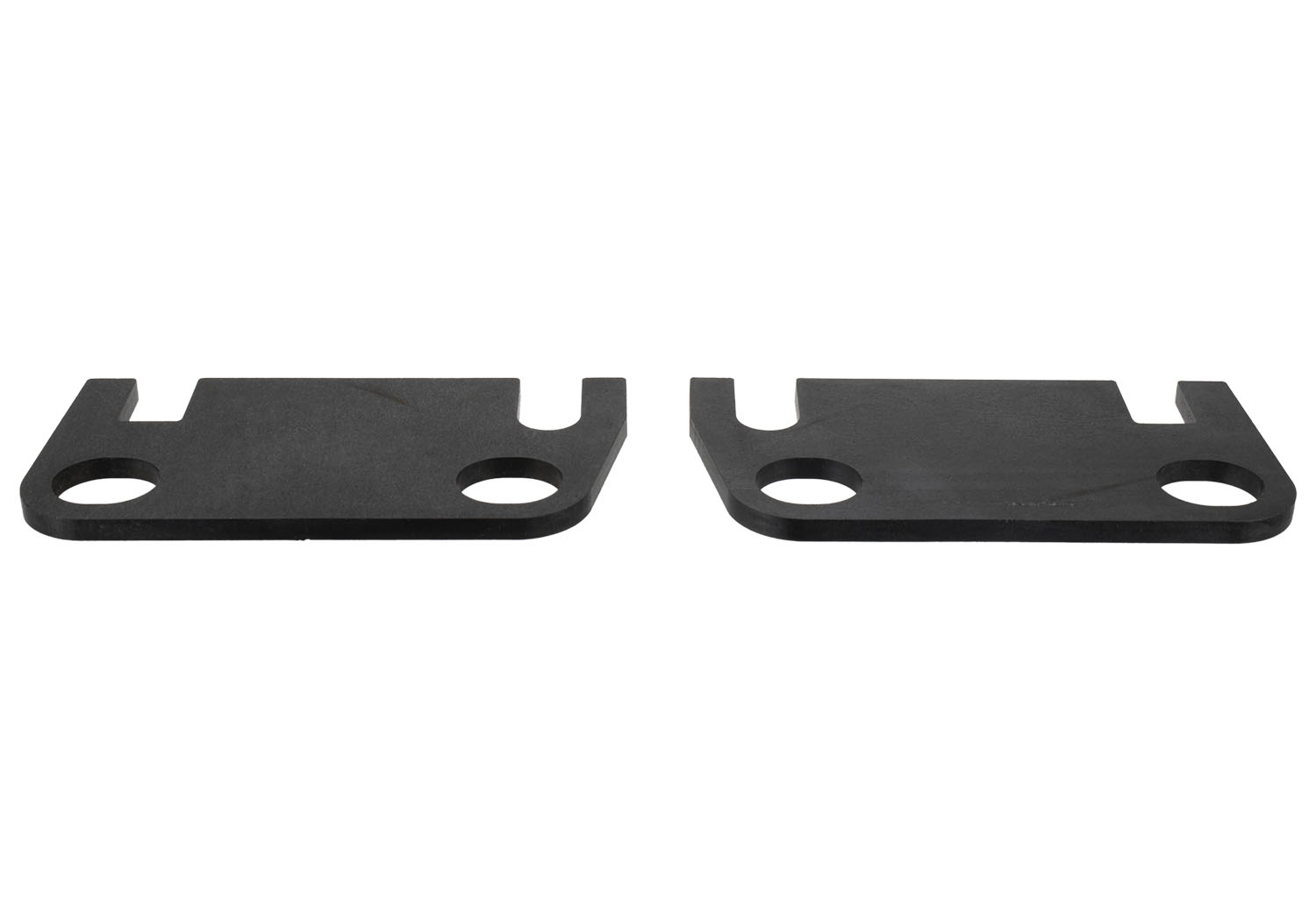

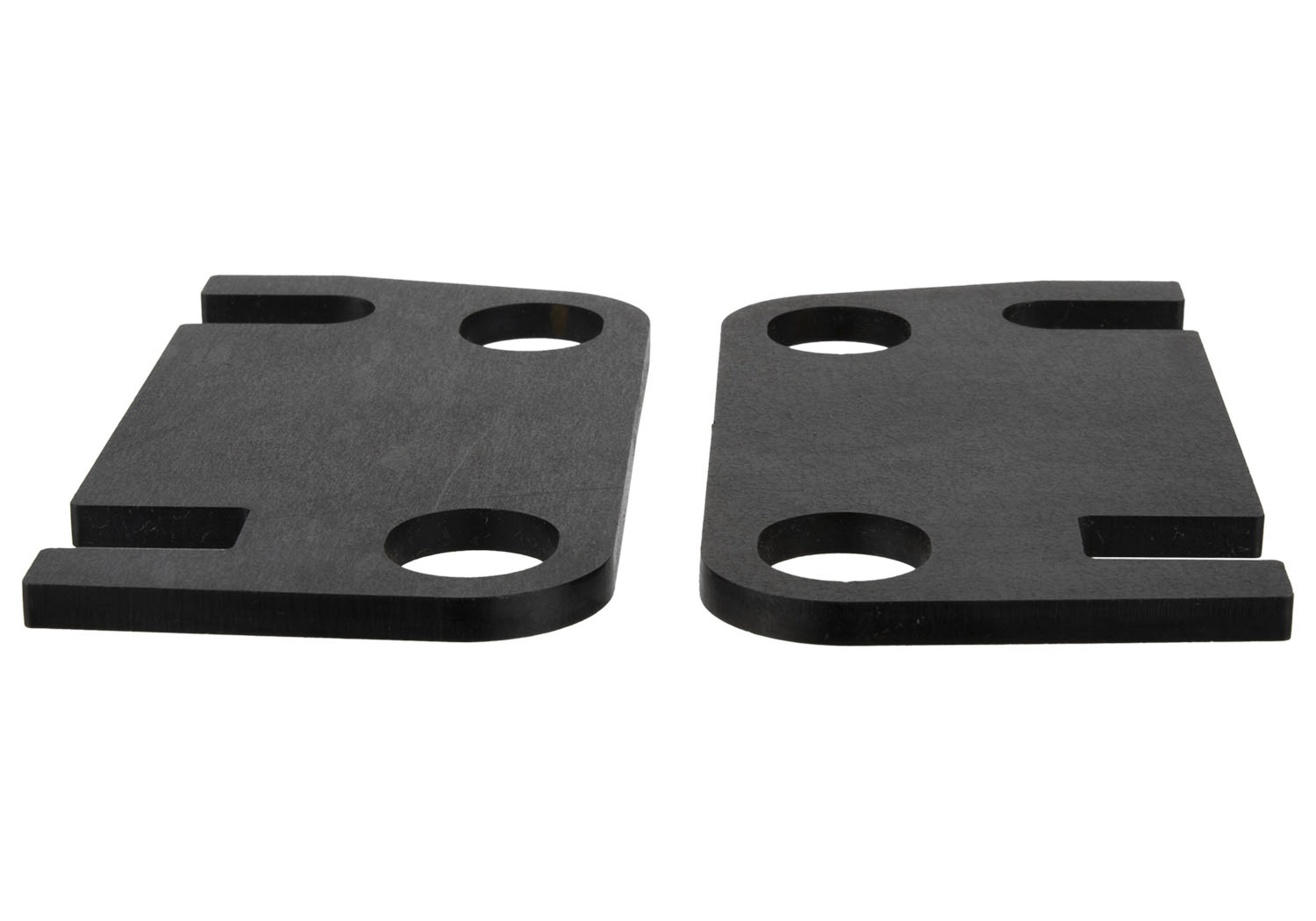

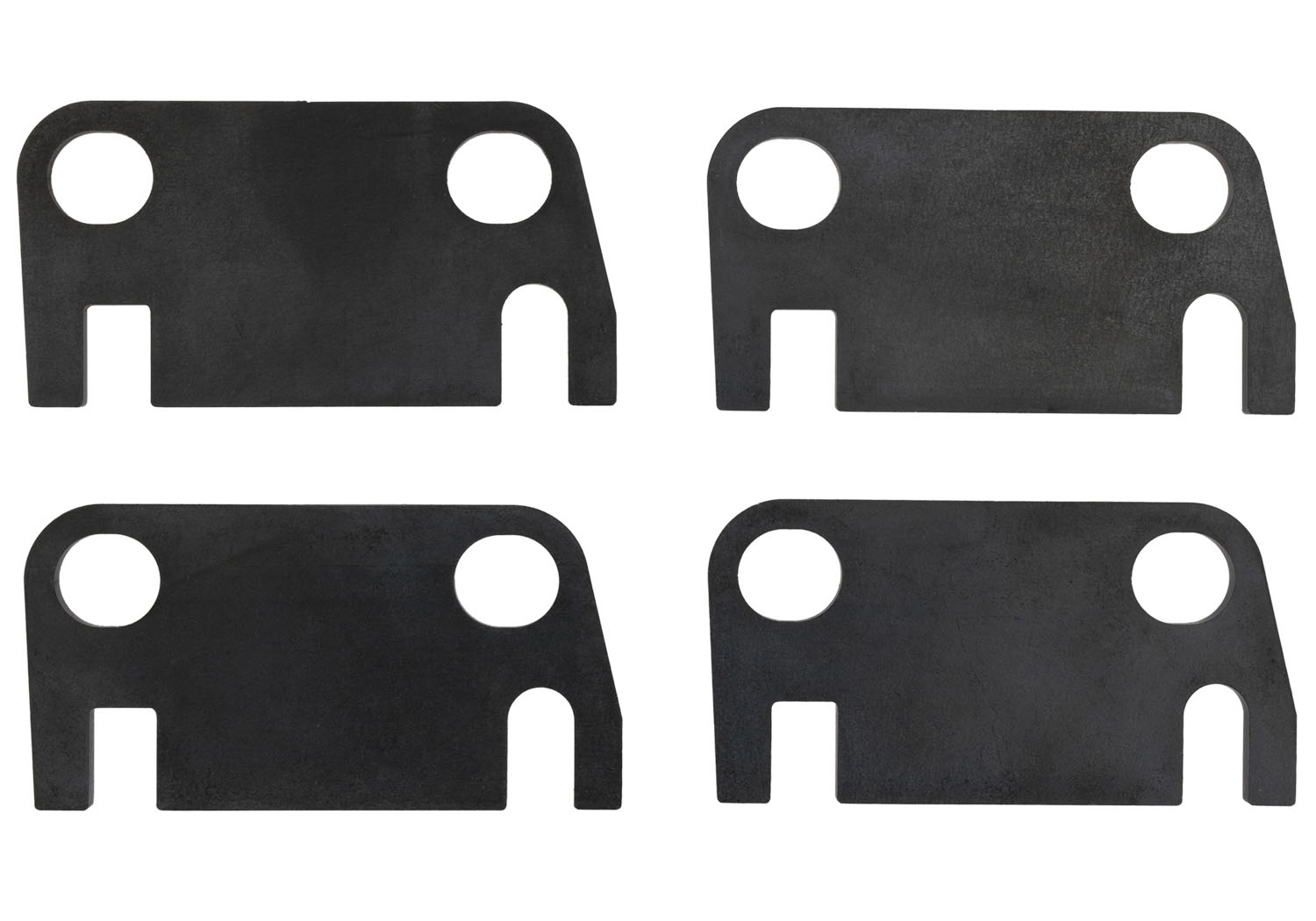

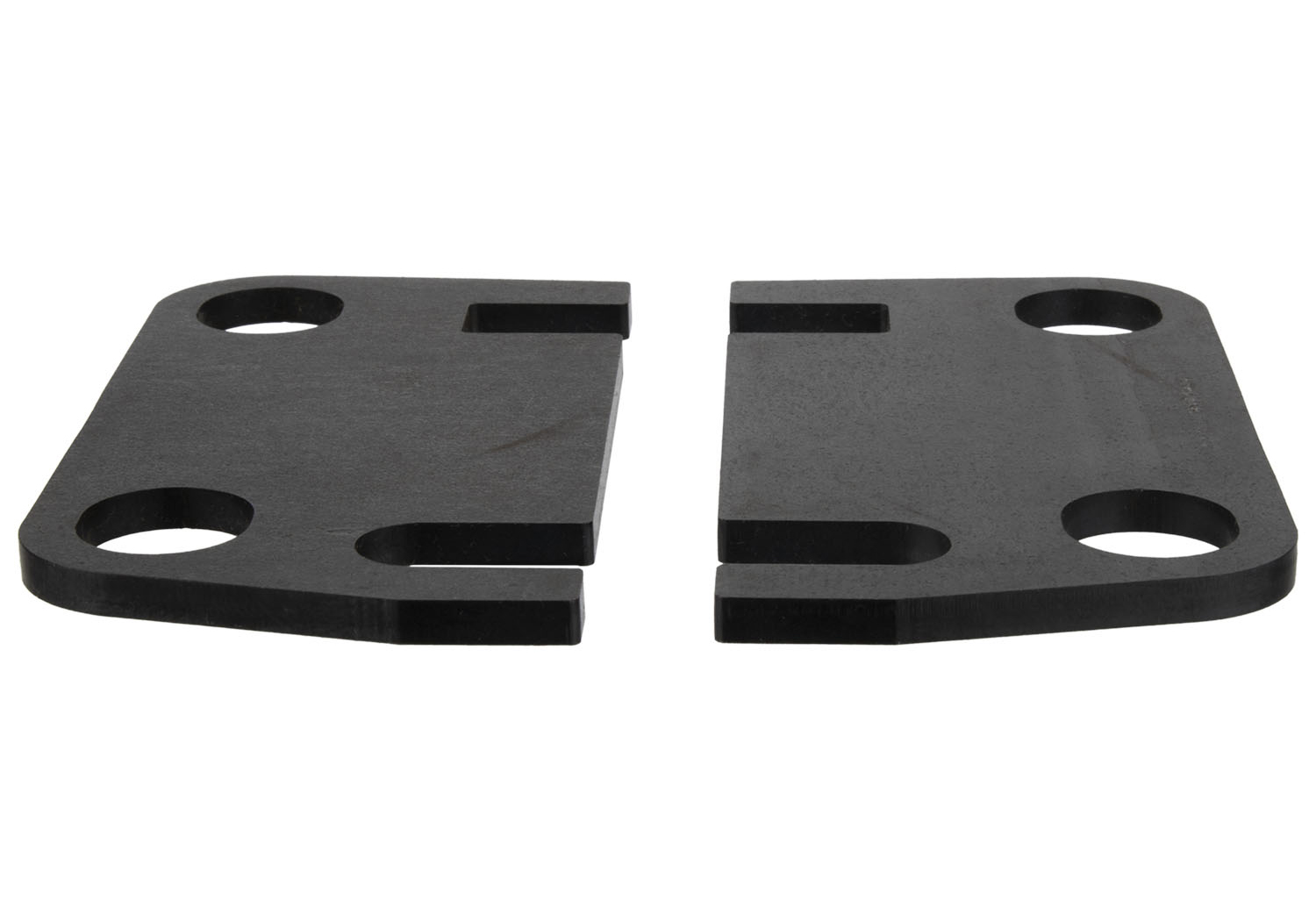

VALVE PUSHROD GUIDEPLATE

VALVE PUSHROD GUIDEPLATE
M-6566-Z304D
Retail
$57.00
Sold in Units of
Each (1)
Instruction Sheet
Not Available

WARNING:
This part has been designed and is intended for off-highway application only. Installation of this part on a vehicle that is driven on public roads may violate U.S. and Canadian laws and regulations relating to emission requirements and motor vehicle safety standards.
Proudly Made in the USA
    (SOLD IN PKG. OF 8) See page 226 for installation instructions. Use with mechanical cams, threaded stud, adjustable (non-rail) rocker arms and hardened push rods. May require modification for use with roller rocker arms.
    PART NUMBERCYLINDER HEADPUSH ROD DIAMETER
    M-6566-D311289/302/351W.3125"
    M-6566-D351M-6049-N351/N352.3125"
    M-6566-SCJM-6049-SCJ/SCJA/SCJB.375"
    M-6566-Z304DM-6049-Z304D/Z304DA.3125"
Part Type
Engine: Cylinder Heads
Warranty Availability
Not Available
Packaged Dimensions
3" x 3" x 3
Packaged Weight
1 lb(s)
Part Type
Engine: Cylinder Heads
UPC Code
756122092989
Country of Origin
United States
California Executive Order
No
