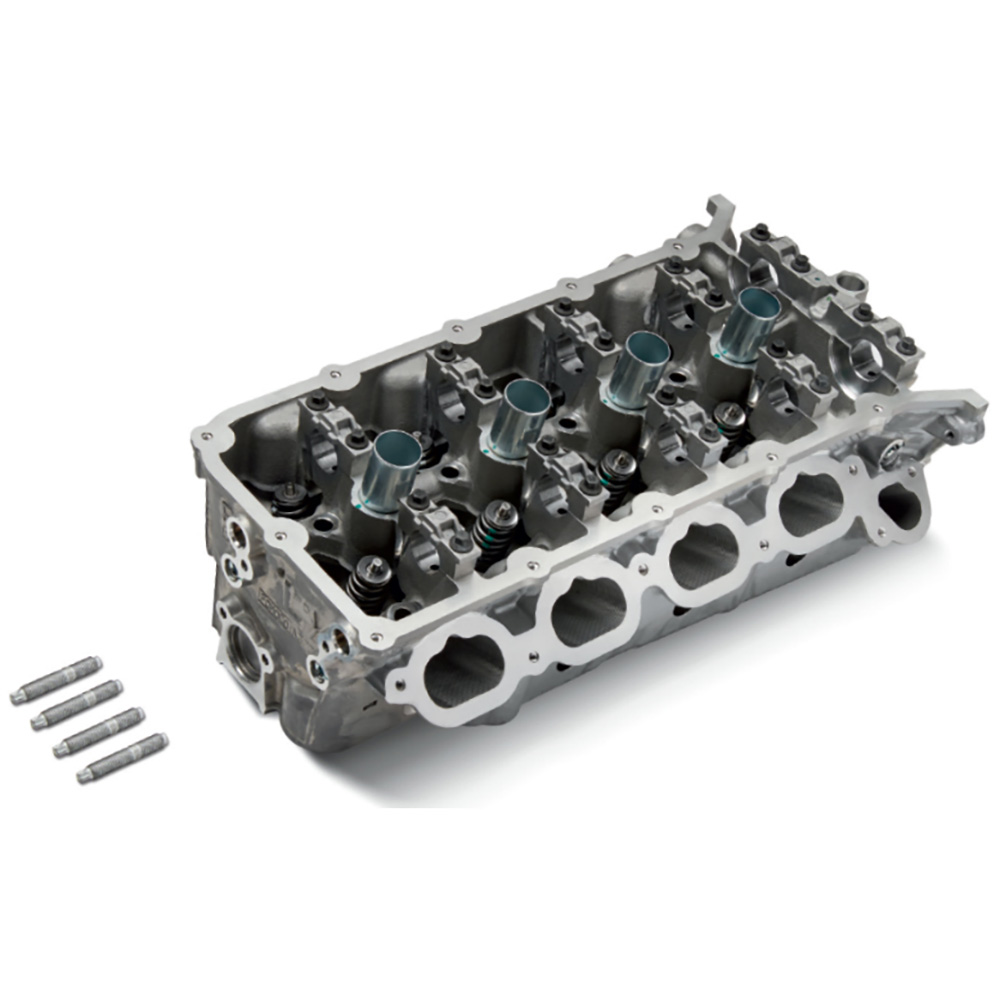

5.2L "GEN 3" LH CYLINDER HEAD
M-6050-M52B
Retail
$2,440.00
Sold in Units of
Each (1)
Instruction Sheet
Not Available
This part is in your Wish List
This part has been added to your Wish List
ATTENTION:
This part is intended as a replacement part for use only in the application(s)
identified in the product description. Installation of this part in a vehicle for
which it is not intended may violate U.S. and Canadian laws and regulations related
to motor vehicle emissions.
Rev up your engine's potential with the 5.2L "GEN 3" LH Cylinder Head, designed for ultimate performance and durability. Featuring larger valves and fully CNC ported passages, this powerhouse component boosts horsepower and enhances cooling for high-performance builds.
- Upgraded version of Ford Performance M-6050-M52A 5.2L cylinder head
- Production 2021 GT500 LH cylinder head
- Improved high-performance 5.2L head castings provide added strength and increased size of central cooling passages, to support higher horsepower engine builds
-
Fully CNC ported intake ports, exhaust ports, and combustion chamber
- Larger port sizing than the 2015-2017 5.0L Coyote cylinder heads
- 38.2mm intake valve and 32.5mm exhaust valve
- For reference, 2015-2017 5.0L Coyote valve sizes are 37.3mm intake, 31.8mm exhaust
- New valvetrain geometry allows for higher valve lift
- Lightweight hollow-stem intake valves and sodium-filled exhaust valves
- Stiffer exhaust springs
- Upgraded valve guides
- Upgraded exhaust valve seats
- Loaded head assembly minus camshafts, rocker arms and lash adjusters
- Use on a 5.0L Coyote requires unique camshaft due to valvetrain geometry, see M-6550-M52 or M-6550-M52A
- Requires 5.2L rocker arms and lash adjusters, see M-6564-M52
- Installation of 5.2L heads on 5.0L engine requires piston modification for proper piston to valve clearance
- For RH cylinder head see M-6049-M52B
Part Type
Engine: Cylinder Heads
Warranty Availability
Package Dimensions
22" x 11" x 13"
Package Weight
42 lb(s)
UPC Code
756122015988
Country of Origin
Canada
