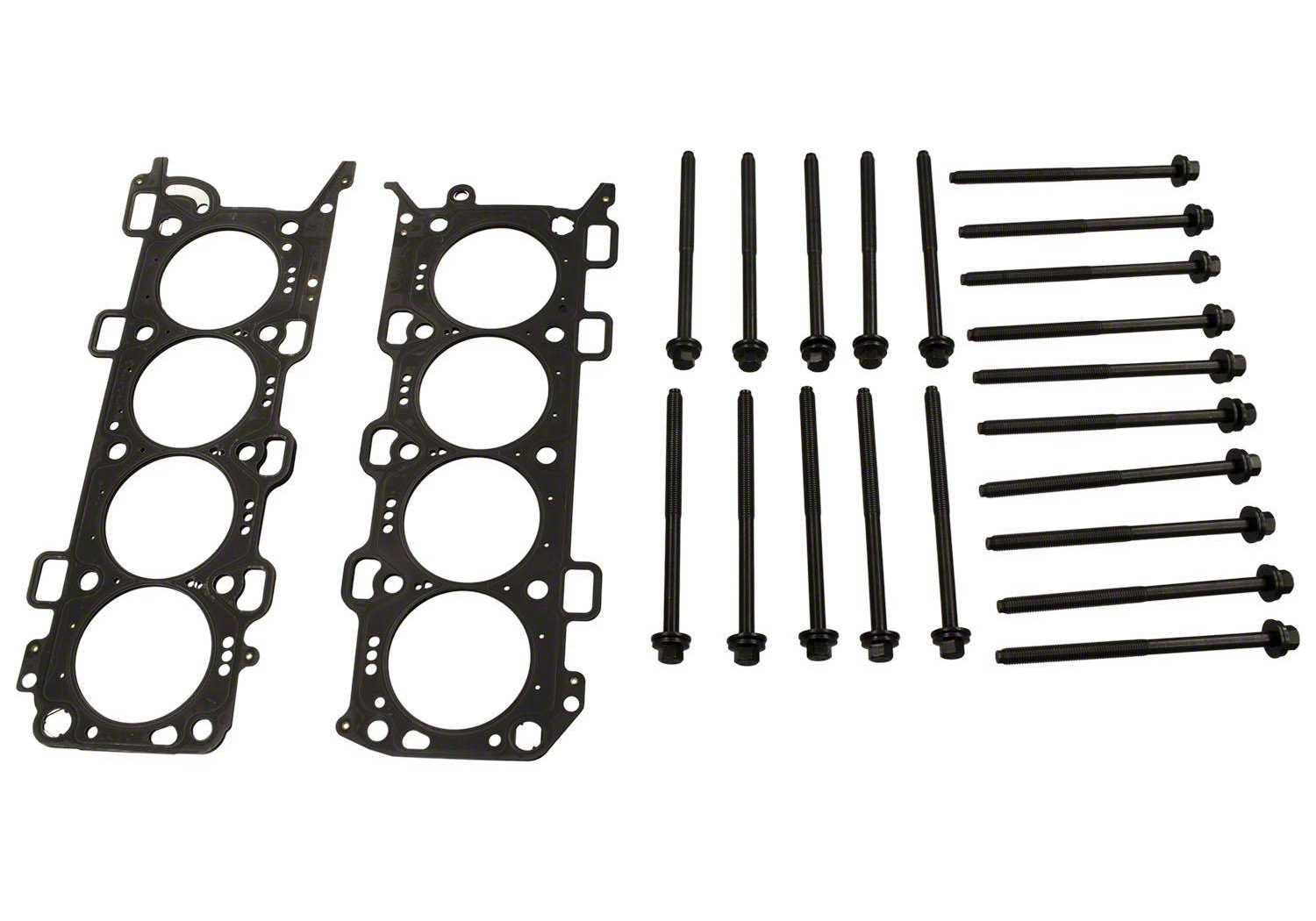

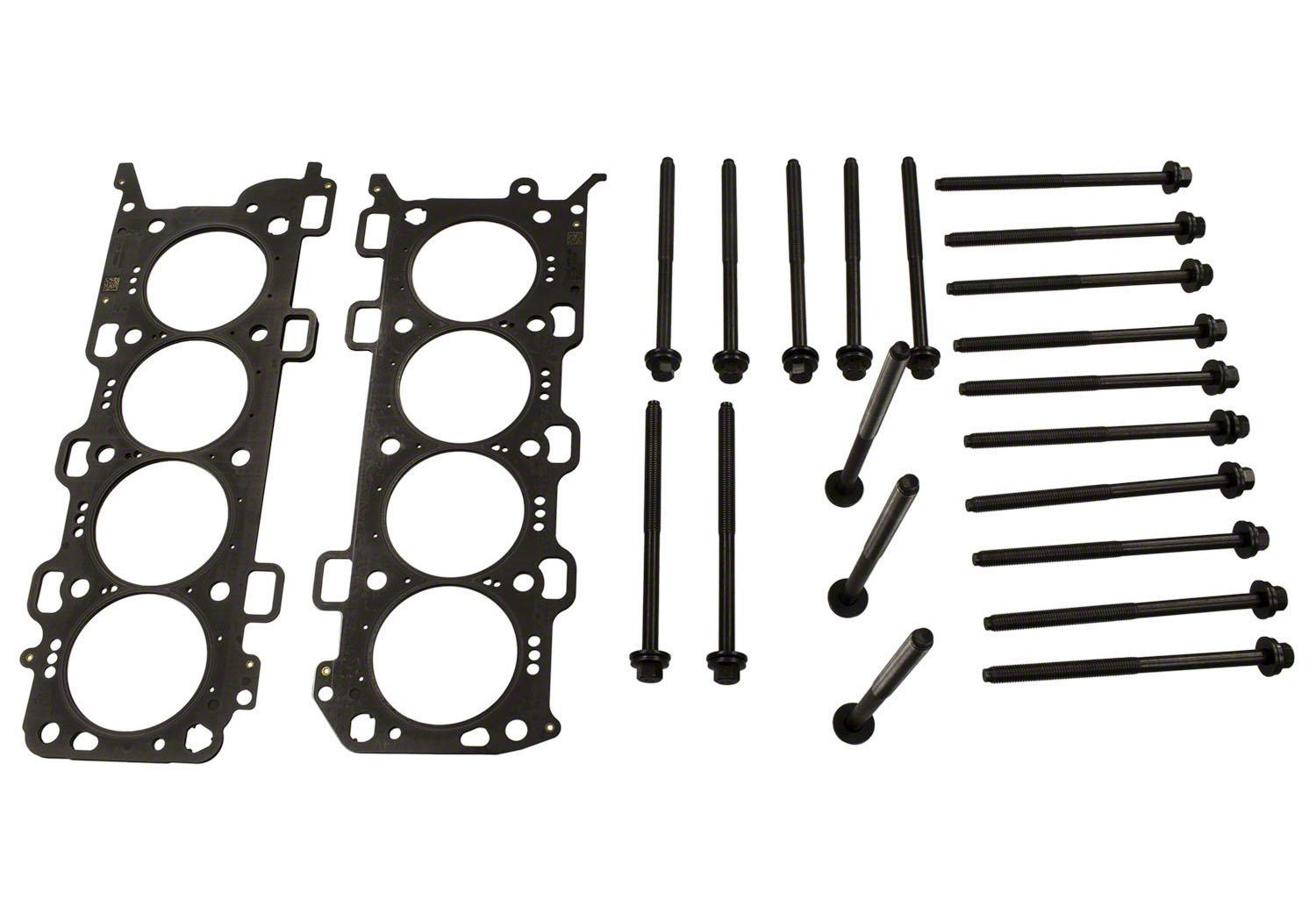

5.2L "GEN 2" HEAD CHANGING KIT

Proudly Made in the USA
  • Head changing kit allows installation of 5.2L Coyote cylinder heads on 5.2L block-see tech notes below
  • Fits Ford Performance M-6010-M52A "Gen 2" 5.2L Coyote Aluminum Engine Block and M-6010-M52B 5.2L Coyote Aluminum Engine Block

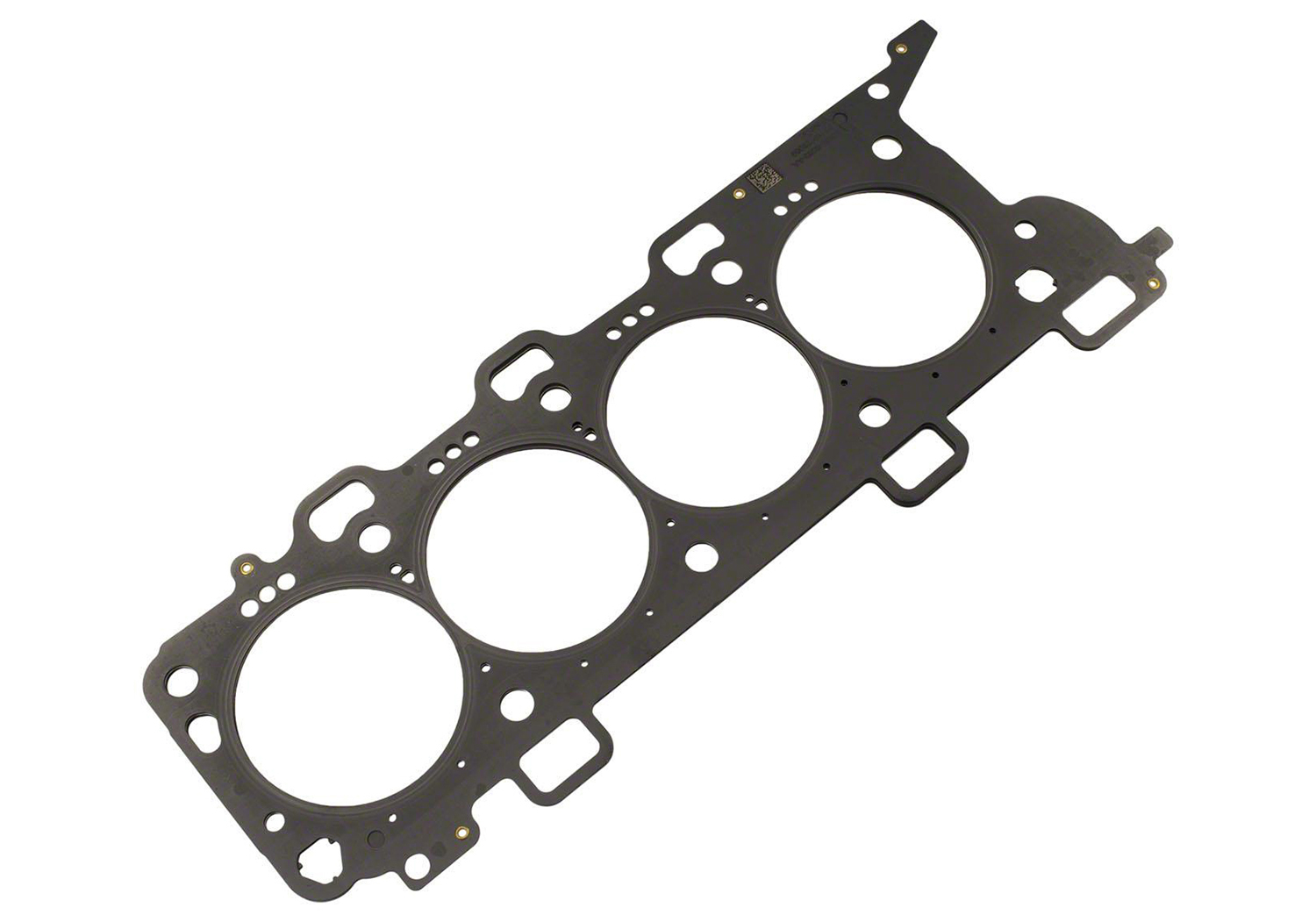

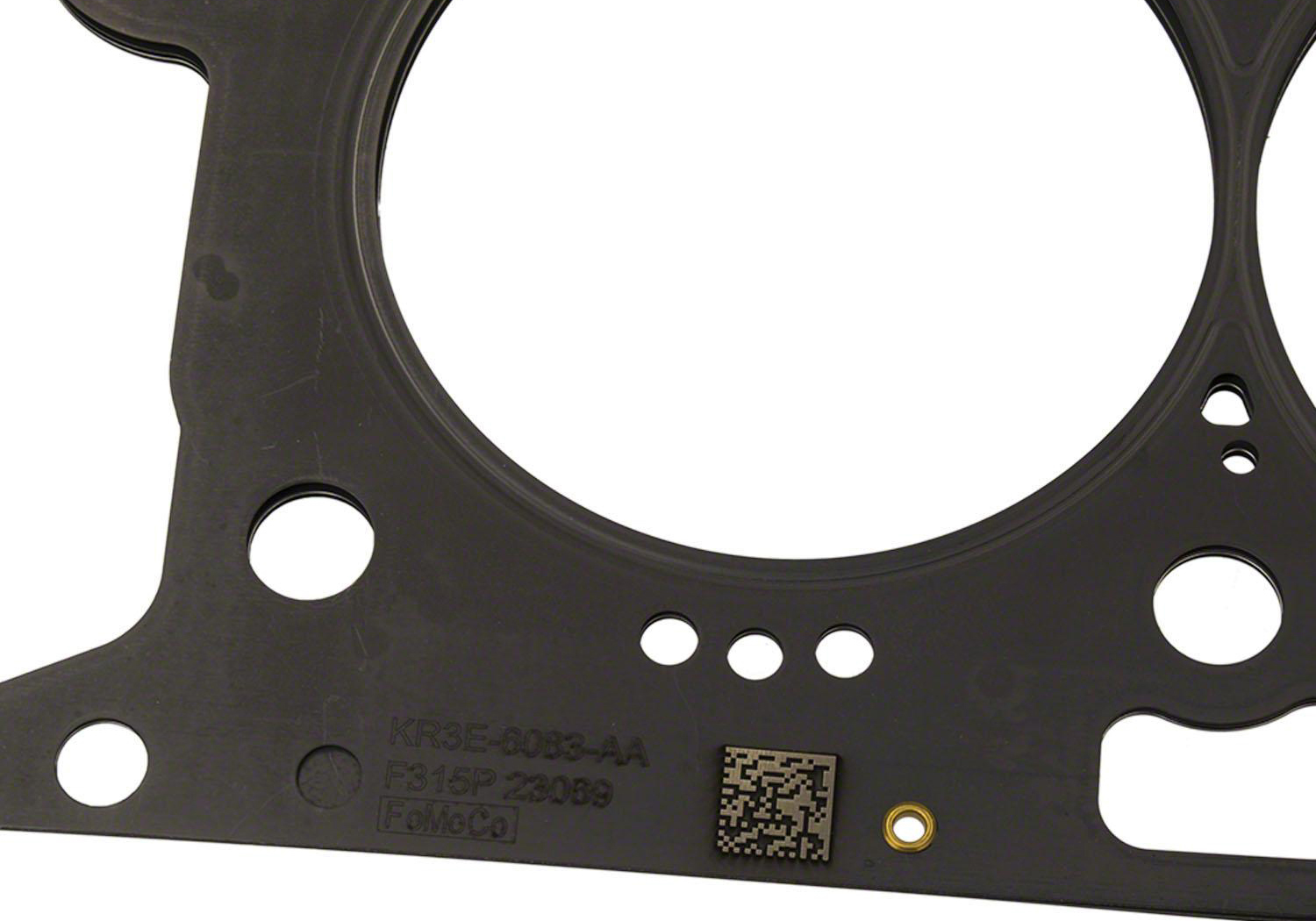

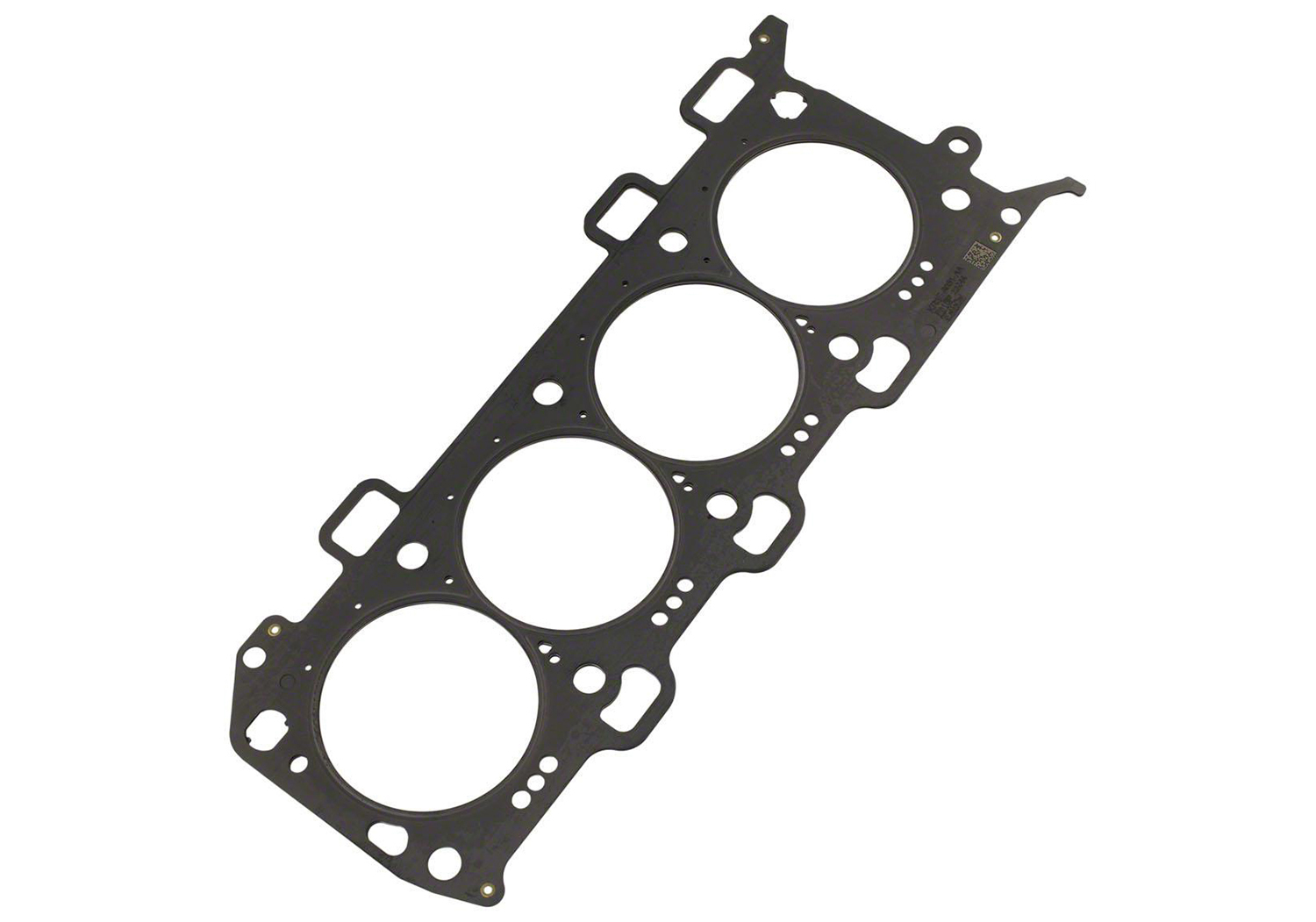

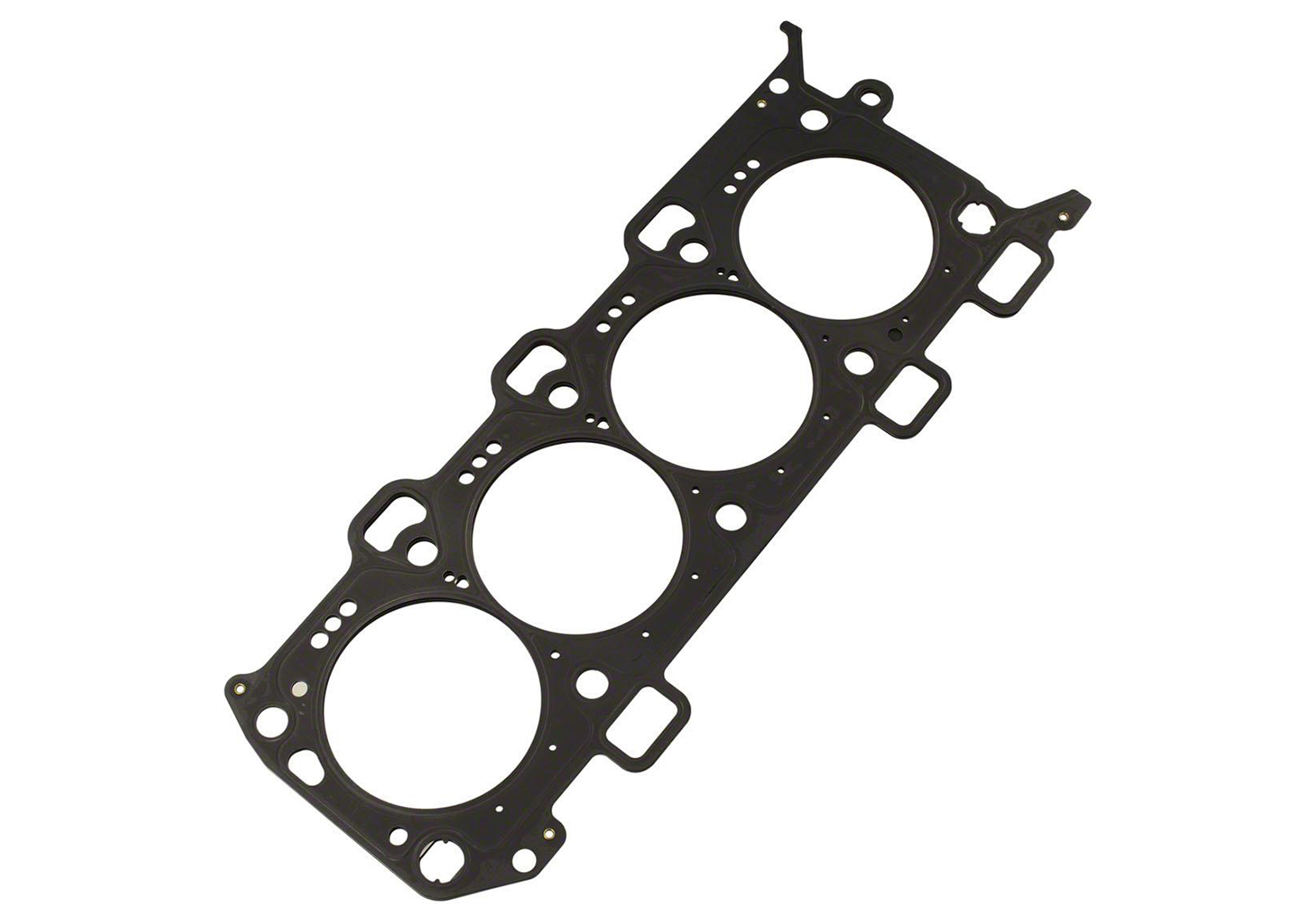

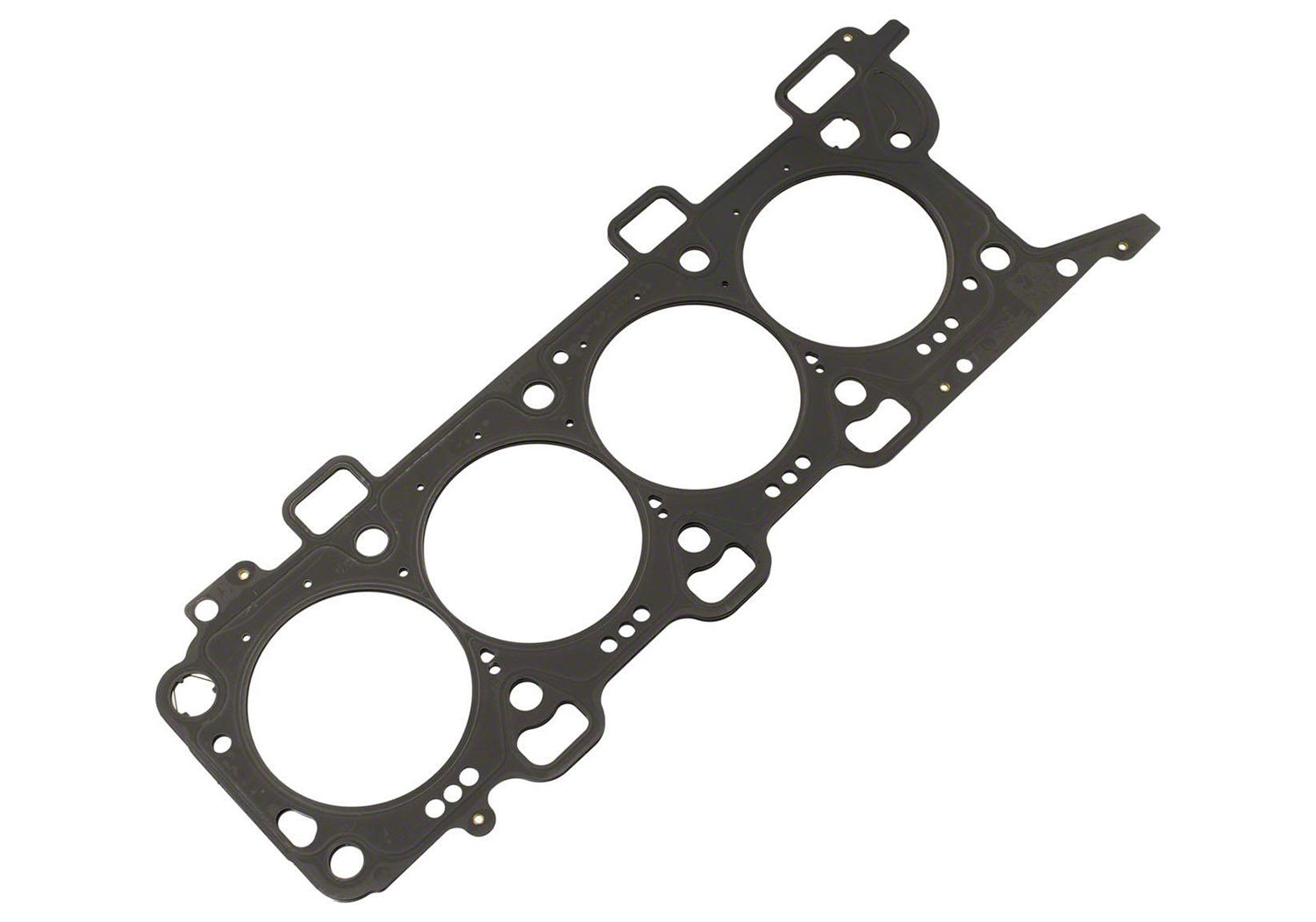

  • Includes multi-layer steel head gaskets

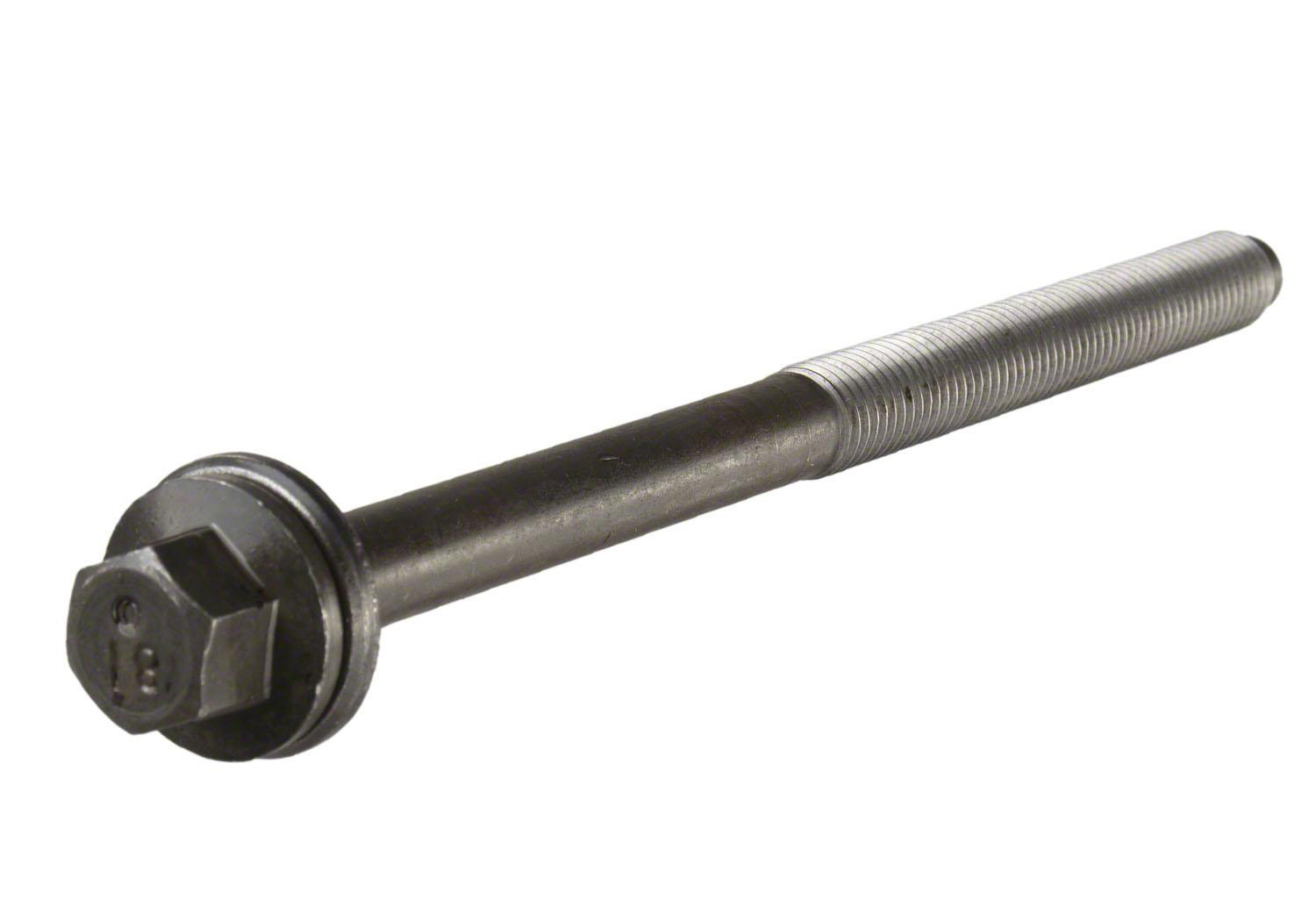

  • Includes increased length, 12mm head bolts provide greater clamping force than previous 5.2L bolts
  • Kit includes 20 high strength torque to yield bolts
  • 187mm long
Notes:
  •  Does not fit 2015-2018 5.2L or Ford Performance M-6010-M52 Engine Blocks, see M-6067-M52 (131mm long)
Part Type
Engine: Cylinder Heads
Warranty Availability
Not Available
Packaged Dimensions
12" x 3" x 19.5
Packaged Weight
9.7 lb(s)
UPC Code
756122011799
Country of Origin
United States
