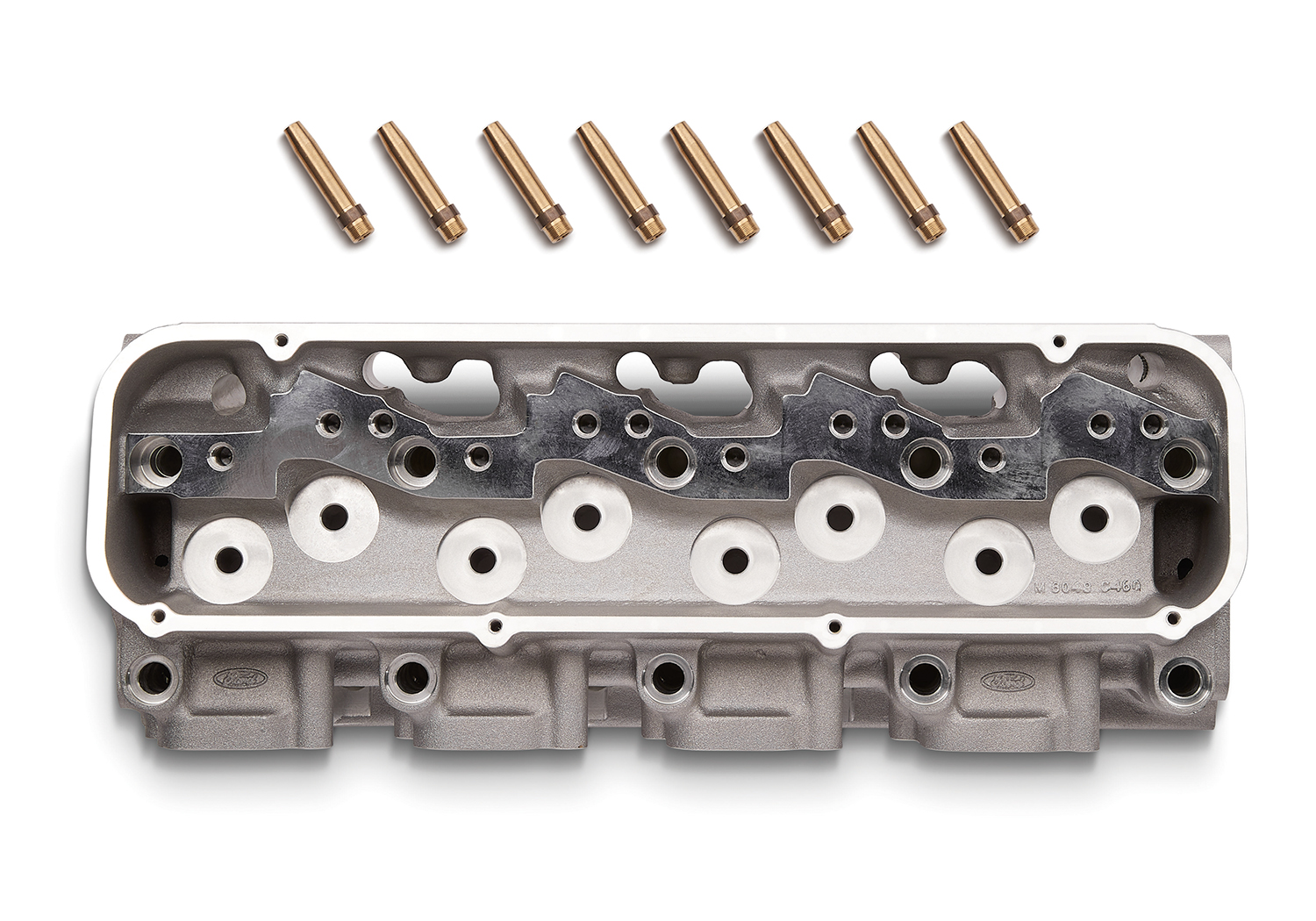

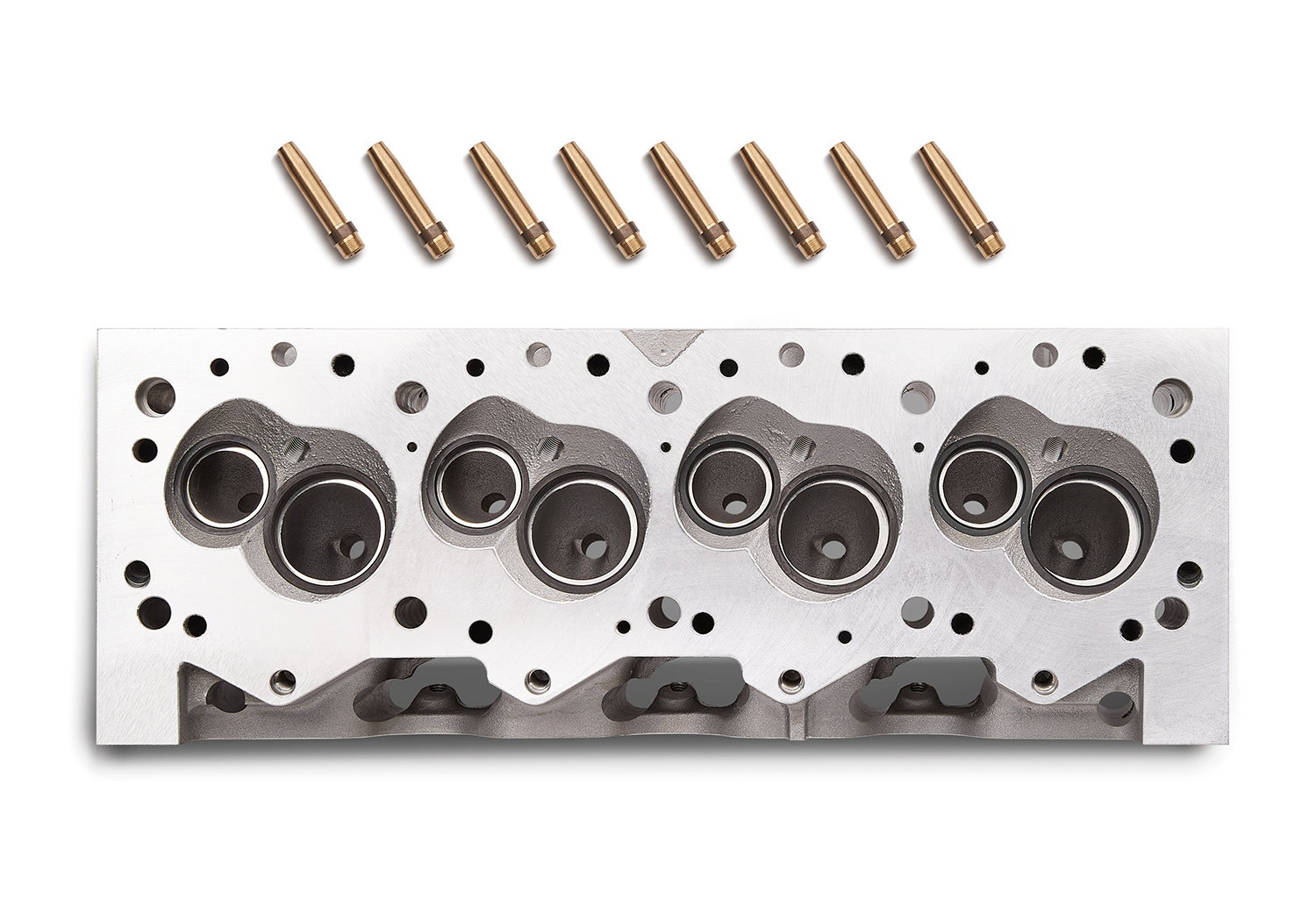

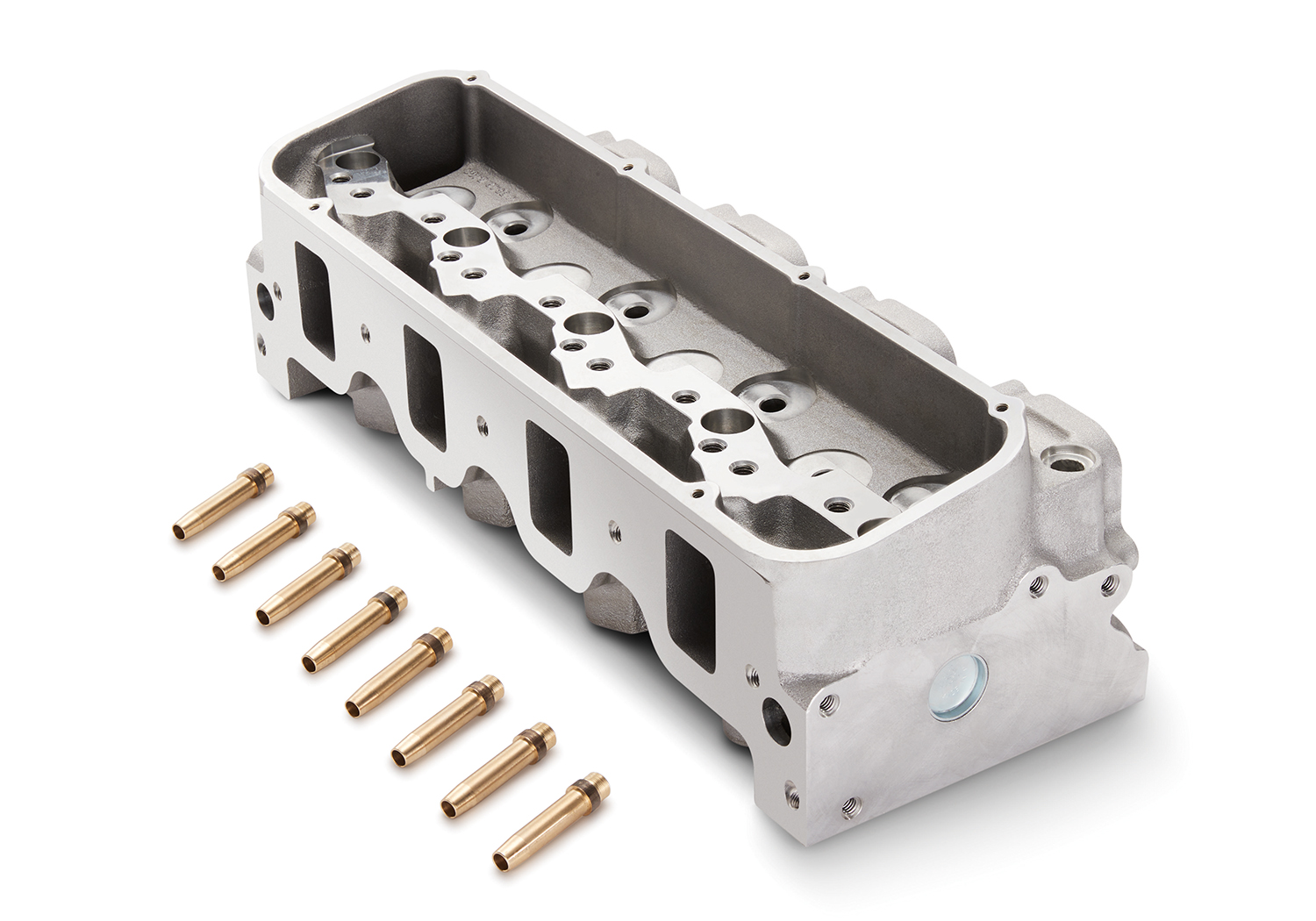

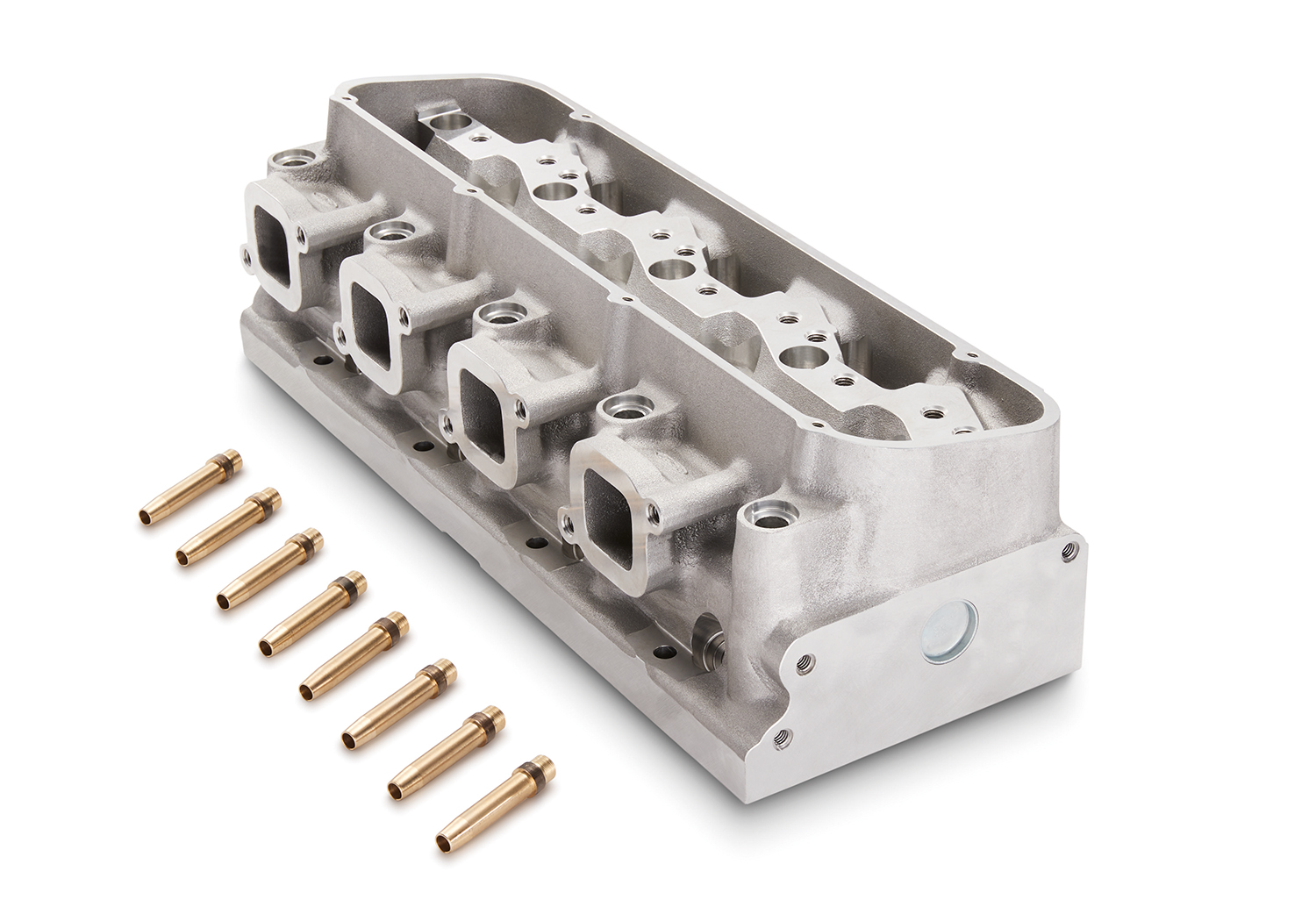

FORD PERFORMANCE 460 "SPORTSMAN" WEDGE-STYLE CYLINDER HEADS

FORD PERFORMANCE 460 "SPORTSMAN" WEDGE-STYLE CYLINDER HEADS
FORD PERFORMANCE 460 "SPORTSMAN" WEDGE-STYLE CYLINDER HEADS
FORD PERFORMANCE 460 "SPORTSMAN" WEDGE-STYLE CYLINDER HEADS
FORD PERFORMANCE 460 "SPORTSMAN" WEDGE-STYLE CYLINDER HEADS
FORD PERFORMANCE 460 "SPORTSMAN" WEDGE-STYLE CYLINDER HEADS
  • For use with M-6010-A460 Ford Performance cylinder block
  • Used for professional competition and serious "Sportsman" racers
  • Made from 356-T6 aluminum, with bronze valve guides and a premium valve seat insert material compatible with titanium valves
  • Valve angles are 7.5 degrees intake, 8.0 degrees exhaust with no side cant
  • Raised intake and exhaust ports
  • 65cc wedge-style combustion chamber
  • 4.600" recommended bore size (4.500" minimum)
  • 2.450" intake, 1.900" exhaust recommended diameters
  • Port and combustion chamber design based on Ford Performance 351 "Yates" cylinder head
Part Type
Engine: Cylinder Heads
Instruction Sheet
Warranty Availability
Not Available
Package Dimensions
9.25" x 8.5" x 23"
Package Weight
43.13 lb(s)
UPC Code
756122604137
Country of Origin
United States
