2.0L ECOBOOST HEAD INDIVIDUAL PORT
This part is no longer available.
M-6049-20EBIP
Instruction Sheet
Not Available
WARNING:
This part is designed and intended for competition use only or off-highway use only. It should not be installed on a vehicle that is driven on public roads and highways. Installation of this part on a vehicle driven on public roads and highways is likely to violate U.S. and Canadian laws and regulations relating to motor vehicle emissions.

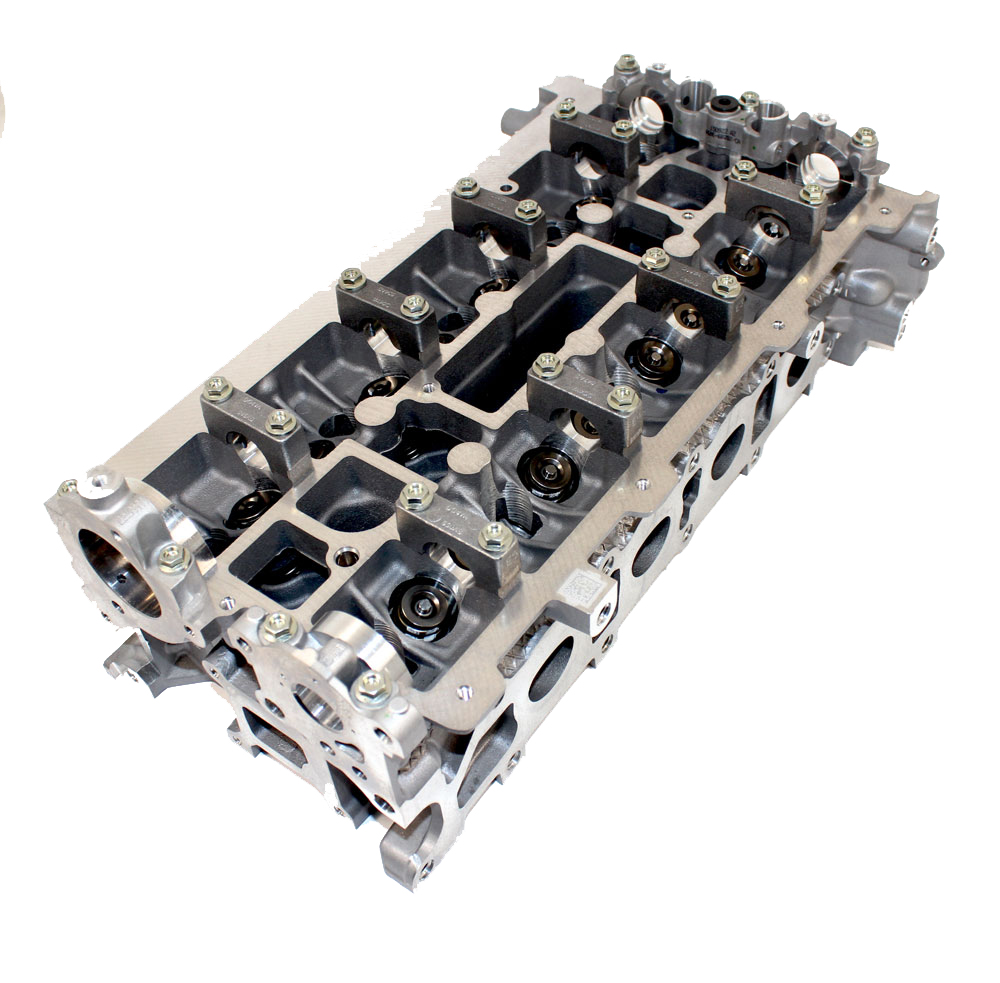

Cylinder head for the 2.0L EcoBoost engine as used in the European market
-
Features individual exhaust ports
-
Intended for higher horsepower custom engine builds
-
Head comes assembled with valves and springs
-
Intake Valve Size 32.5mm
-
Exhaust Valve size 28mm (2.3L = 30mm)
-
Combustion chamber size – 42.2cc nominal
-
No camshaft or roller followers included
-
Production intake from all 2.0L and 2.3L engines will fit
-
Requires custom exhaust manifold
-
Designed with direct injection fuel system features
-
Uses 2.0L EU head gasket (AG9Z-6051-A)
-
Oil drainback passage modifications are necessary to use this head on the 2.3L Mustang EcoBoost block. Contact Ford Performance Techline for instructions.
Part Type
Engine: Cylinder Heads
Warranty Availability
Not Available
Package Dimensions
24.25" x 12.5" x 18"
Package Weight
42.7 lb(s)
UPC Code
756122003992
Country of Origin
Spain
