2015-2017 MUSTANG GT 5.0L COYOTE CYL HEAD RH
This part is no longer available.
M-6049-M50A
Instruction Sheet
Not Available
ATTENTION:
This part is intended as a replacement part for use only in the application(s)
identified in the product description. Installation of this part in a vehicle for
which it is not intended may violate U.S. and Canadian laws and regulations related
to motor vehicle emissions.
-

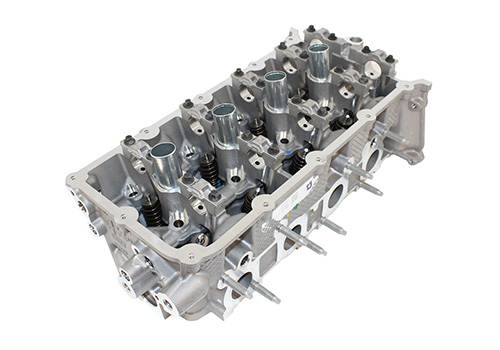

Production 2015-17 RH Mustang GT 5.0L Gen 2 Coyote aluminum cylinder head
-
Improved flow compared to the 2011-14 5.0L cylinder head
-
Will fit 2011-14 Coyote engines with minor intake manifold modification and the use of 2015-17 head gaskets. Use head changing kit M-6067-M50 for 2013-14 blocks with 11mm head bolts
-
Finished machined cylinder head ready to install
-
196cc intake port volume
-
31.8mm exhaust valve
-
37.3mm intake valve
-
Includes intake and exhaust valves, springs and retainers
-
Does not include cams, rocker arms M-6564-M50 or lash adjusters M-6500-M50
Part Type
Engine: Cylinder Heads
Warranty Availability
Not Available
Package Dimensions
12.25" x 9.75" x 22"
Package Weight
42.55 lb(s)
UPC Code
756122002926
Country of Origin
Canada
