COYOTE GT350 CYLINDER HEAD RH

This part is no longer available.
COYOTE GT350 CYLINDER HEAD RH
COYOTE GT350 CYLINDER HEAD RH
COYOTE GT350 CYLINDER HEAD RH
COYOTE GT350 CYLINDER HEAD RH
COYOTE GT350 CYLINDER HEAD RH
M-6049-M52
Instruction Sheet
Available (PDF)
ATTENTION:
This part is intended as a replacement part for use only in the application(s) identified in the product description. Installation of this part in a vehicle for which it is not intended may violate U.S. and Canadian laws and regulations related to motor vehicle emissions.
Proudly Made in Canada

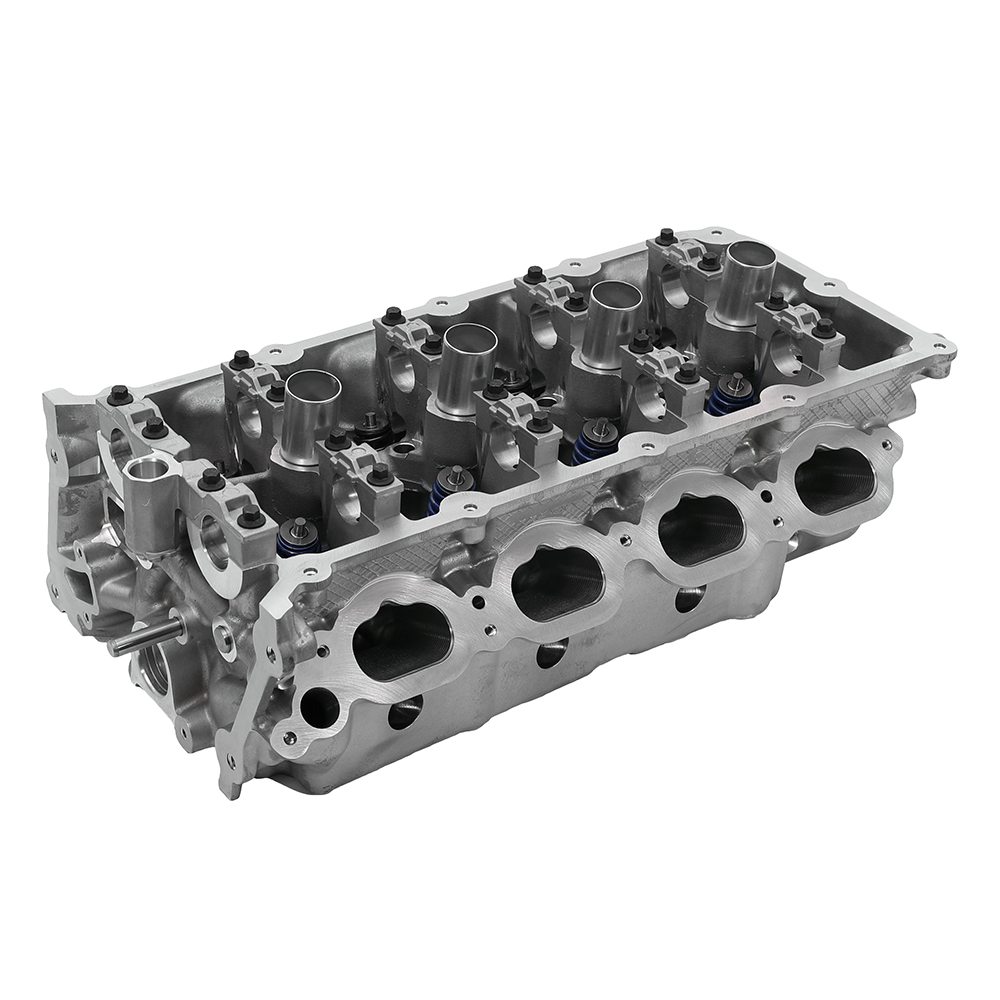

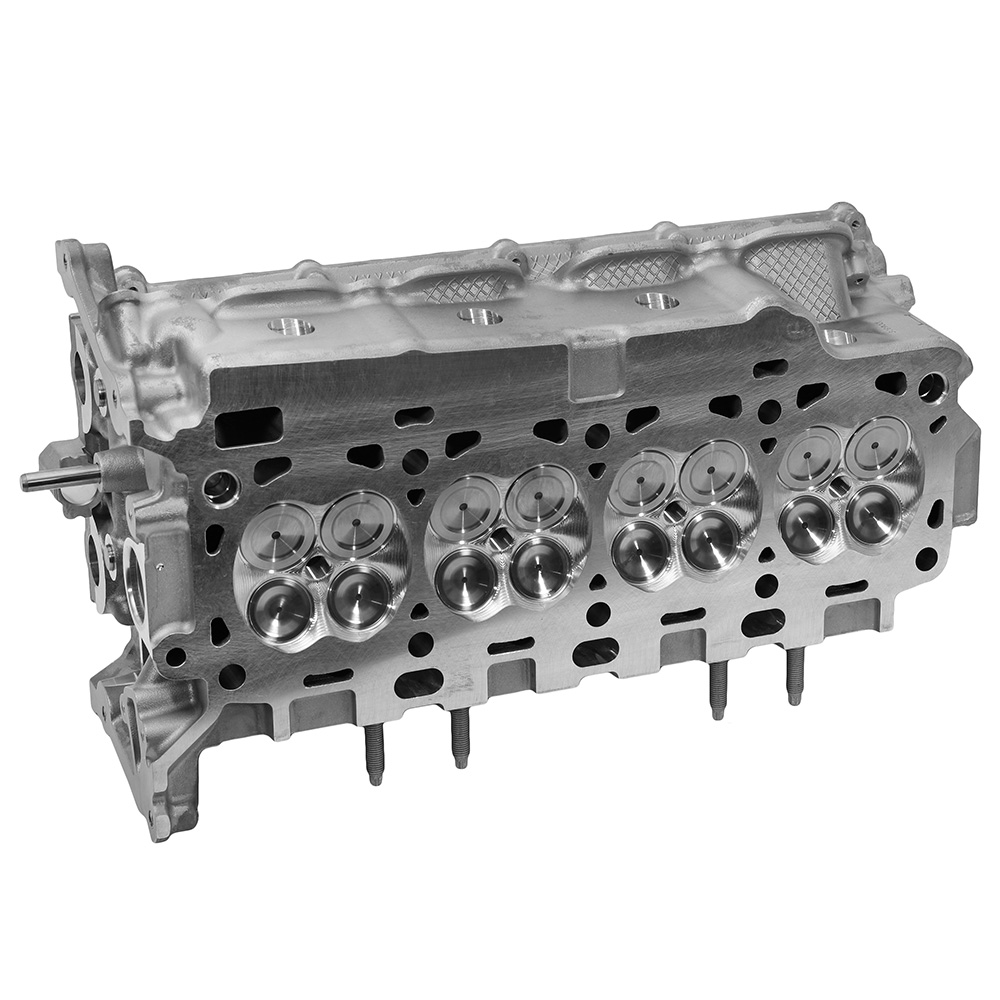

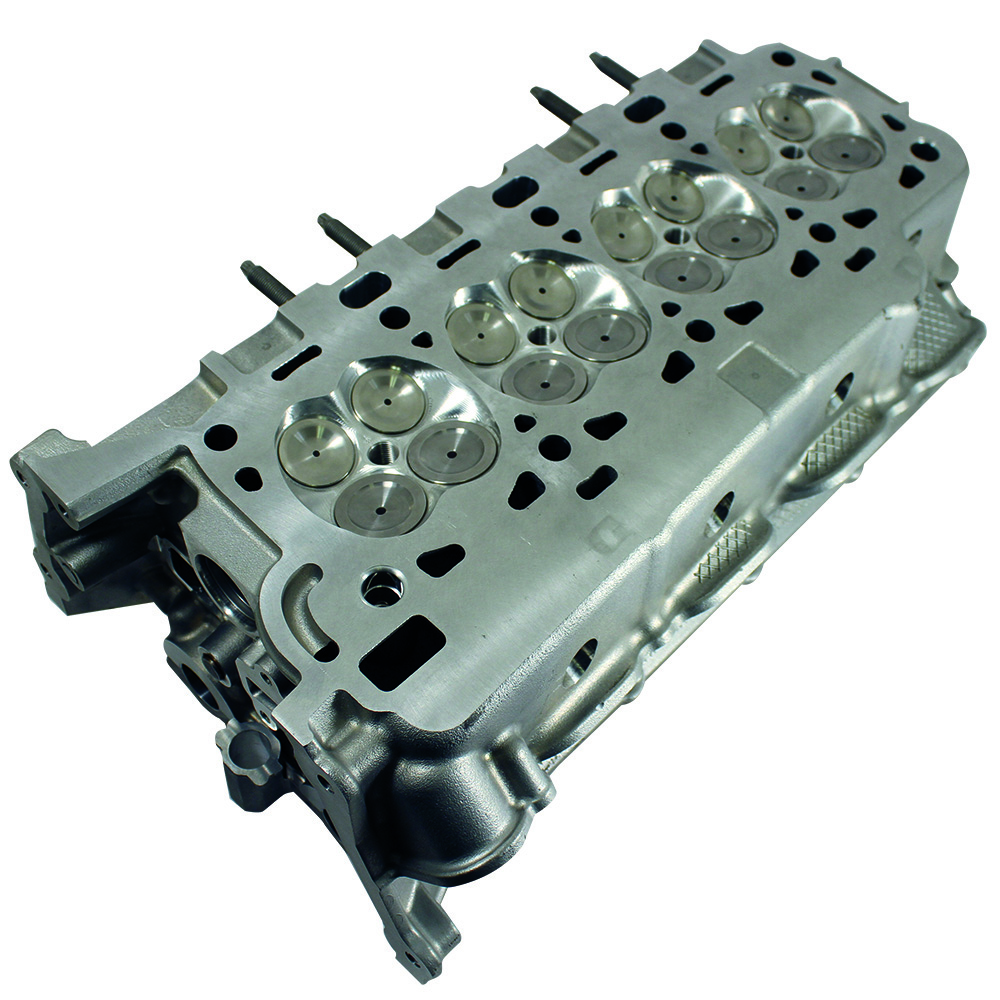

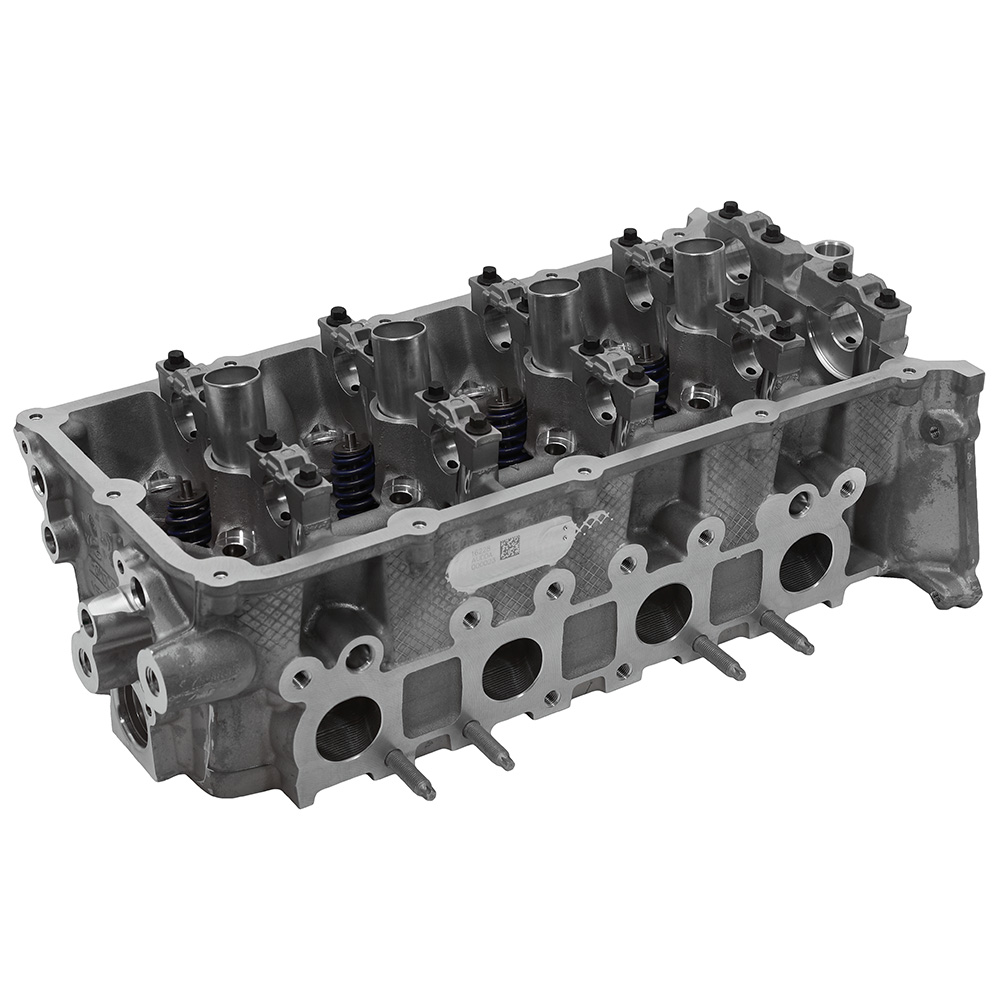

  • Production right hand cylinder head for the 5.2L GT350
  • Fully CNC ported intake ports, exhaust ports and combustion chamber
  • Larger port sizing than the 2015-2017 5.0L Coyote cylinder heads
  • 38.3mm intake valve and 32.5mm exhaust valve
  • For reference, 2015-2017 5.0L Coyote valve sizes are 37.3mm intake, 31.8mm exhaust
  • New valvetrain geometry allows for higher valve lift
  • Lightweight hollow-stem intake valves and sodium-filled exhaust valves
  • Loaded head assembly minus camshafts, rocker arms and lash adjusters
  • To use on 5.0L Coyote requires unique camshaft due to valvetrain geometry, see M-6550-M52 or M-6550-M52A
    • Installation of 5.2L heads on 5.0L engine requires piston modification for proper piston to valve clearance.
  • Requires 5.2L rocker arms and lash adjusters, see  M-6564-M52

Part Type
Engine: Cylinder Heads
Instruction Sheet
Warranty Availability
Not Available
Package Dimensions
12.25" x 9.75" x 22"
Package Weight
41.4 lb(s)
UPC Code
756122003060
Country of Origin
Canada
