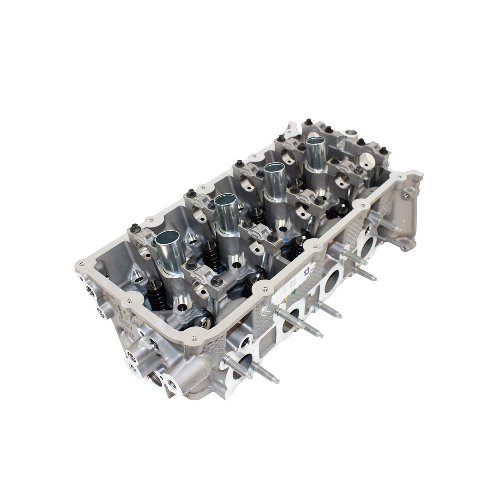

2015-2017 MUSTANG COYOTE 5.0L CYLINDER HEAD LH

2015-2017 MUSTANG COYOTE 5.0L CYLINDER HEAD LH
2015-2017 MUSTANG COYOTE 5.0L CYLINDER HEAD LH
2015-2017 MUSTANG COYOTE 5.0L CYLINDER HEAD LH
2015-2017 MUSTANG COYOTE 5.0L CYLINDER HEAD LH
2015-2017 MUSTANG COYOTE 5.0L CYLINDER HEAD LH
Proudly Made in Canada
  • Production 2015-2017 LH Mustang GT 5.0L Gen 2 Coyote aluminum cylinder head
  • Improved flow compared to the 2011-14 5.0L cylinder head
  • Will fit 2011-14 Coyote engines with minor intake manifold modification and the use of 2015-17 head gaskets. Use head changing kit M-6067-M50 for 2013-14 blocks with 11mm head bolts
  • Finished machined cylinder head ready to install
  • 196cc intake port volume
  • 31.8mm exhaust valve
  • 37.3mm intake valve
  • Includes intake and exhaust valves, springs and retainers
  • Does not include cams, rocker arms M-6564-M50 or lash adjusters M-6500-M50
Part Type
Engine: Cylinder Heads
Warranty Availability
Not Available
Package Dimensions
14.75" x 12.3" x 27.75"
Package Weight
45.3 lb(s)
UPC Code
756122002933
Country of Origin
Canada
