GEN 4 5.0L COYOTE DARK HORSE™ LONG BLOCK

GEN 4 5.0L COYOTE DARK HORSE™ LONG BLOCK
GEN 4 5.0L COYOTE DARK HORSE™ LONG BLOCK
GEN 4 5.0L COYOTE DARK HORSE™ LONG BLOCK
M-6006-M50DH
Retail
$7,750.00
Sold in Units of
Each (1)
Instruction Sheet
Not Available
Sign in to add to wish list
ATTENTION:
This part is intended as a replacement part for use only in the application(s) identified in the product description. Installation of this part in a vehicle for which it is not intended may violate U.S. and Canadian laws and regulations related to motor vehicle emissions.

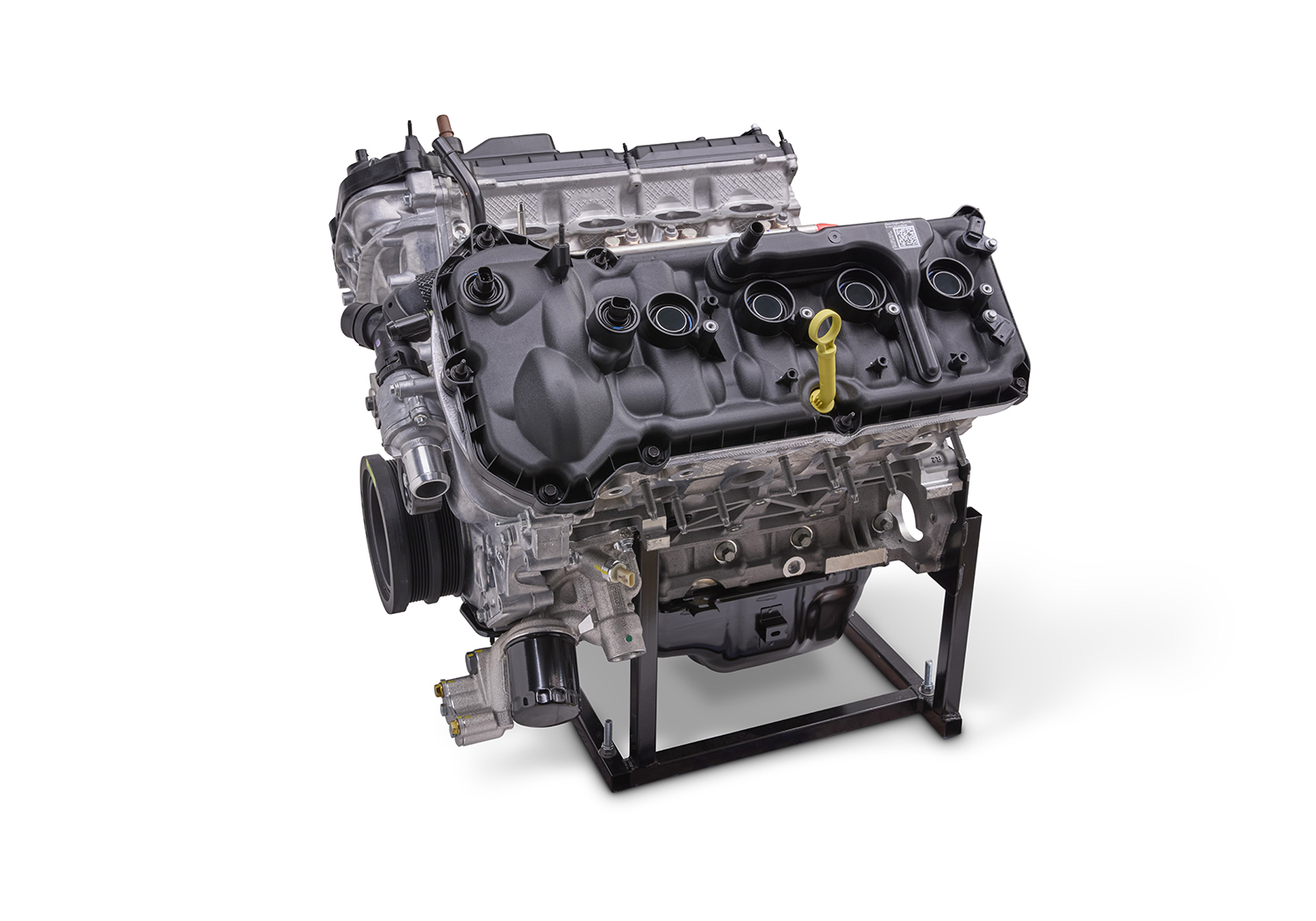

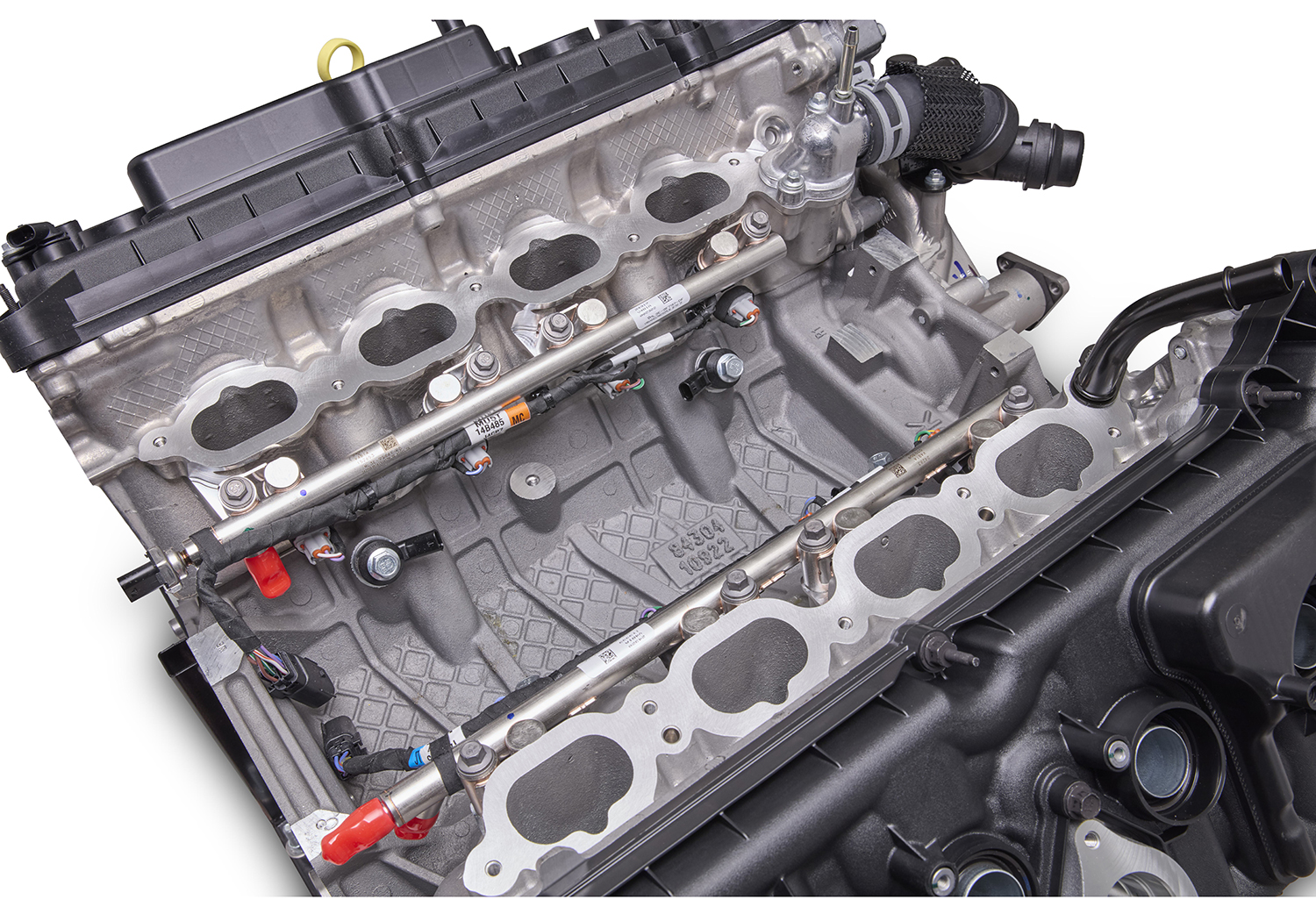

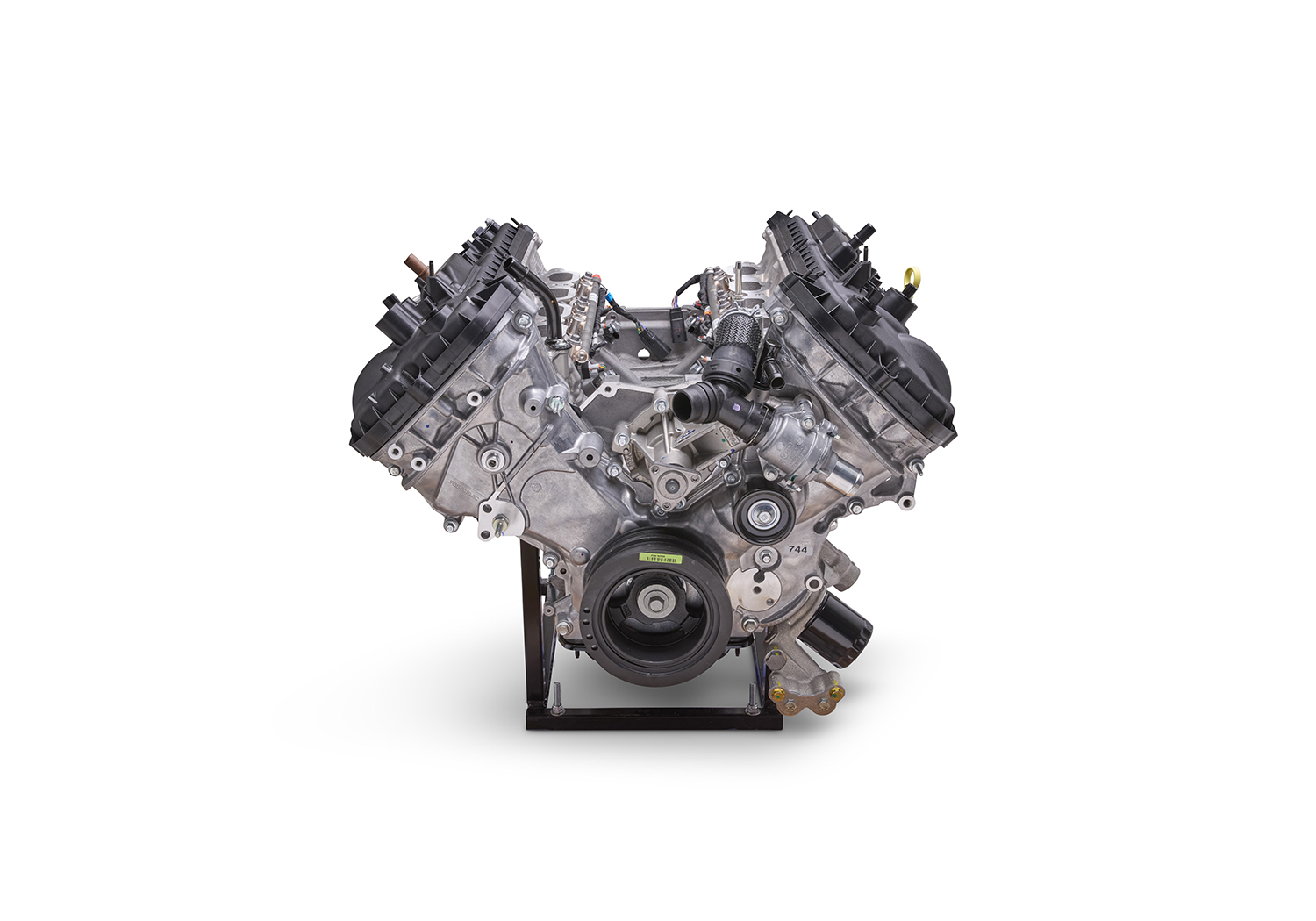

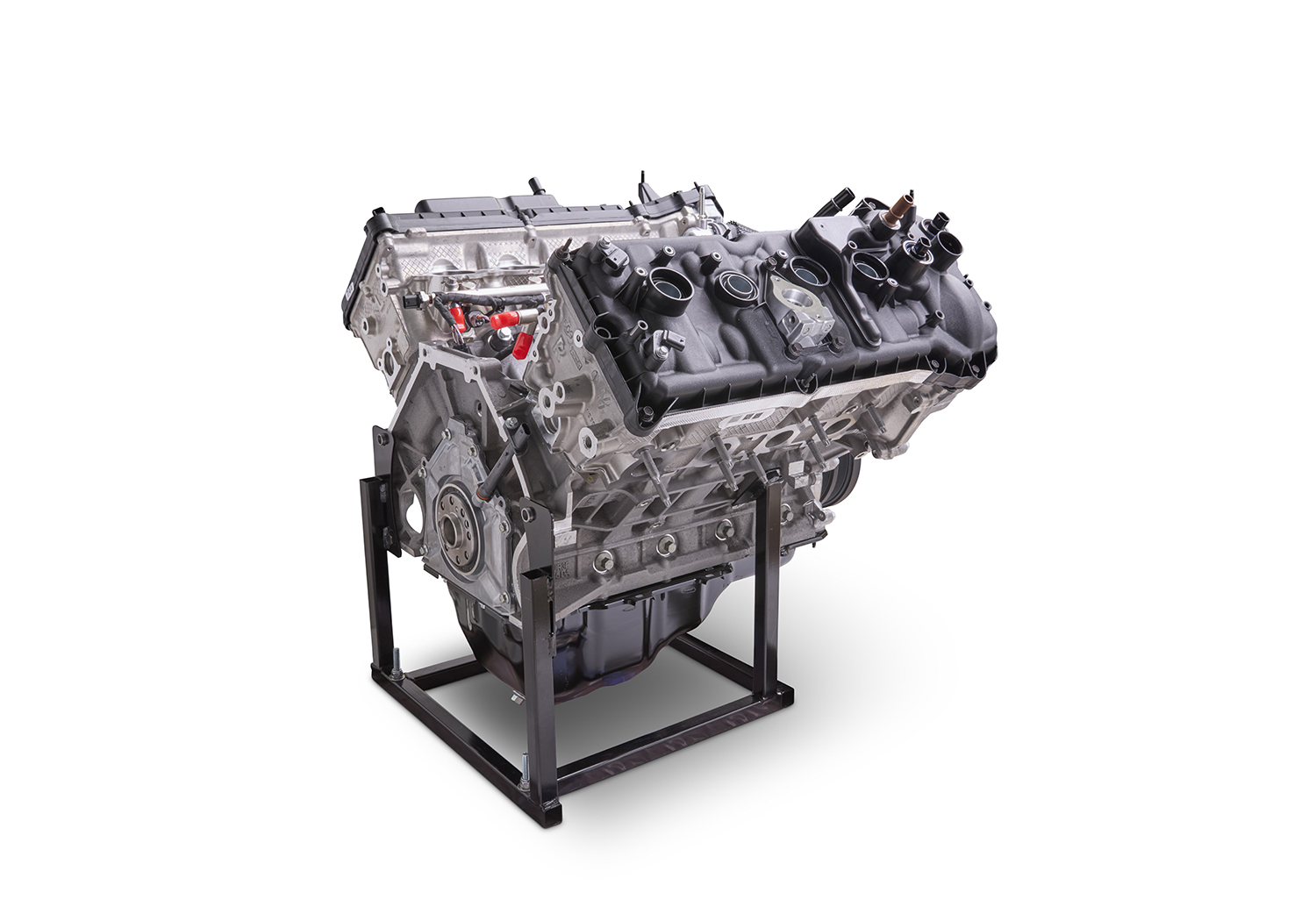

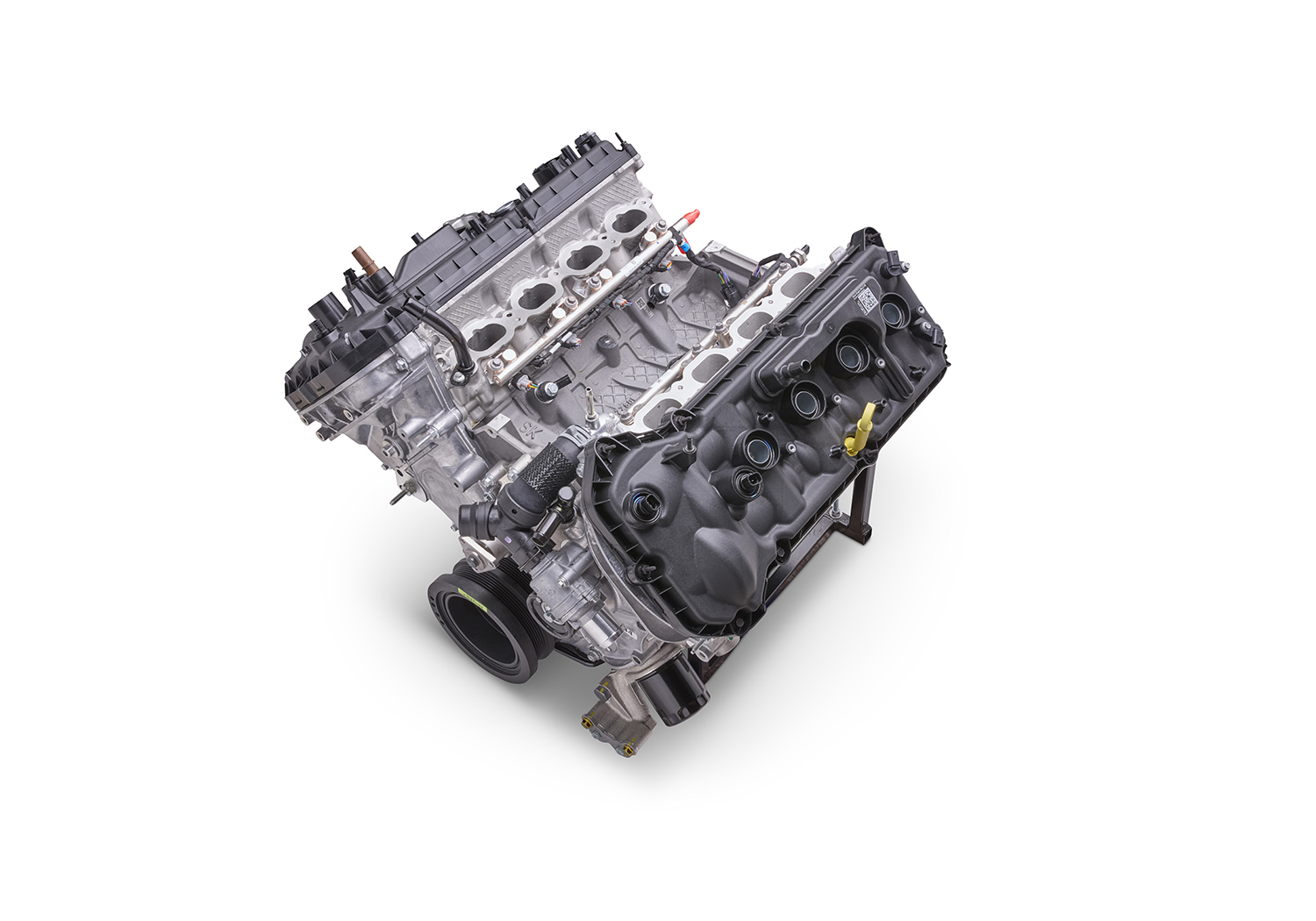

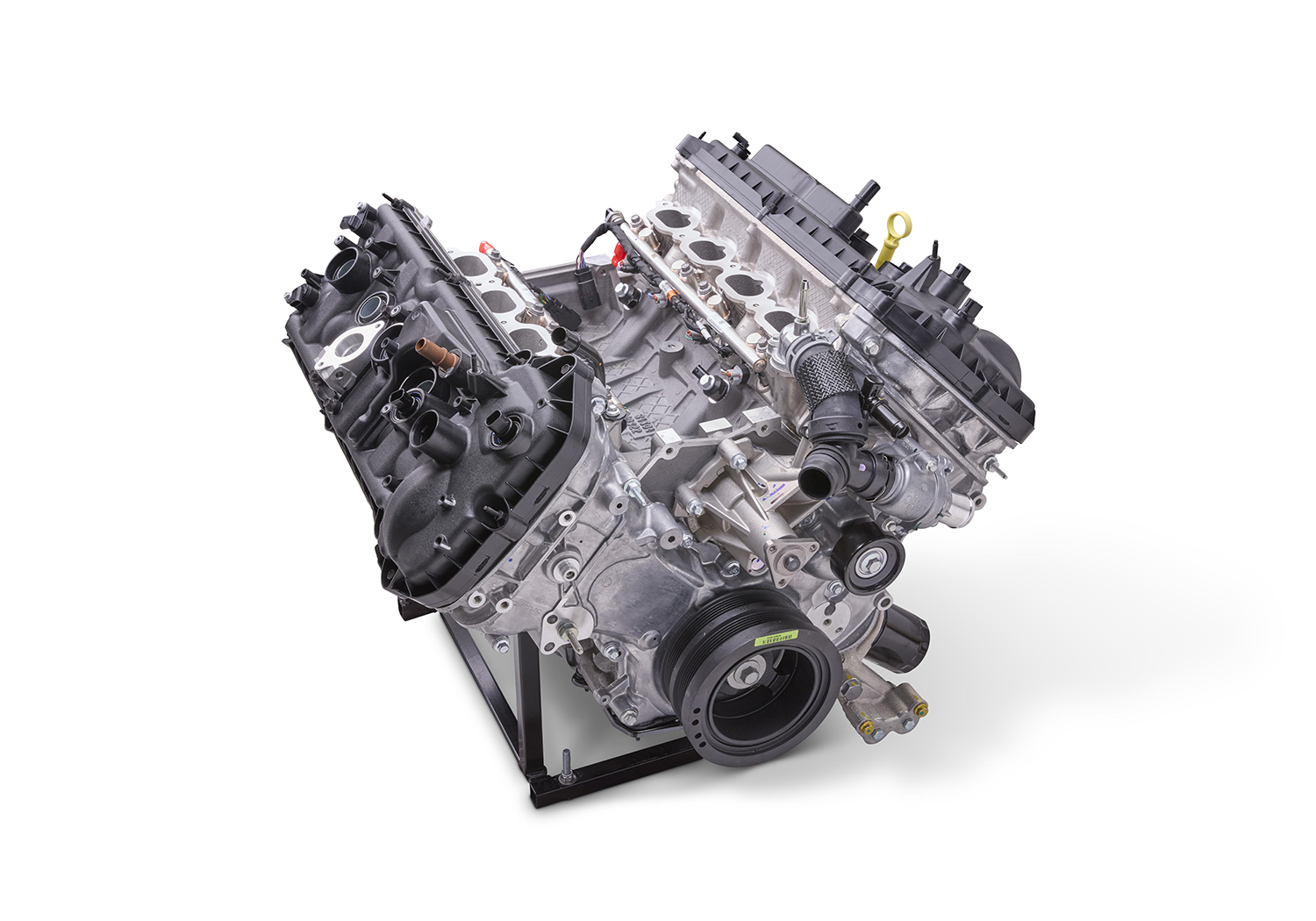

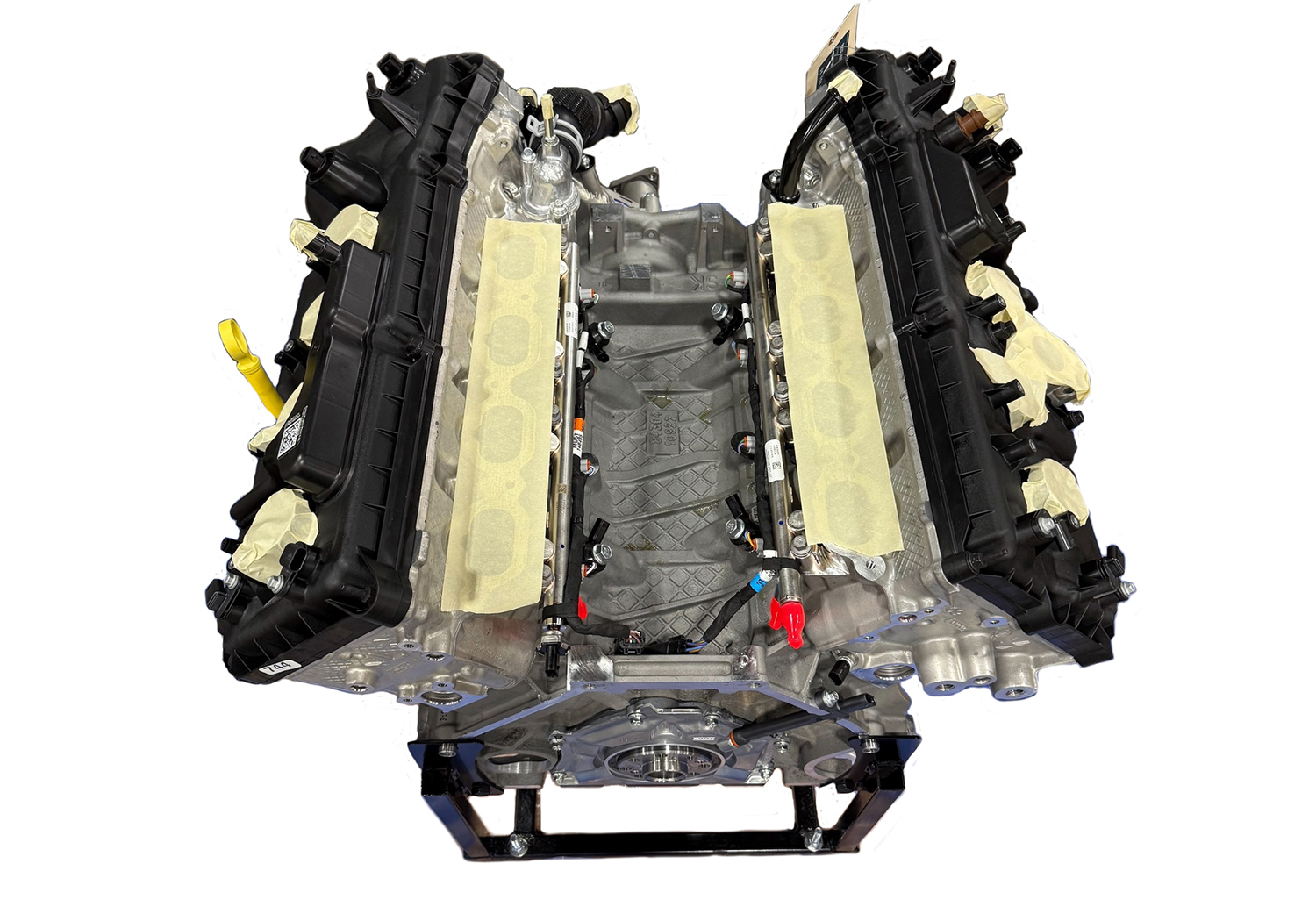

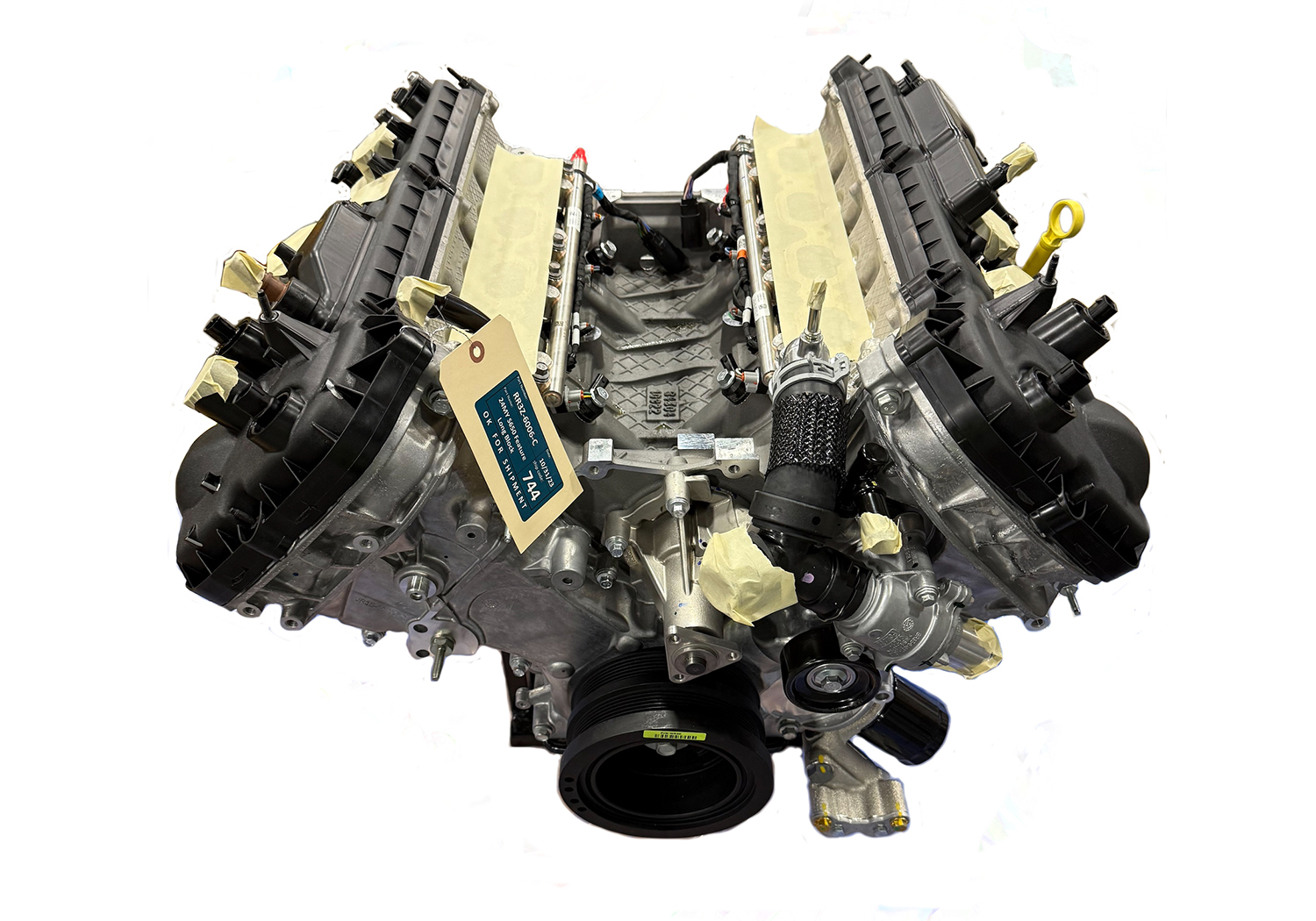

 This long block assembly is a replacement for your 2024 Mustang Dark Horse™ 5.0L and an upgrade for your 2024 Mustang GT 5.0L. The 2024 Mustang 5.0L DOHC 32-valve V-8 uses advanced features such as direct and port fuel injection, twin independent variable camshaft timing (Ti-VCT), high-flow cylinder heads, dual throttle bodies and high compression to deliver 500 horsepower in the Dark Horse™.

The lightweight plasma transferred wire arc spray aluminum cylinder block features cross-bolted main bearing caps and think main bearing bulkheads for bottom-end strength, and optimized oil drainback and windage control to improve high-rpm performance.
  • 12.0:1 Compression ratio
  • Bore 93 mm x Stroke 92.7 mm
  • Hypereutectic aluminum pistons
  • Sintered steel connection rods
  • Forged steel crankshaft
  • Aluminum block that features plasma transferred wire arc spray weld liner coating
  • Longer, 12 mm head bolts for higher clamp load
  • 9.5 qt capacity steel oil pan

The long block assembly does NOT include:
  • Intake manifold/throttle bodies
  • fuel rails/fuel injectors
  • Water pump pulley
  • Alternator
  • Exhaust manifolds
  • Flywheel/flex plate
  • Engine wiring/PCM
Part Type
Engine: Complete Engines
Warranty Availability
Not Available
Package Dimensions
42" x 42" x 45"
Package Weight
487 lb(s)
UPC Code
756122022917
Country of Origin
Multiple Cntry Mfg. Locations
