GEN 4X 5.0L COYOTE POWER MODULE W/ 6 SPEED MANUAL TRANS

Proudly Made in Canada
Ford Performance Parts has the complete solution for your drivetrain upgrade needs with the Gen 4X Coyote Manual Power Module.

  • Gen 4X 5.0L Coyote crate engine
  • Tremec 6 speed manual transmission
  • Complete Engine Controller and Wiring Harness (Control Pack)

Next generation 5.0L power all in one complete powertrain kit. The crew at Ford Performance have spec'd out a kit to simplify the swap of the newest, most innovative 5.0L Coyote engine into just about any Ford vehicle. The Coyote Power Module teams the Gen 4X 5.0L Coyote V8 with a state-of-the-art Tremec 6-Speed transmission - and all the electronics and hardware to finish the installation. The engine features Direct and Port Fuel Injection, Twin Independent Variable Camshaft Timing, and a lightweight plasma transferred wire arc spray aluminum engine block. Coyote Power Module simplifies both the shopping and build experience by kitting up the right parts that are matched to deliver potent performance with civilized drivability.  The engine Control Pack is truly plug and play and simplifies conversions to a modern electronically fuel injected V8 high performance engine.

  • Gen 4X 5.0L Coyote engine
  • 460 Horsepower @ 7,000 rpm
  • 420 lb.-ft. Torque @ 4,600 rpm
  • 12.0:1 Compression ratio
  • Aluminum block
  • Boss 302 Alternator Kit – M-8600-M50BALT
  • Starter and Starter Index Plate

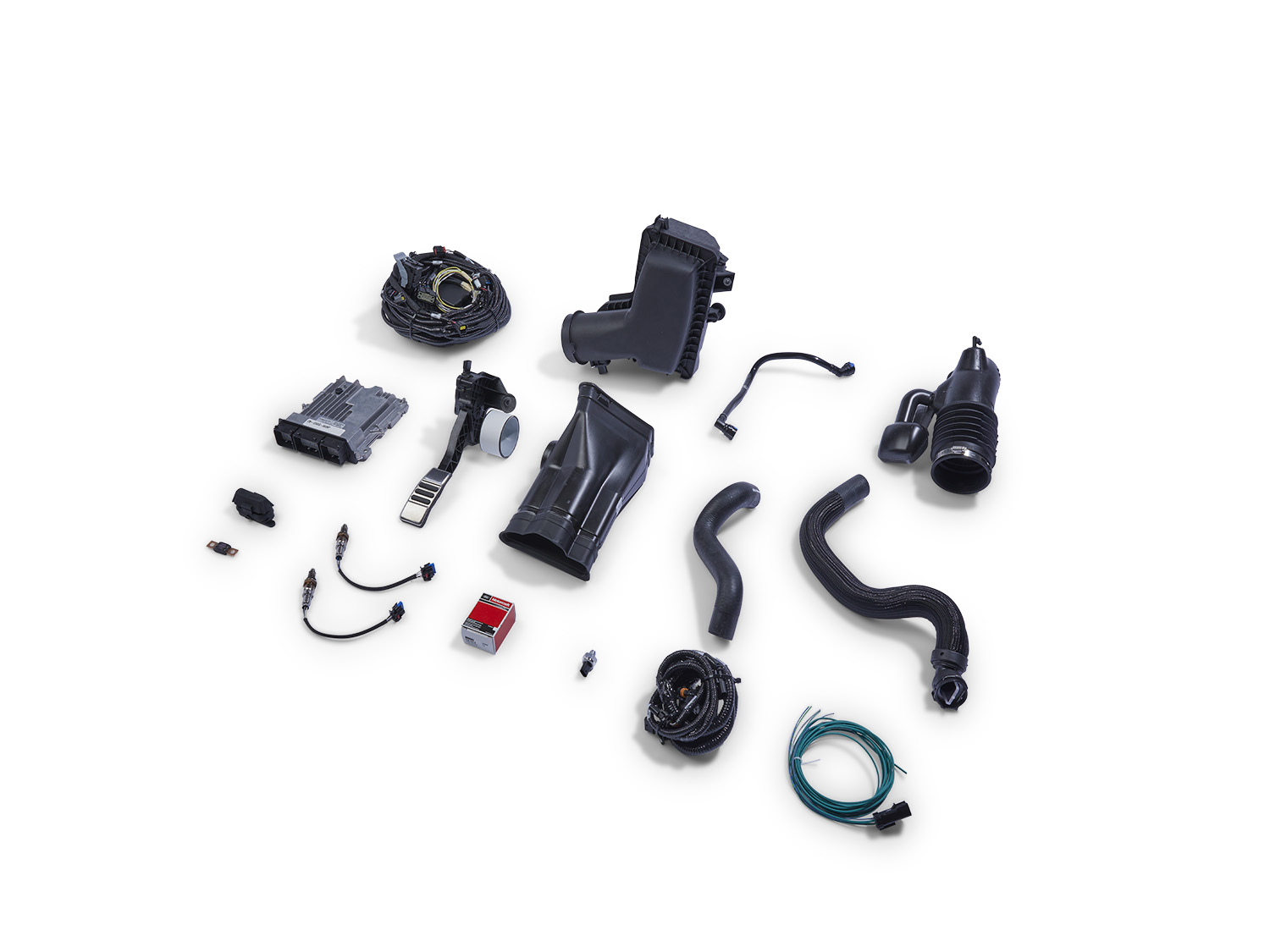

  • Control Pack PCM and installation kit is tunable for power upgrades - M-6017-M50HM
  • Runs on pump gas
  • Steel Quicktime Bellhousing
  • Roller Pilot Bearing – M-7600-B

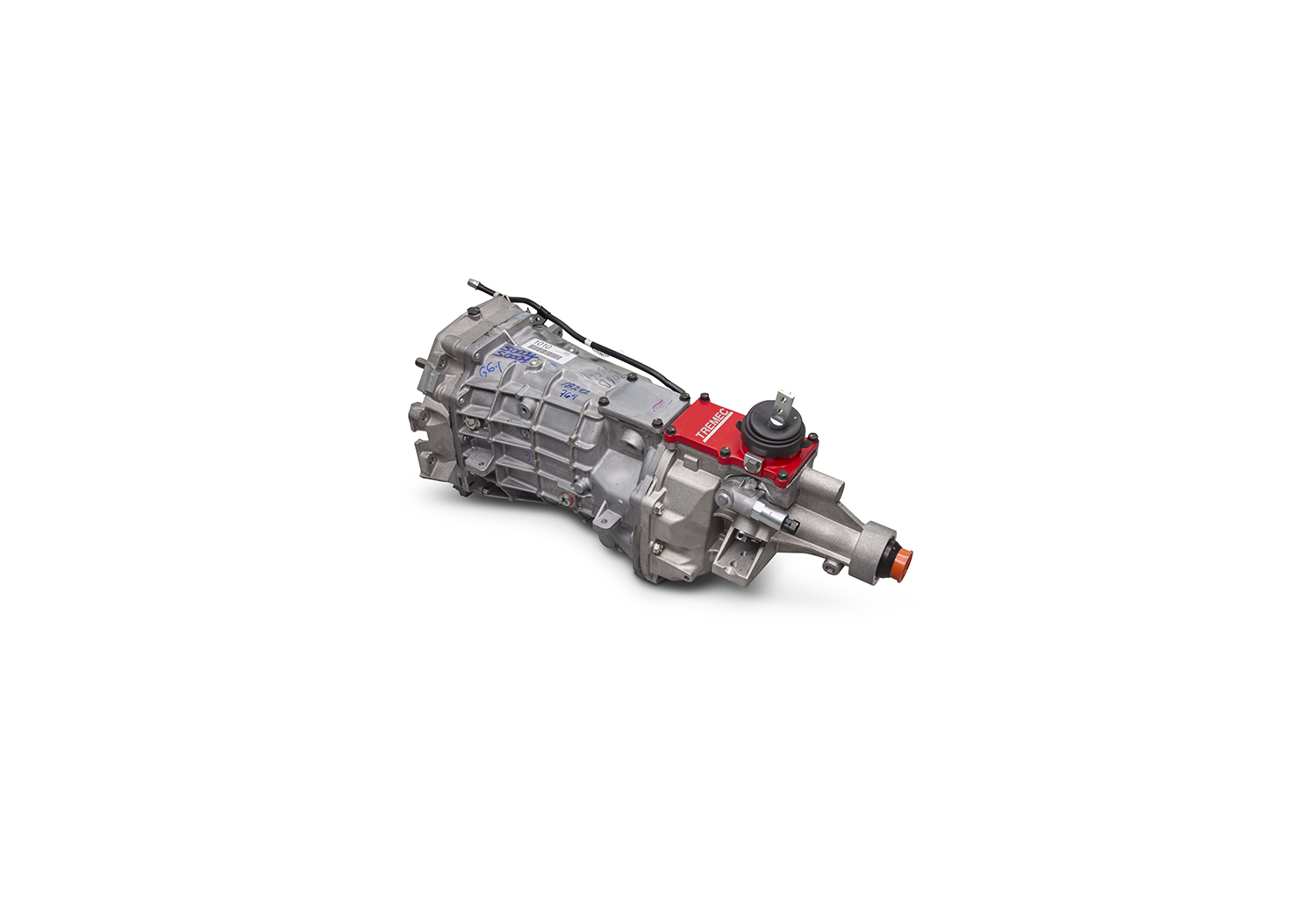

  • Tremec 6-Speed Transmission 2.66 1st gear - M-7003-M6266
  • Clutch Fork / throw-out bearing
  • Clutch Kit M-7560-T46
  • Billet flywheel M-6375-G46A
  • Installation hardware
  • Note: Engine will be fitted with an automatic flexplate. Included is a billet flywheel, to be installed on engine before installation into vehicle
  • Coyote Crate Engine Technical Reference Guide
  • Click here for engine exterior dimensions

Part Type
Engine: Complete Engines
Warranty Availability
Not Available
Ships In
2 Boxes
Box 1 Dimensions
36.5" x 44.5" x 36"
Box 1 Weight
737 lb(s)
Box 2 Dimensions
48" x 42" x 35"
Box 2 Weight
737 lb(s)
UPC Code
756122022962
Country of Origin
Canada
