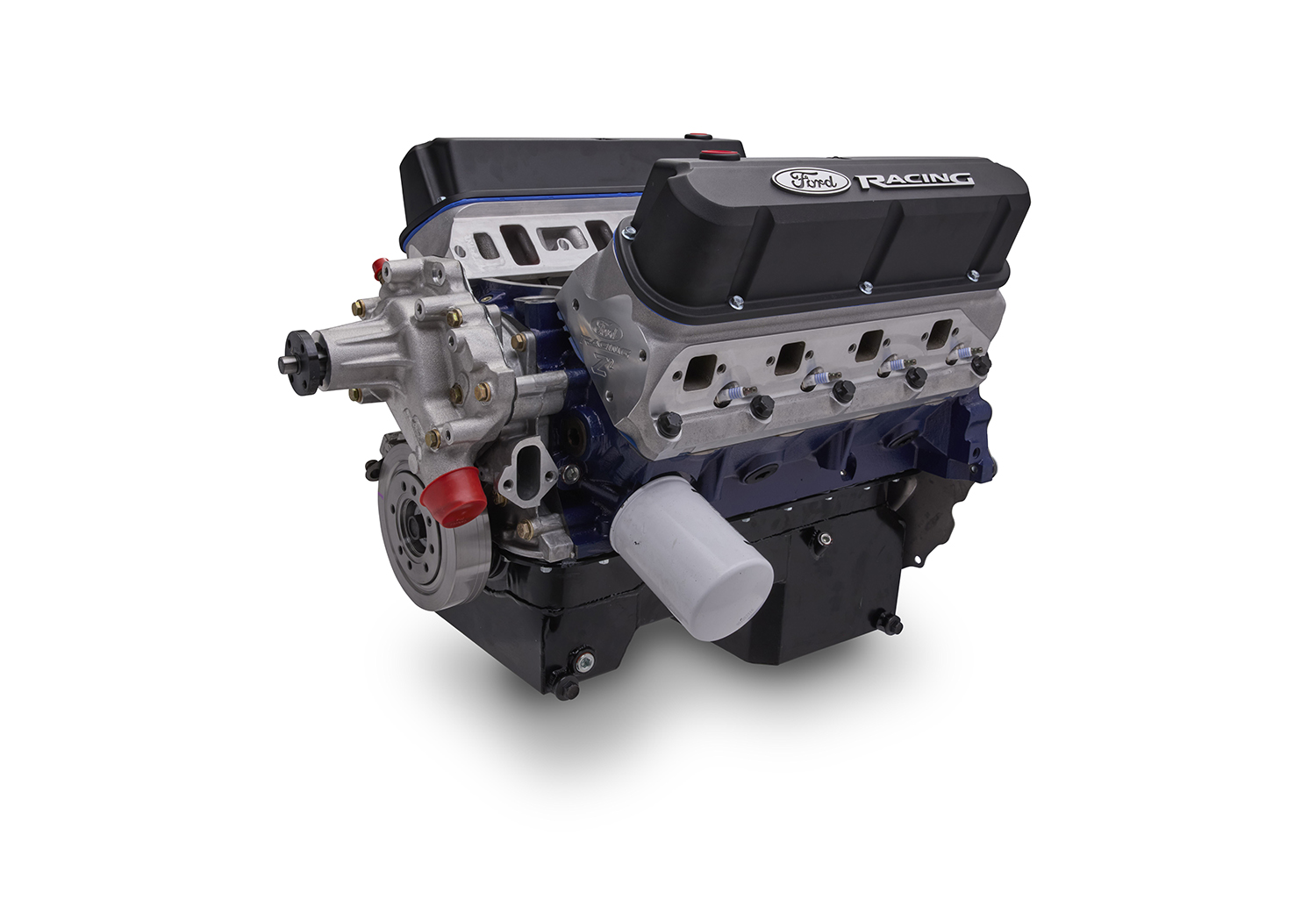

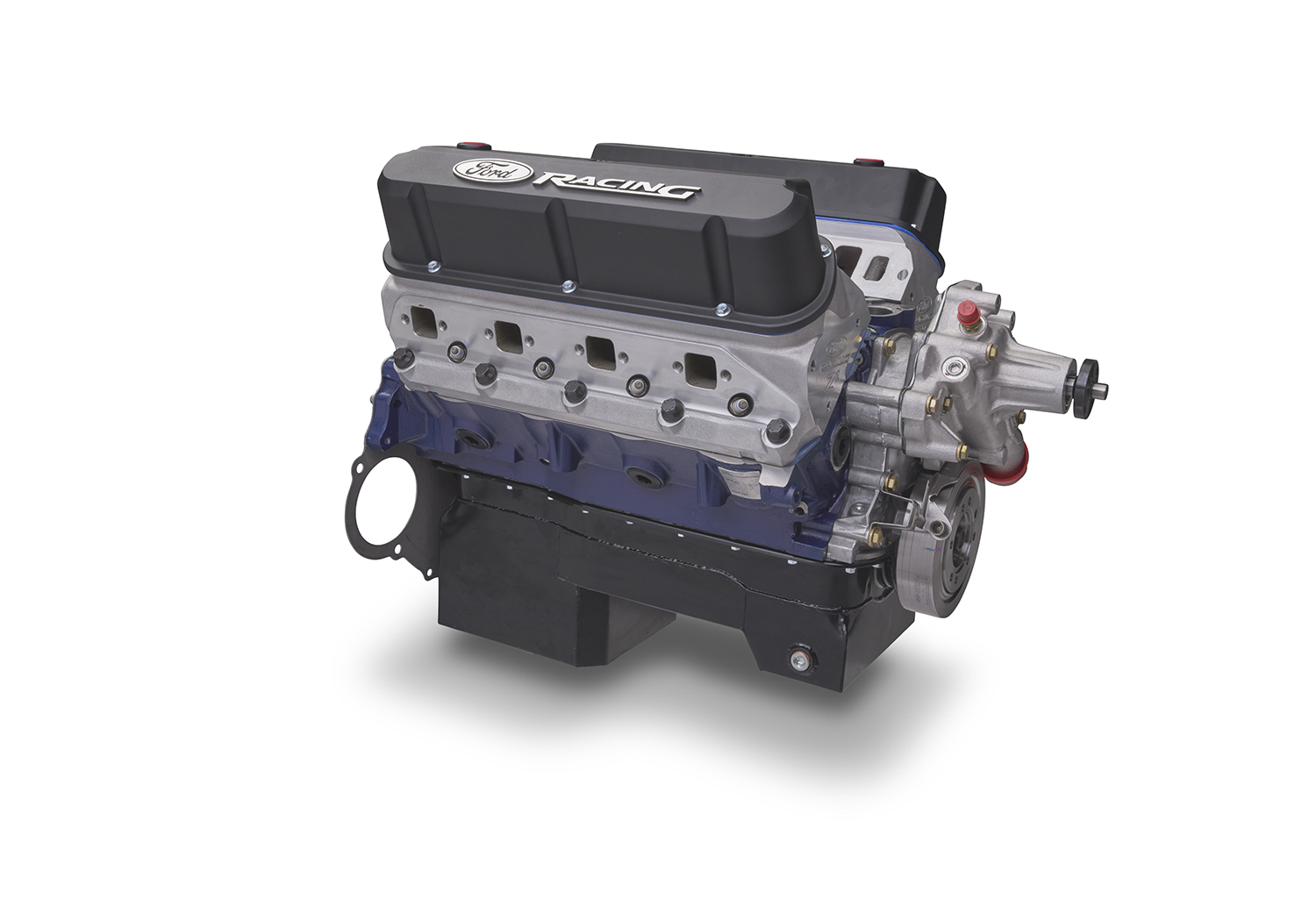

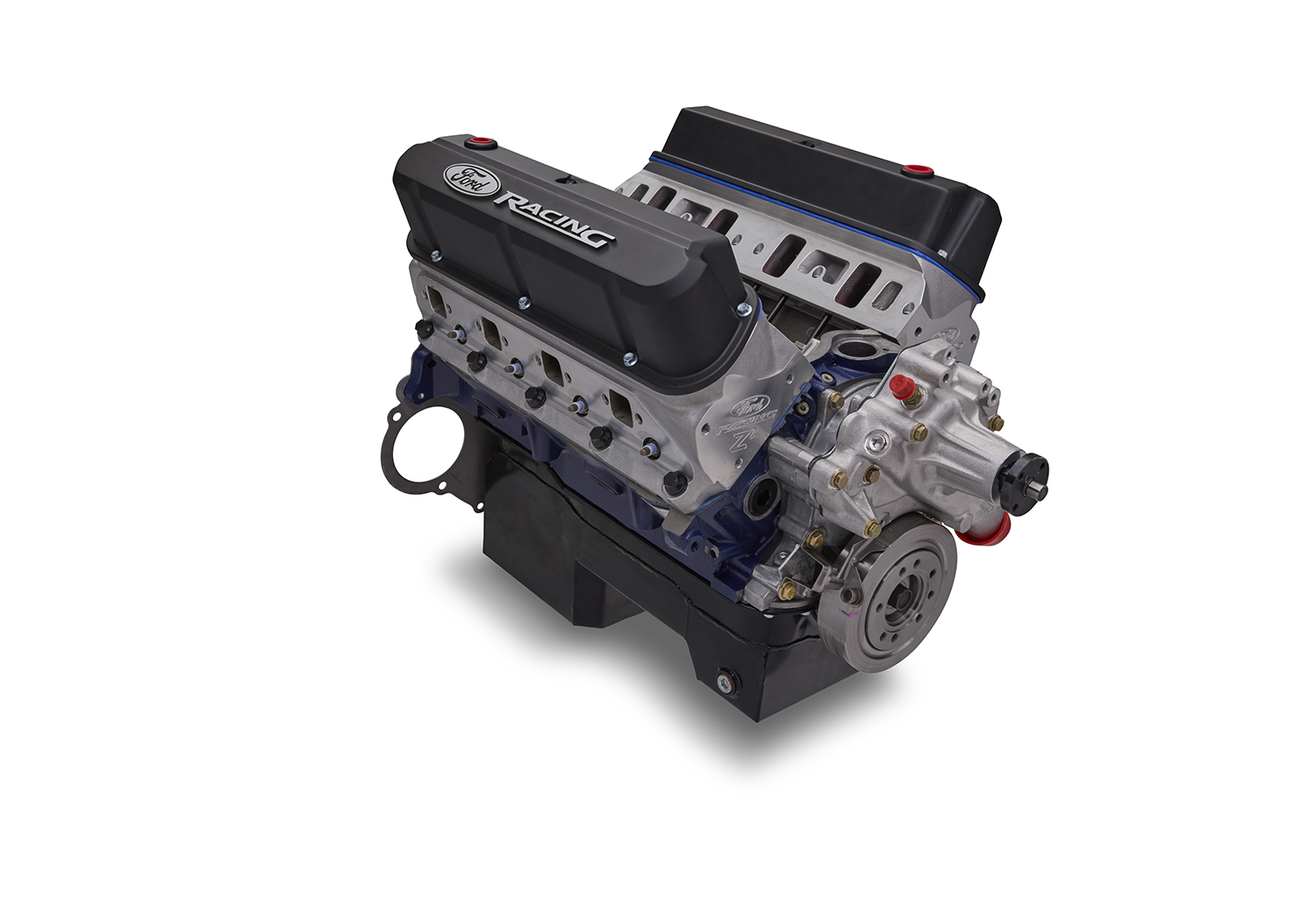

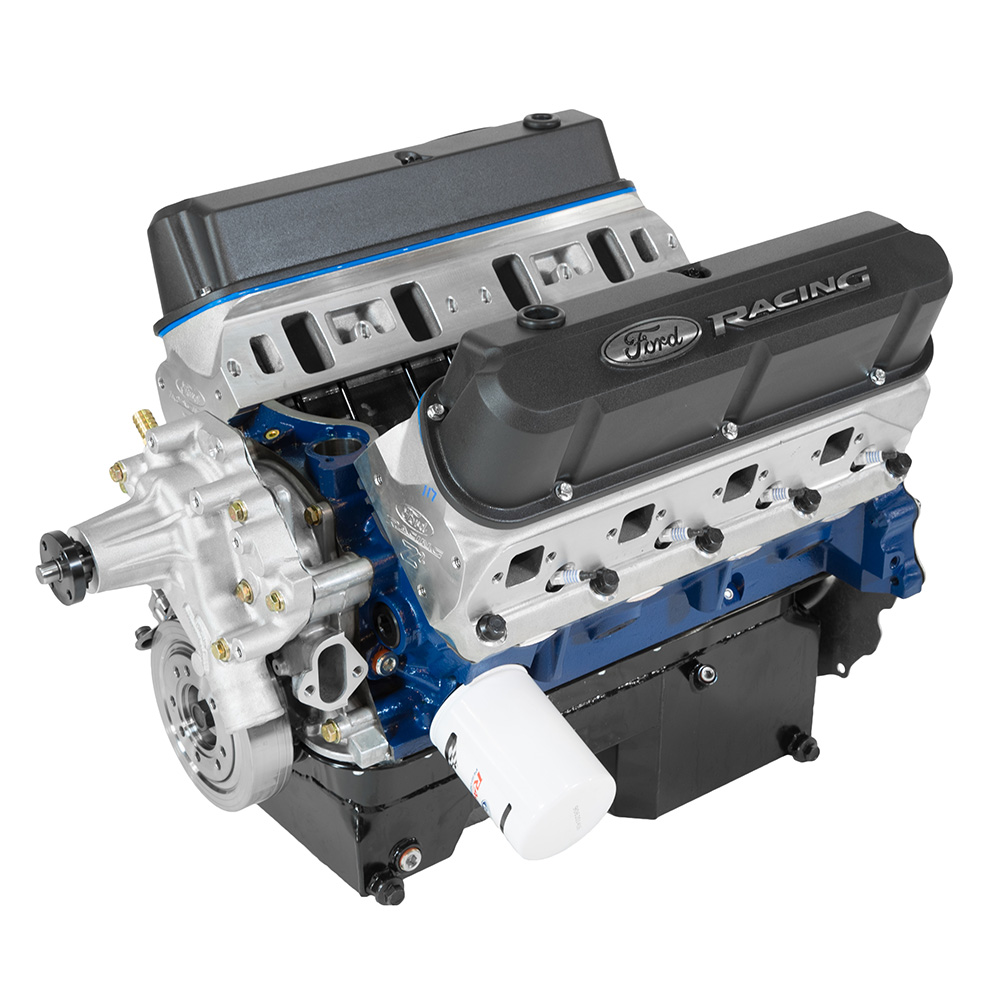

363 CUBIC INCH 500 HP BOSS CRATE ENGINE-Z2 HEADS-REAR SUMP PAN

363 CUBIC INCH 500 HP BOSS CRATE ENGINE-Z2 HEADS-REAR SUMP PAN
M-6007-Z2363RT
Retail
$10,650.00
Sold in Units of
Each (1)
Instruction Sheet
Not Available
WARNING:
This part is designed and intended for competition use only. It should not be installed on a vehicle that is driven on public roads and highways. Installation of this part on a vehicle driven on public roads and highways is likely to violate U.S. and Canadian laws and regulations relating to motor vehicle emissions.

Danger Logo Proposition 65 Warning for Residents of the State of California


WARNING: This product may contain chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm.

For more information visit www.p65warnings.ca.gov.

  New Z2 Cylinder heads with Velocity Vane

  • 507 HP on Pump Gas - in a 302 Sized package
  • Built with the Best All New Parts
  • Uses standard SBF Headers and accessory mounts
  • From the guys that know Ford Performance Best – Ford Performance Engineers

507 horsepower @ 6500 rpm

450 lb. -ft. torque @ 5100 rpm

Click below to read the Mustang360 story on this engine:

 Crate Expectations: Ford Performance Parts delivers the goods with its new Z2363 crate engines

  • Engine type: 302 based small block Ford
  • Displacement (cu in): 363
  • Bore x stroke (in): 4.125" bore x 3.400" stroke

  • Block: Boss 302 8.2 deck M-6010-BOSS302
  • Crankshaft: SCAT® Forged Steel
  • Connecting rods: SCAT forged steel I-beam connecting rods and ARP® bolts
  • Pistons: Forged Mahle® w/ floating wrist pins
  • Camshaft type: Hydraulic Roller
  • Camshaft lift (in): .580"/.602"
  • Camshaft duration (@.050 in): 232°/240°

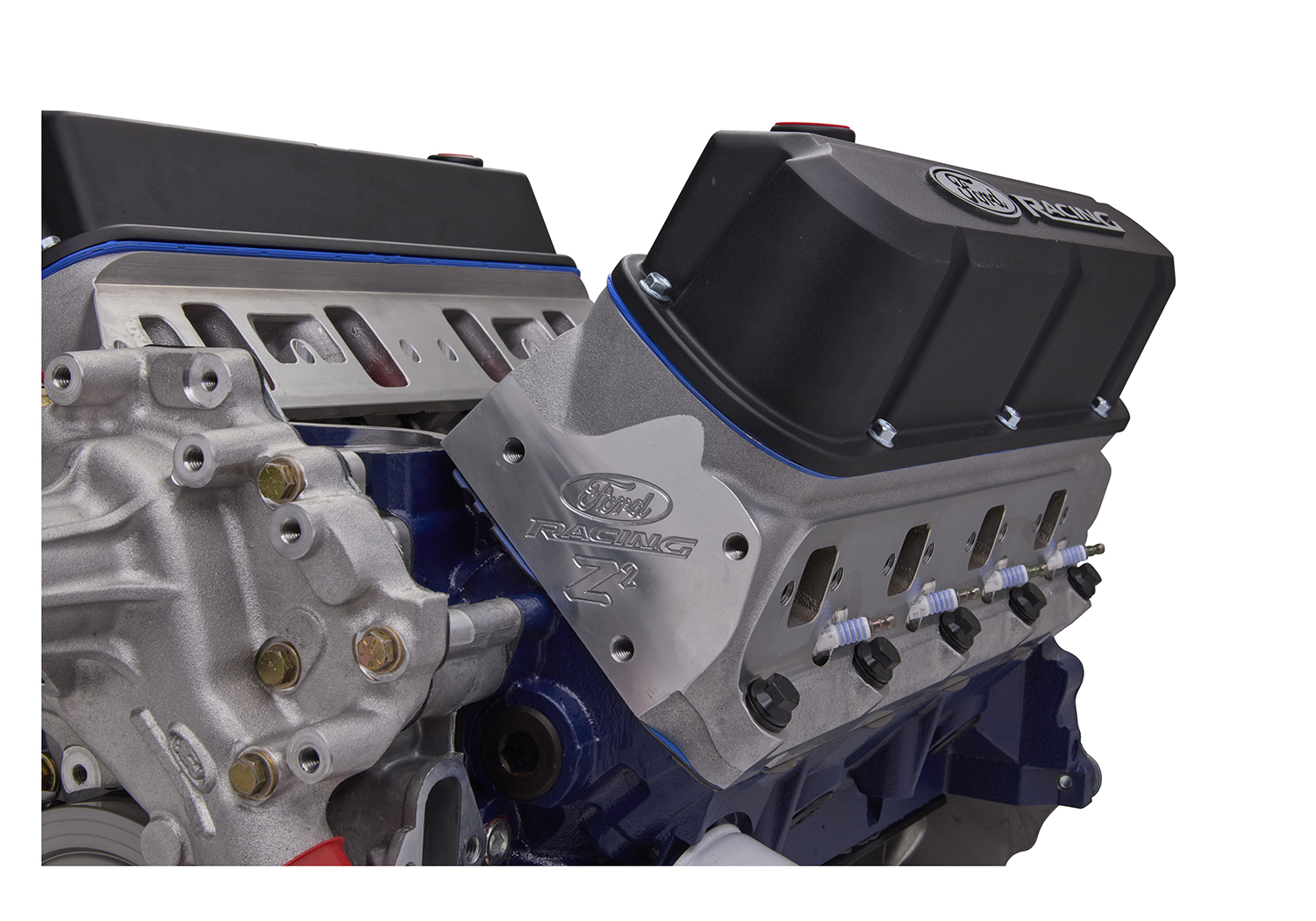

  • Cylinder Heads Ford Performance Aluminum "Z2" Cylinder Heads M-6049-Z2
  • Valve size (in): 2.05" intake 1.60" exhaust
  • Valve Springs: PAC® 1219X Ovate Beehive
  • Compression ratio: 10.2:1 (nominal)
  • Rocker arms: Roller Rockers – 1.65:1 Ratio
  • Vibration Damper:  Ford Performance SFI Approved

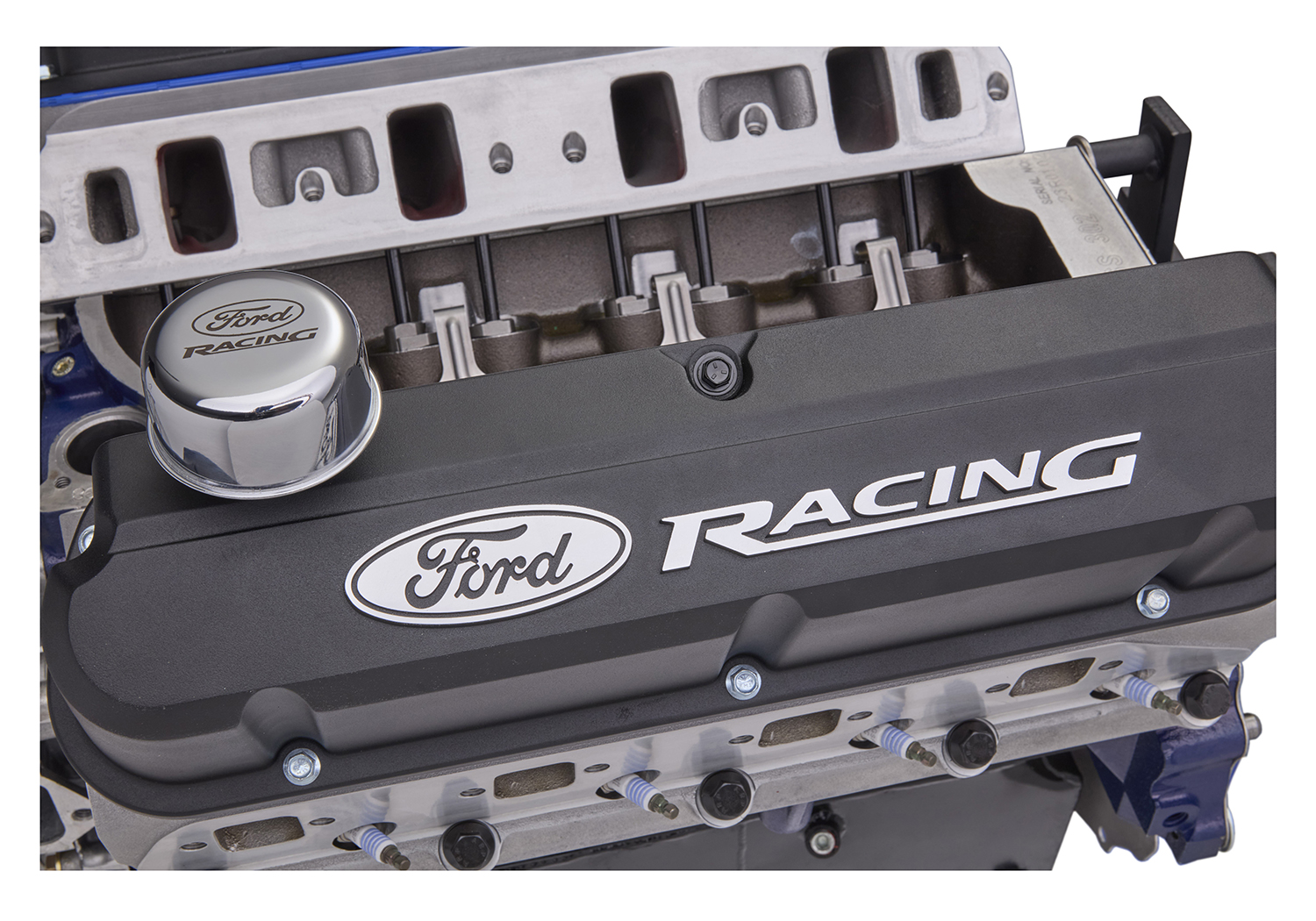

  • Valve covers: "Ford Racing" cast aluminum-black 302-135
  • Oil pan: high performance 7 quart capacity and windage tray / scraper
  • Water pump: Edelbrock® hi-performance

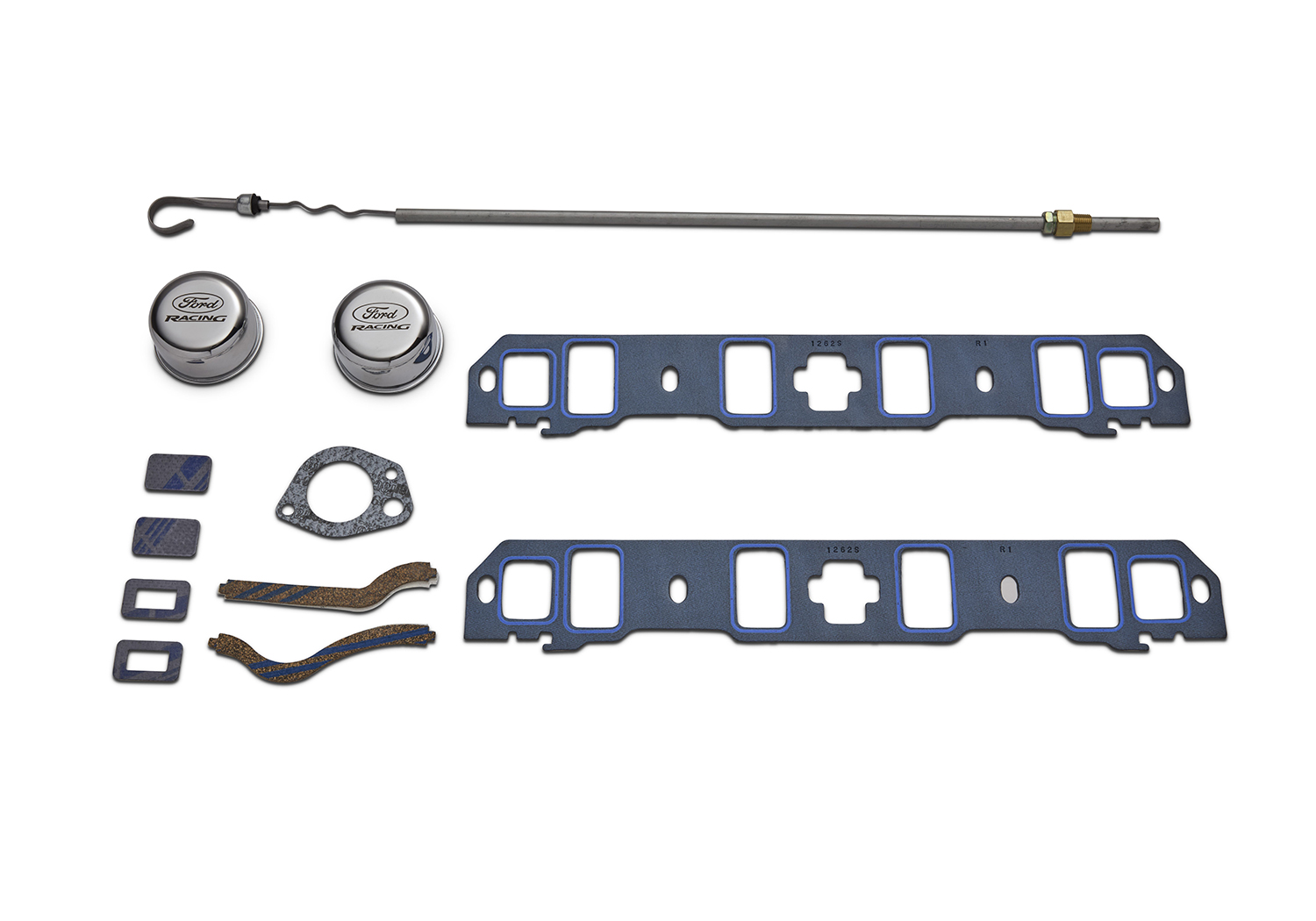

  • Includes Ford Performance M-9439-A50 intake manifold gaskets
  • Does not include distributor, intake and flywheel
  • Required fuel: Premium unleaded
  • Built with current available parts. Photo and specs may vary.
  • Engine installation tuning tips can be found HERE

Part Type
Engine: Complete Engines
Warranty Availability
Packaged Dimensions
36" x 39" x 36
Packaged Weight
560 lb(s)
UPC Code
756122006115
Catalog Page Number
165
Country of Origin
United States
