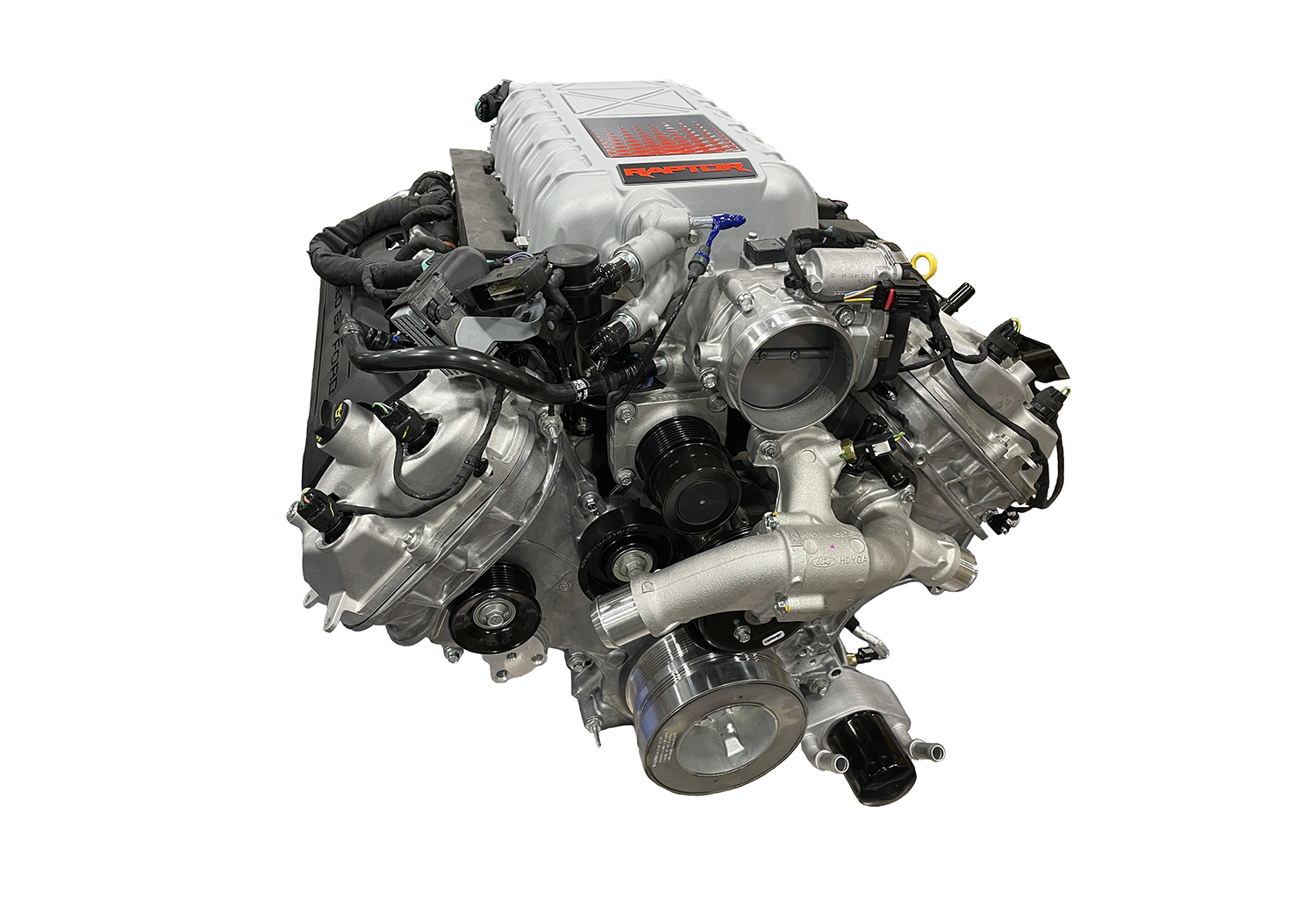

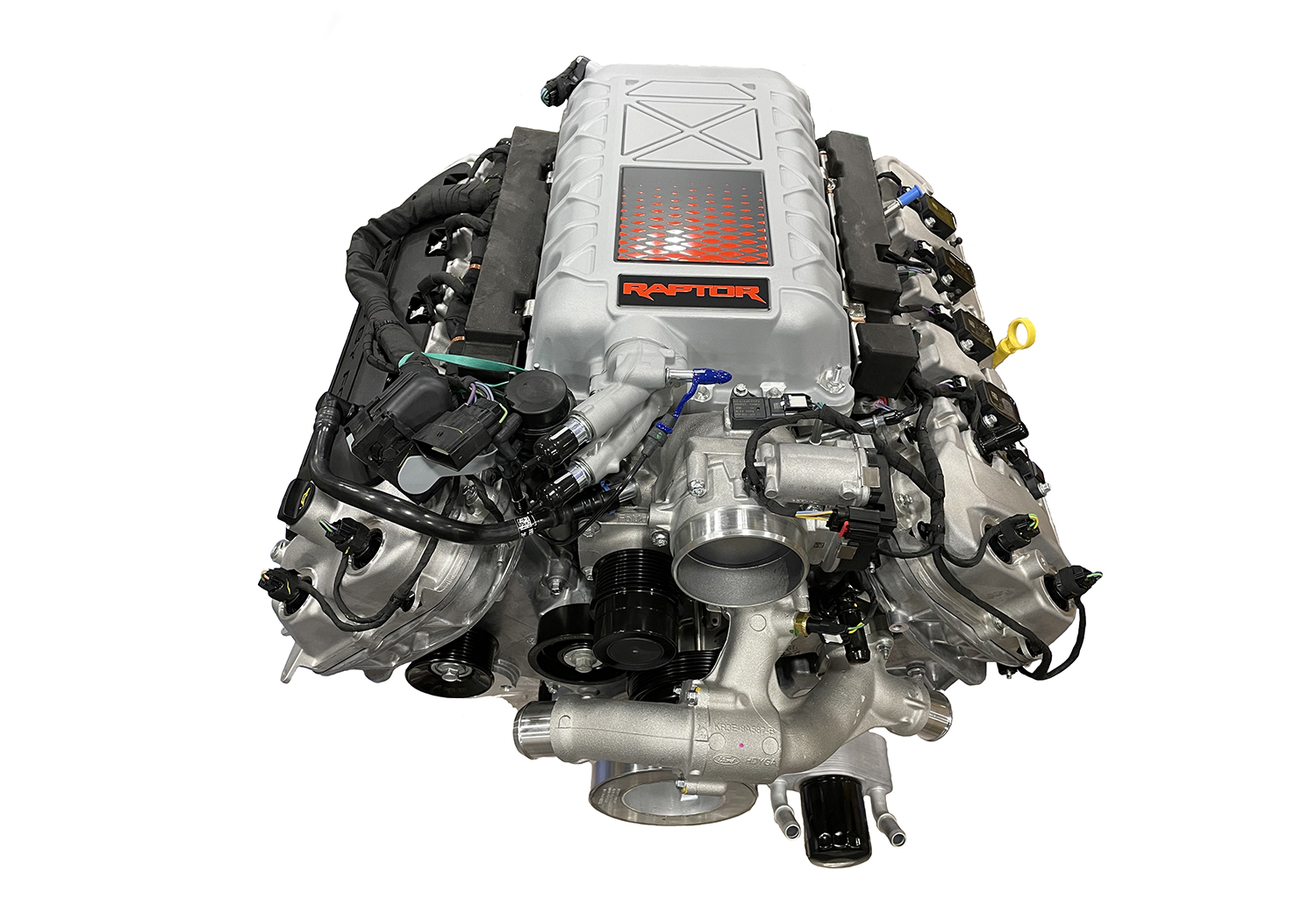

5.2L RAPTOR R SUPERCHARGED CRATE ENGINE

Ford Performance all-new 5.2L Supercharged intercooled engine from the 2024 F-150 Raptor R rated at 760 HP and 625 lb-ft of torque with the M-6017-M52SC control pack (premium fuel required).

Features:
  • Eaton TVS R2650 Supercharger
  • High strength aluminum block with plasma transferred wire arc spray weld cylinder liners
  • 94mm bore
  • 93mm stroke
  • 9.5 to 1 compression
  • Forged steel crankshaft and connecting rods
  • Grafal coated forged aluminum pistons
Includes the following all-new OE components:
  • Exhaust manifolds (left and right)
  • Alternator
  • Starter
  • A/C compressor
  • 92mm throttle body
  • Supercharger belt
  • Water pump/alternator belt
  • Utilizes the M-6017-M52SC control pack
Dry weight w/o FEAD components: 536 lbs.


Part Type
Engine: Complete Engines
Warranty Availability
Not Available
Ships In
2 Boxes
Box 1 Dimensions
42" x 42" x 45"
Box 1 Weight
500 lb(s)
Box 2 Dimensions
18" x 17" x 25"
Box 2 Weight
500 lb(s)
UPC Code
756122020005
Country of Origin
United States
