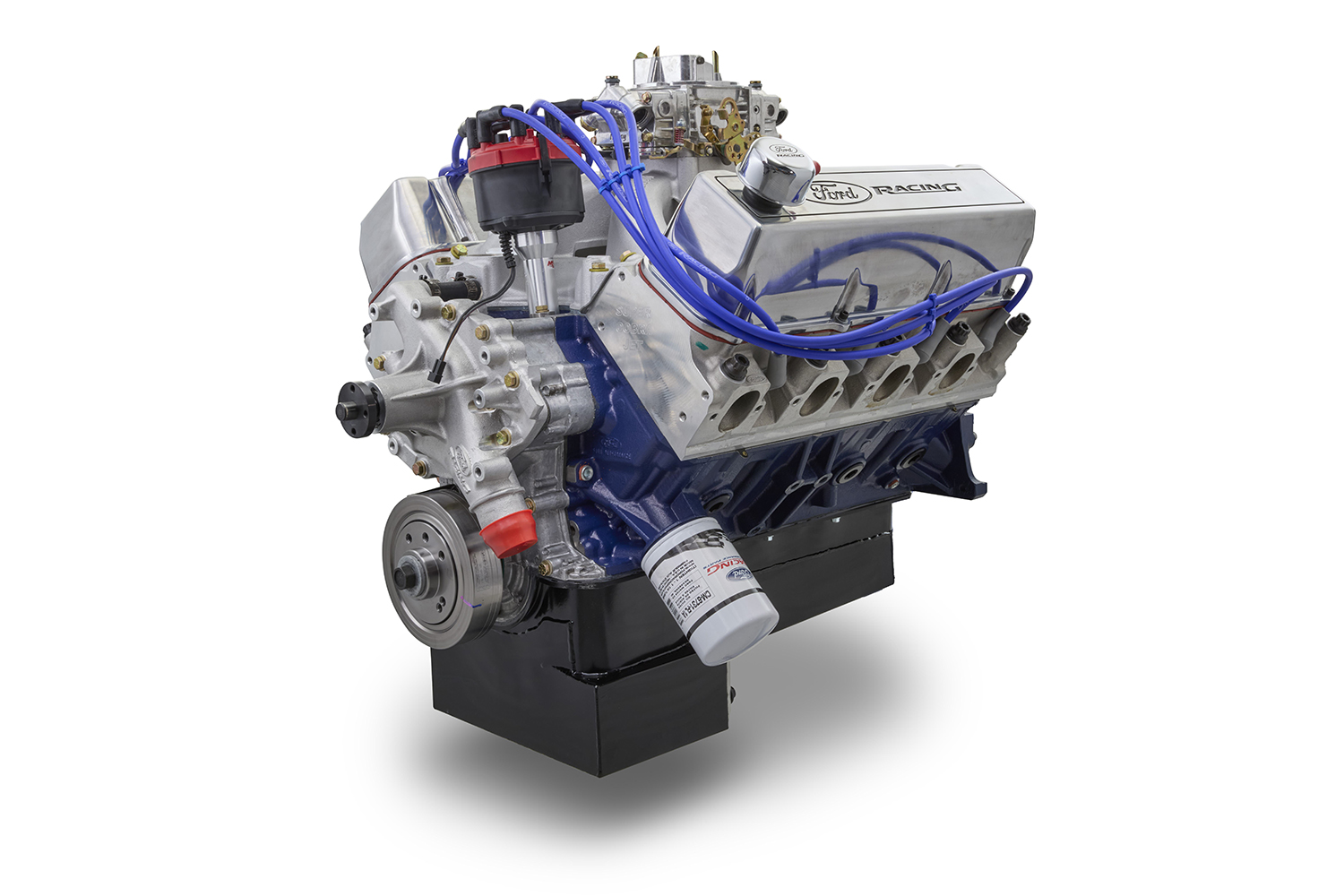

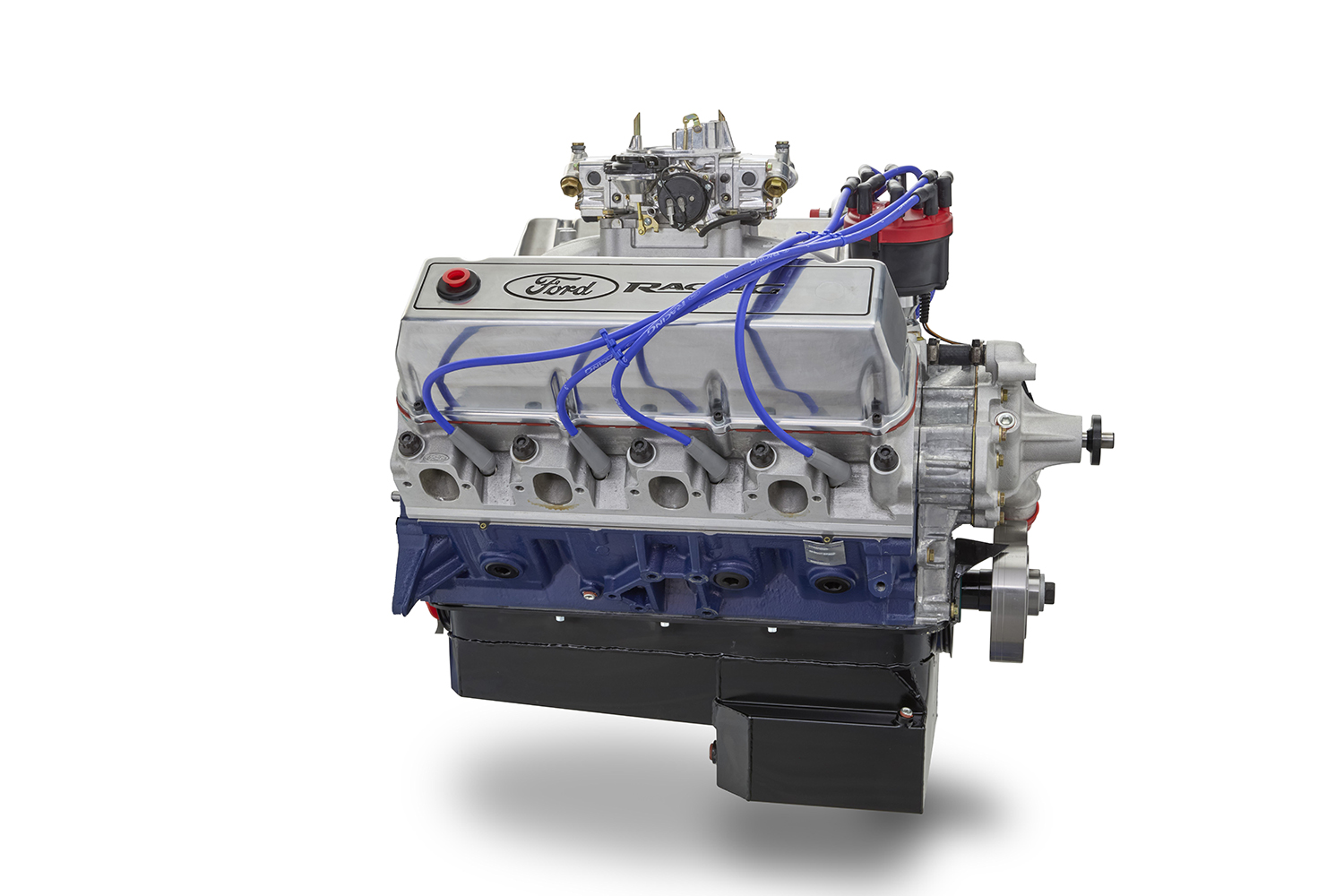

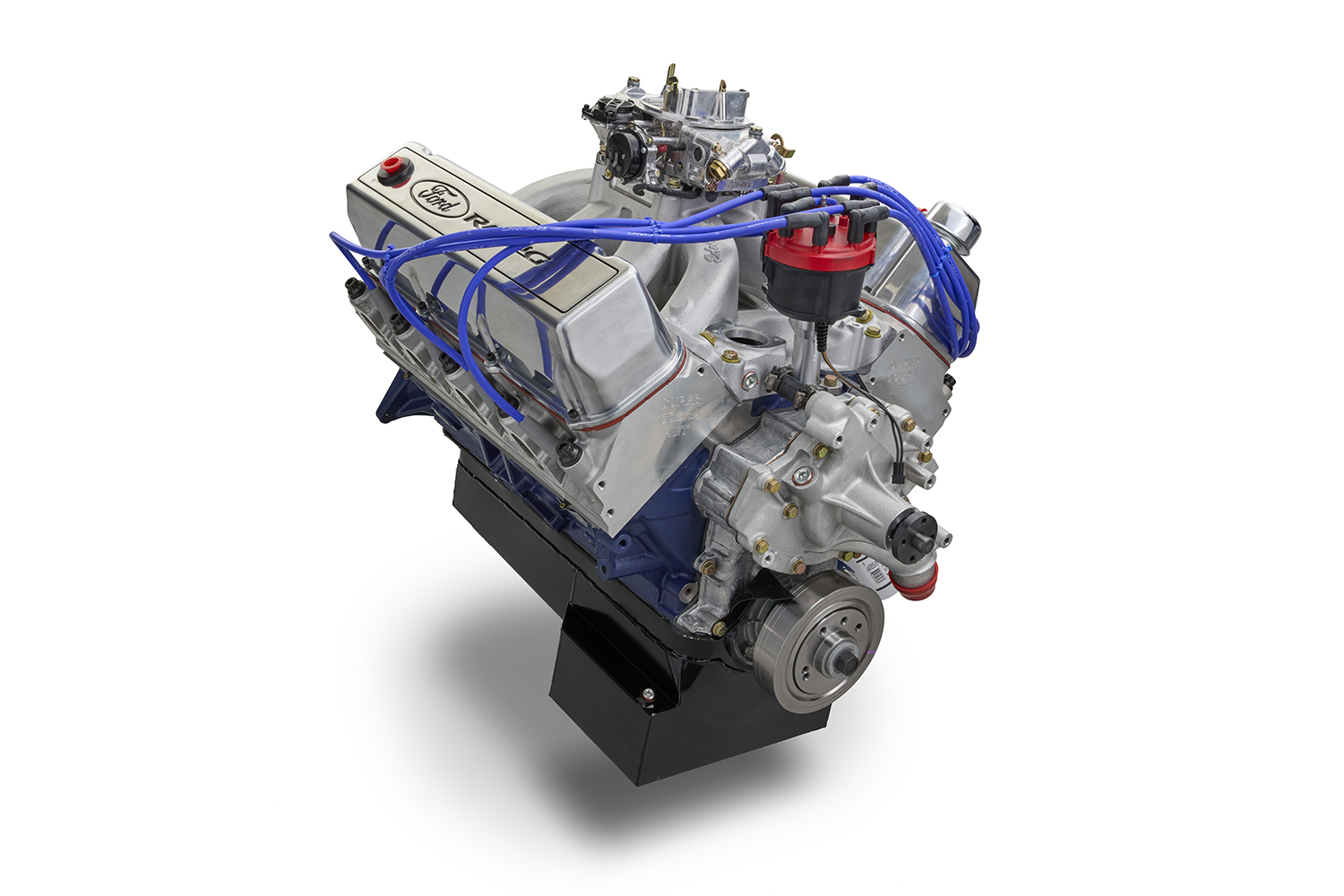

572 CUBIC INCH 655 HP BIG BLOCK STREET CRATE ENGINE-FRONT SUMP PAN
Sold in Units of
This part is in your Wish List
This part has been added to your Wish List
WARNING:This part is designed and intended for competition use only or off-highway use only. It should not be installed on a vehicle that is driven on public roads and highways. Installation of this part on a vehicle driven on public roads and highways is likely to violate U.S. and Canadian laws and regulations relating to motor vehicle emissions.
The BIG BLOCK is BACK!
This 572 cubic inch big block crate engine makes impressive power with excellent driveability while utilizing premium, unleaded pump gas.
655 Horsepower @ 5500 rpm 710 lb.-ft. torque @ 4500 rpm
- Engine type: 385 Series 'Big Block'
- Displacement 572 cubic inches
- Bore x stroke 4.500" bore x 4.500" stroke
- Block: Ford Performance A460 Big Block M-6010-A460
- Crankshaft: SCAT® forged steel
- Connecting rods: SCAT® forged steel H-beam connecting rods and ARP® bolts
- Pistons: Diamond Racing® with floating wrist pins
- Hydraulic roller
- Lift: .649"
- Duration: Intake-259 degrees @ .050" lift/ Exhaust-263 degrees @ .050" lift
- Cylinder heads:
- Ford Performance "Super Cobra Jet" Aluminum Cylinder Heads M-6049-SCJA
- Valve springs: Dual with damper
- Intake valves: Stainless steel-2.20" diameter
- Exhaust valves: Stainless steel-1.76" diameter
- Compression ratio: 10.0:1 (nominal)
- Required fuel: Premium unleaded
- Rocker arms: Crower® Stainless Steel Roller Rockers
- Timing chain: Ford Performance Multi Index Timing Chain Set M-6268-A460
- Oil pump: Heavy duty, aluminum body Jon Kaase® oil pump
- Vibration Damper: Ford Performance SFI approved
- Balanced: Internally balanced-use neutral balance flywheel (not included)
- Oil Pan: Ford Performance Front Sump Oil Pan M-6675-FT460

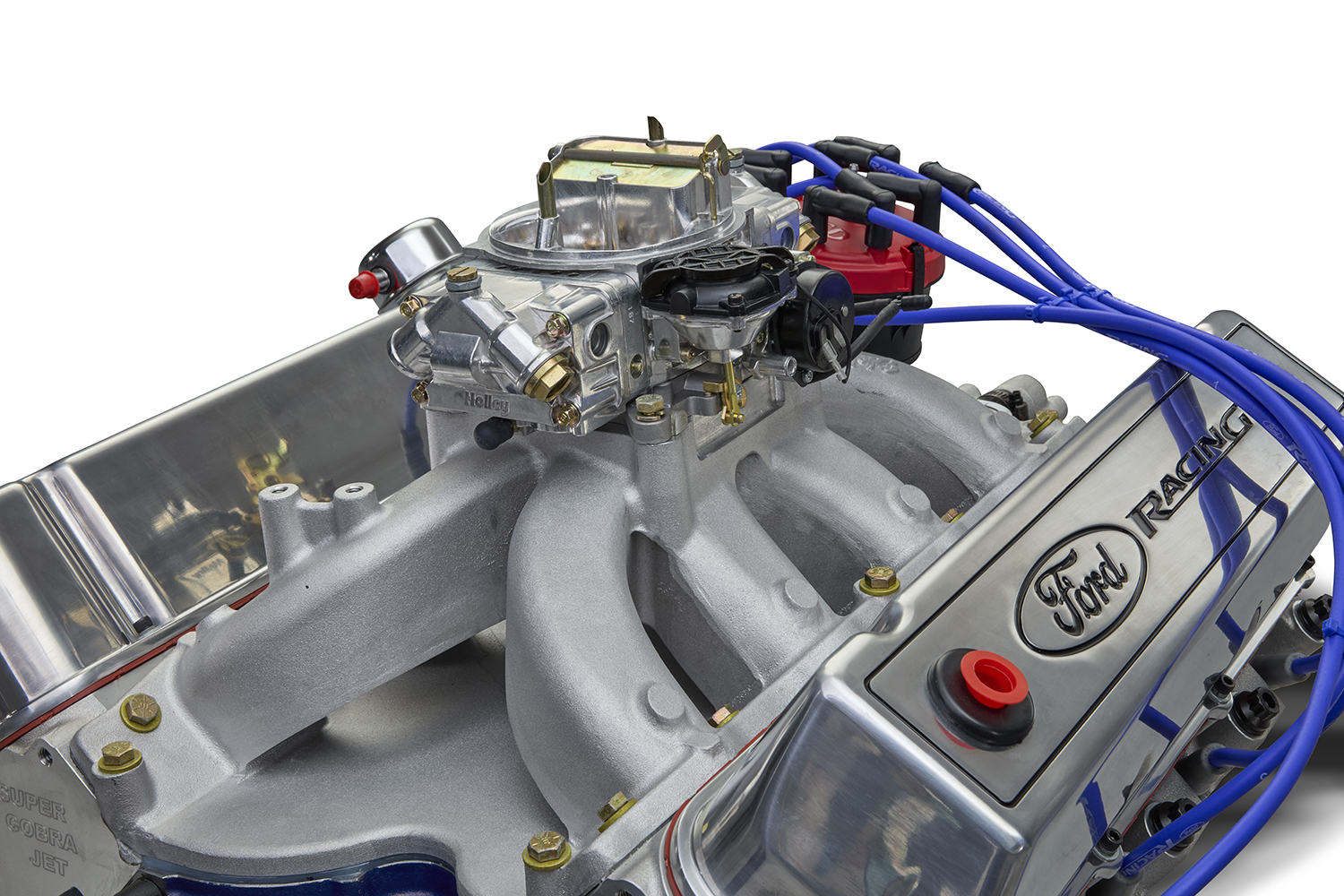

- Intake Manifold: Edelbrock® Victor® 2966
- Carburetor: Holley® Street Avenger 870 cfm
- Distributor: MSD® distributor
- Water Pump: High Performance Edelbrock® water pump
- Spark Plug Wires: Ford Performance Blue 9mm spark plug wires M-12259-C460
- Built with current available parts. Photos and specifications may vary.
- Engine installation and tuning tips are available at Engine Building Tips
Engine: Complete Engines
36" x 39" x 36"
