M-6007-M50H
Retail
$12,650.00
Sold in Units of
Each (1)
Instruction Sheet
Not Available
Sign in to add to wish list
ATTENTION:
This part is intended as a replacement part for use only in the application(s) identified in the product description. Installation of this part in a vehicle for which it is not intended may violate U.S. and Canadian laws and regulations related to motor vehicle emissions.
Unleash the thrill of modern engineering with the 5.0L GEN 4X Mustang Crate Engine, boasting 460 horsepower and 420 lb.-ft. of torque. Enjoy unmatched performance and reliability with cutting-edge features like direct and port fuel injection, making every drive exhilarating and dependable.

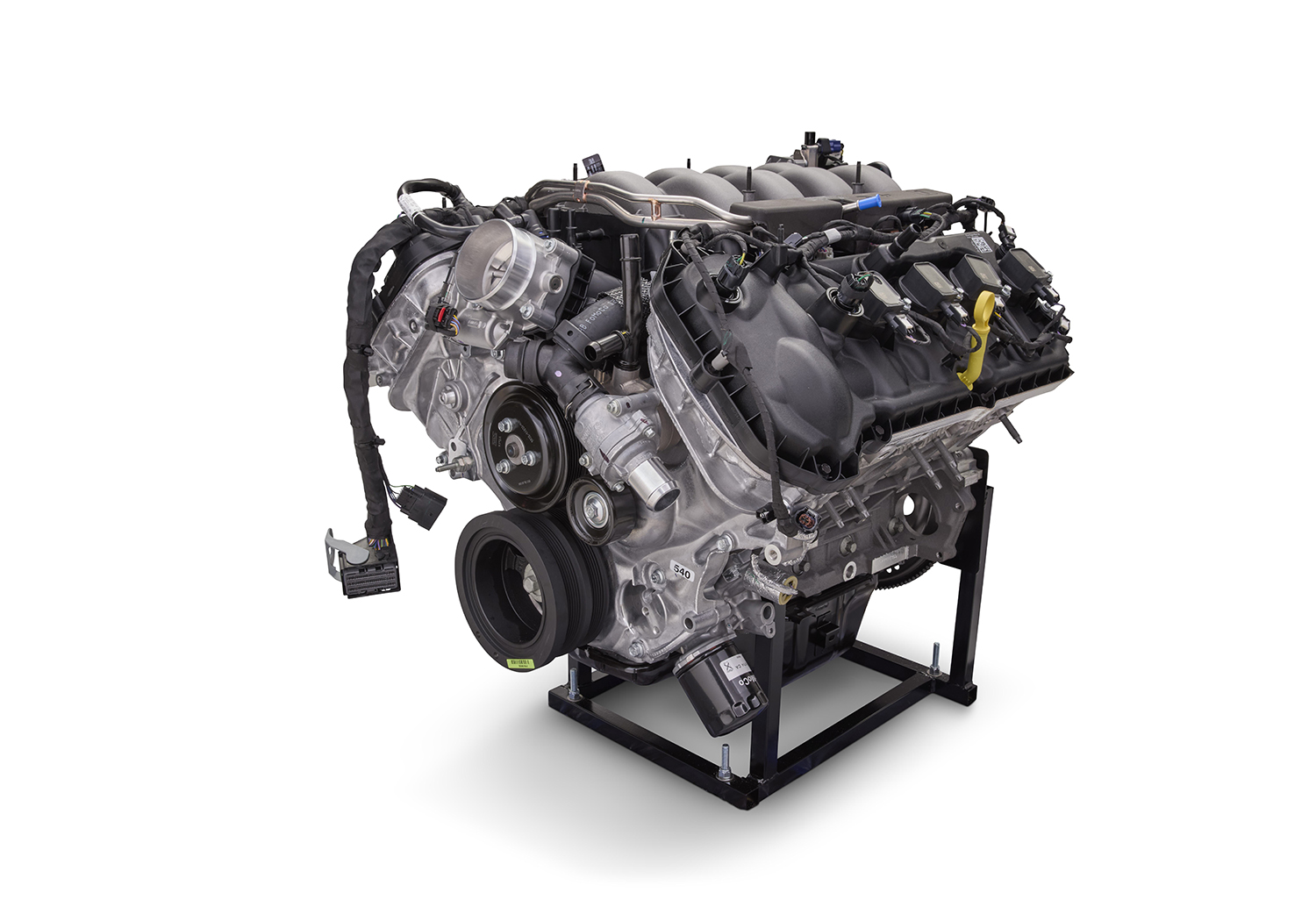

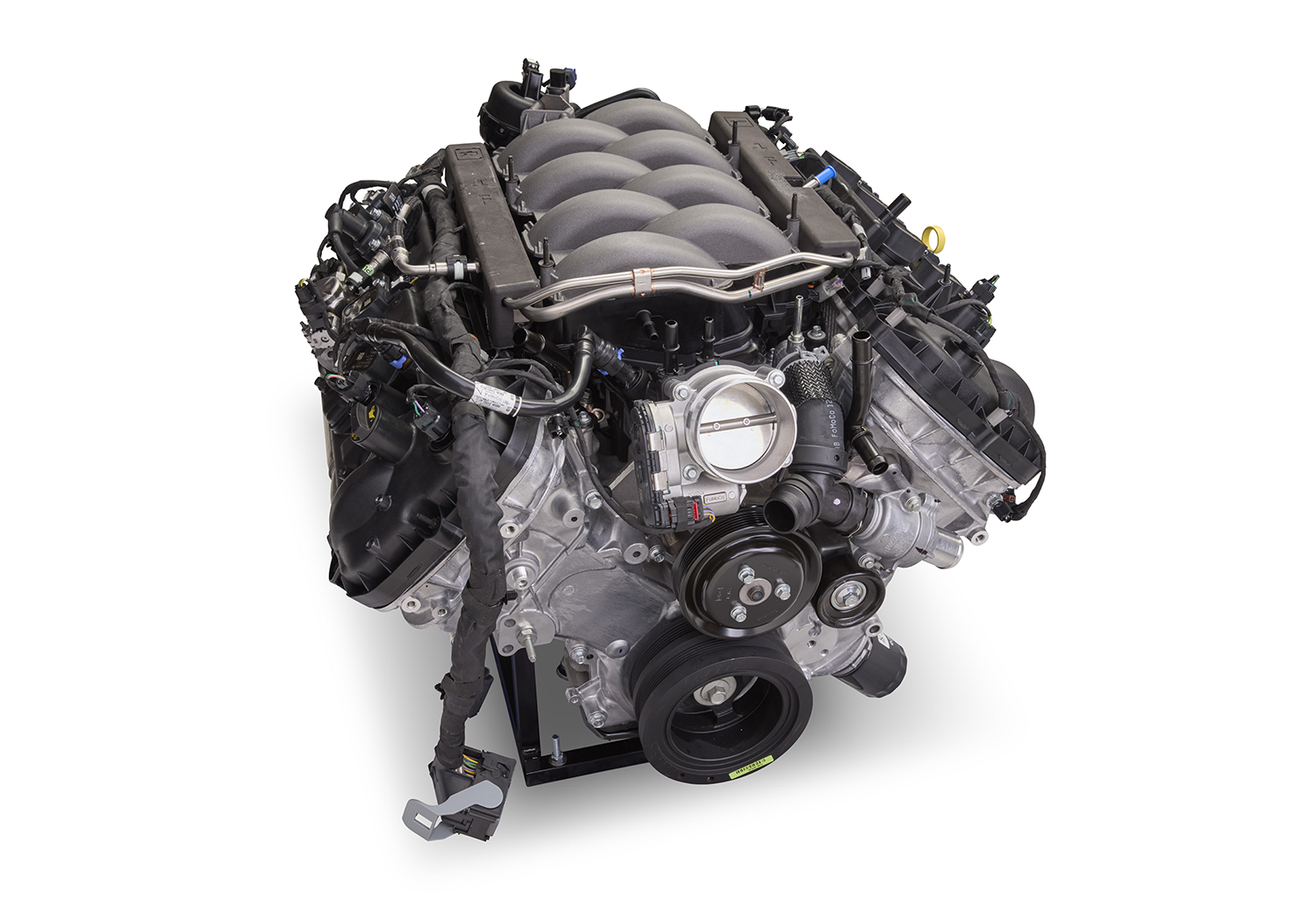

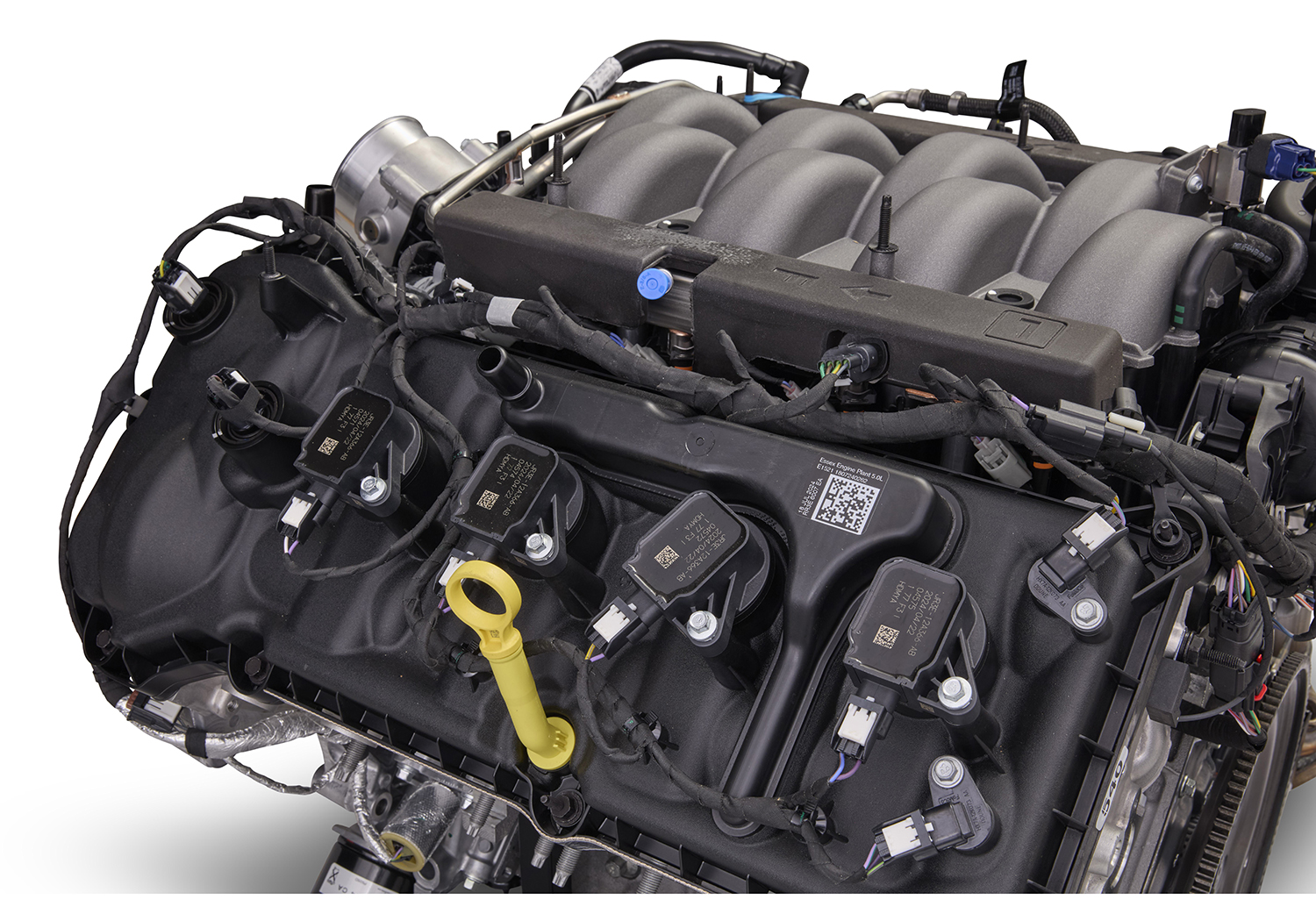

The Ford Performance all-aluminum 5.0L Coyote Gen 4X crate engine is a modern 5.0L 32-valve DOHC V-8 that utilizes advanced features such as direct and port fuel injection, twin independent variable camshaft timing (Ti-VCT), high-flow aluminum cylinder heads, and 12:1 compression to deliver 460 horsepower and 420 lb.-ft. of torque (with premium fuel). The aluminum cylinder block features plasma transferred arc spray in liners, cross-bolted main bearing caps, and thick main bearing bulkheads for strength. The Gen 4X 5.0L Coyote features a single 80mm throttle body for easier packaging in various applications.

  • 460 hp and 420 lb.-ft. of torque
  • 12:1 compression ratio
  • Hypereutectic aluminum pistons
  • Sintered steel connecting rods as used on the Boss 302 Mustang
  • Forged steel crankshaft
  • Single 80 mm "drive-by-wire" throttle body
  • 9.5 quart steel oil pan
  • Composite lightweight intake manifold

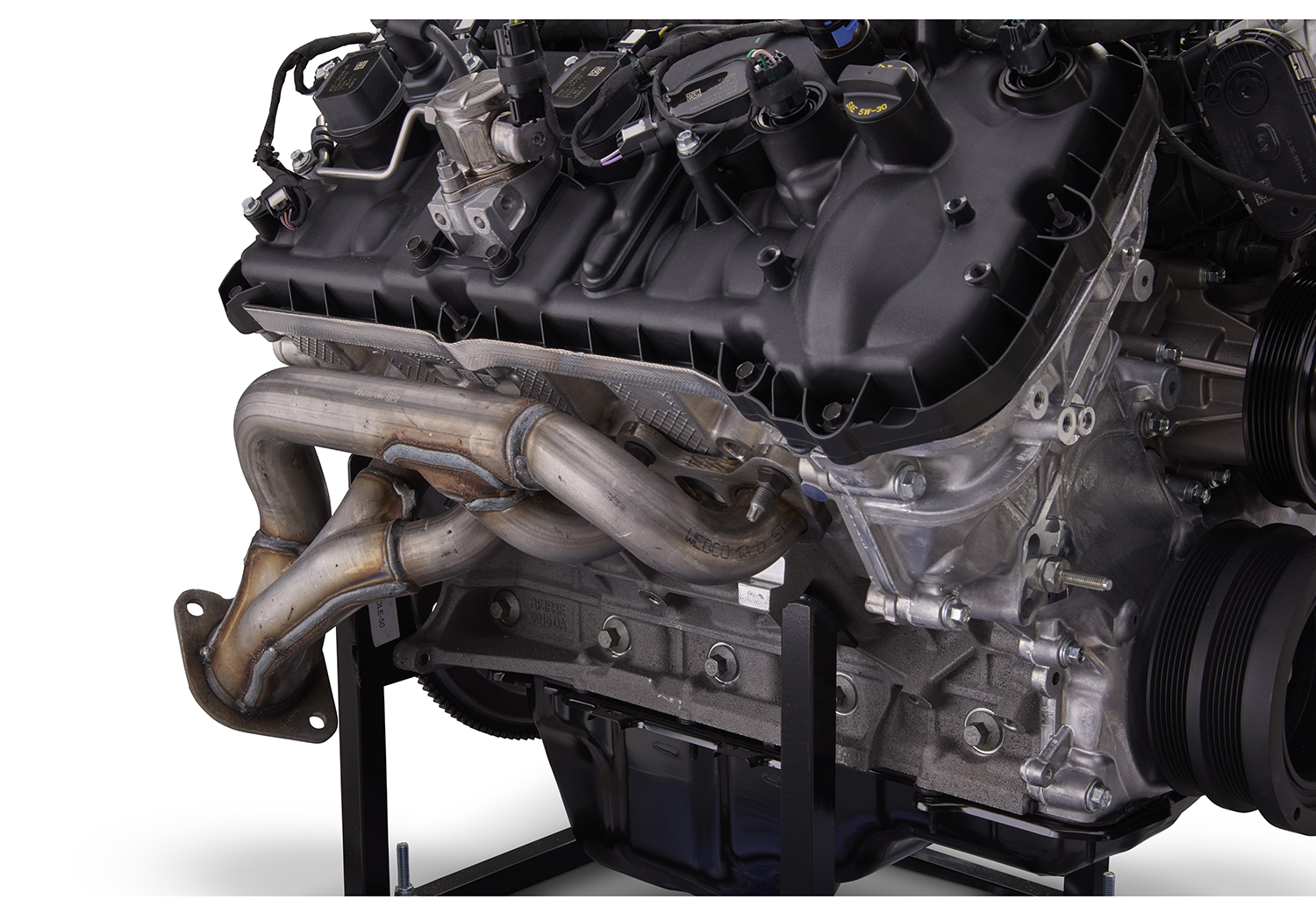

  • Mustang GT 409 stainless steel exhaust manifold RIGHT SIDE ONLY
  • Engine mount bosses and bell housing mount pattern common to 5.0L modular engines
  • For control packs see M-6017-M50HM and M-6017-M50HA
  • For alternator kit see M-8600-M50BALT, M-8600-M50ALTC or M-8600-M50ALTA

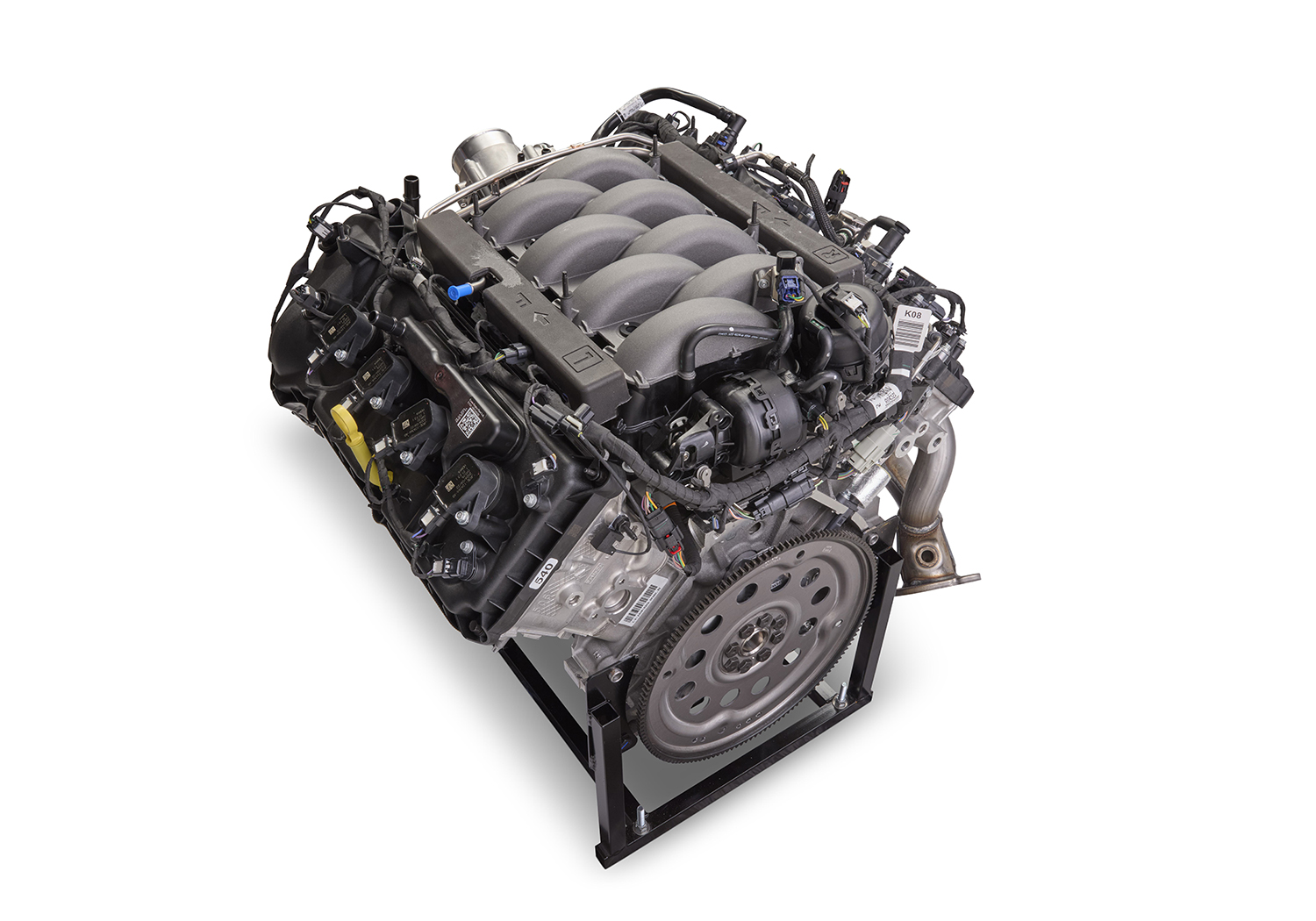

  • 10R80 flexplate included
  • For manual transmission flywheel please see M-6375-M50
  • Engine weight: 445 lbs. without front accessory drive components
***Note: driver side exhaust flange utilizes 5.2L pattern***
Part Type
Engine: Complete Engines
Warranty Availability
Package Dimensions
44" x 44" x 44"
Package Weight
548 lb(s)
UPC Code
756122022214
Country of Origin
United States
