374 CUBIC INCH 540 HP SEALED RACING ENGINE

374 CUBIC INCH 540 HP SEALED RACING ENGINE
M-6007-S374W
Retail
$12,995.00
Sold in Units of
Each (1)
Instruction Sheet

WARNING:
This part has been designed and is intended for off-highway application only. Installation of this part on a vehicle that is driven on public roads may violate U.S. and Canadian laws and regulations relating to emission requirements and motor vehicle safety standards.
Proudly Made in the USA

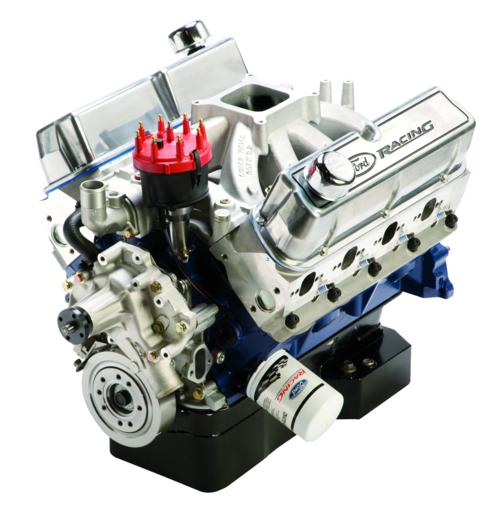

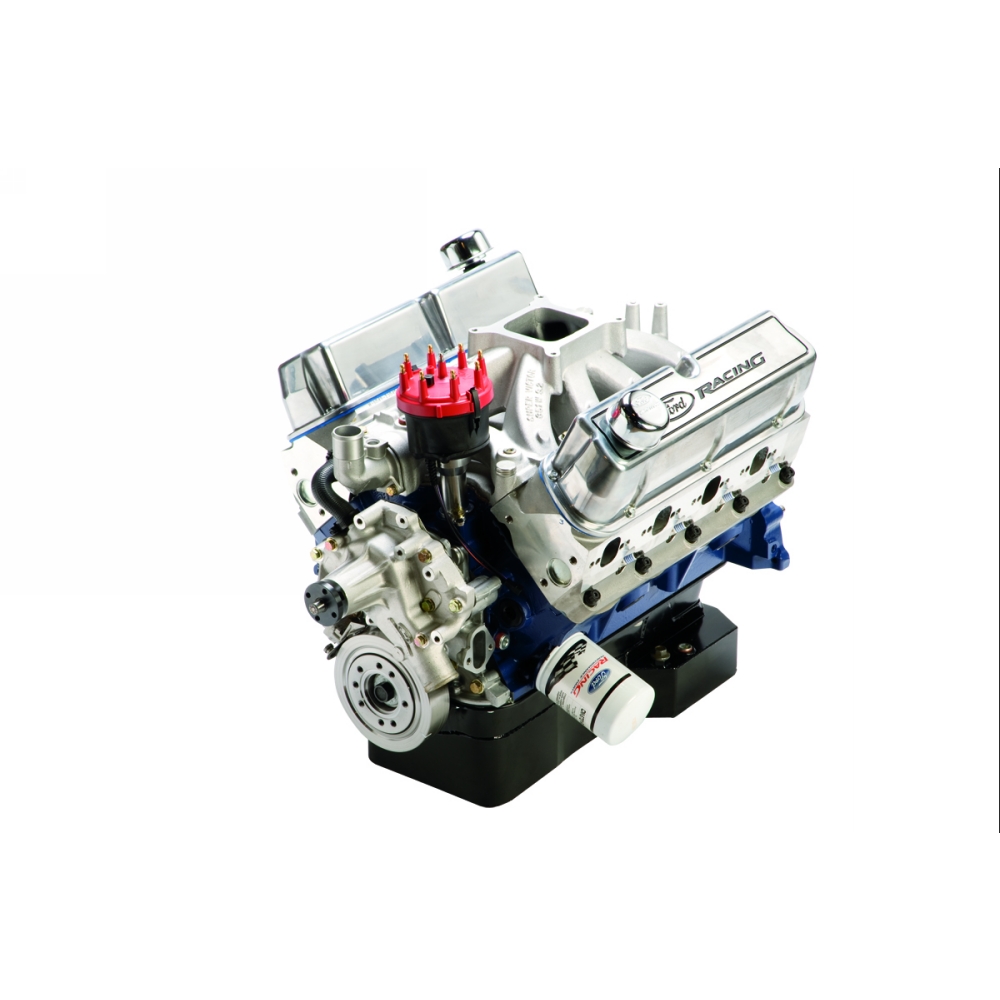

Ford Racing expands its line of Sealed Racing Engines with the new 540 Horsepower S374W engine developed for asphalt and dirt circle track racing. Ford Sealed Racing Engines are built to professional racing series standards to deliver reliable and lasting performance. These aren't built from repackaged production parts, but real racing parts that start with the Ford Racing BOSS 351 Block, adds Eagle forged steel crankshaft, steel H-beam rods and forged Mahle pistons with full floating pins and is topped with CNC Ported Z-Heads. Specifications:

  • Designed and developed for short track asphalt and dirt circle track racing where spec or sealed engines are required
  • 374 cubic inches  4.125" bore - 3.500" stroke
  • 9.2 deck BOSS 351 block with 4-bolt mains
  • 540 HP @ 7000 / 470 lb.ft. torque @ 5100 w/ a 750 4 bbl. carb - 505 HP w/ a Holley 500 CFM 2 BBL carb
  • 11.0:1 compression ratio
  • Forged steel Eagle crank, Eagle steel H-beam connecting rods
  • Mahle forged pistons
  • M-6049-Z304P "Z" CNC ported aluminum cylinder heads w/ 2.08" intake and 1.60" stainless steel valves
  • Edelbrock Super Victor Intake manifold
  • Solid roller tappet camshaft, .525" lift intake and exhaust, 258 degree intake duration @ .050" and  266 degree exhaust duration at .050"
  • 1.65:1 Roller Rocker Arms
  • M-6268-B302 double roller timing chain
  • 9 quart steel oil pan
  • Edelbrock water pump
  • SFI approved harmonic balancer
  • MSD Billet distributor
  • Factory sealed for asphalt and dirt circle track competition
  • Each engine is dyno-tested and provided with the dyno run data
  • Competes with GMPP CT-525 crate engine
  • Additional technical information can be found at www. fordracingparts.com/circletrack
  • Engine is internally ballanced, "0" balance flywheel required
  • Flywheel not included



Built with current available parts. Photo and specs may vary.

See Also...

  • Hero Card
  • Circle Track
  • Crate Engine Build-Up
  • Engine Tips & Specs
  • Part Type
    Engine: Complete Engines
    Instruction Sheet
    Warranty Availability
    Not Available
    Packaged Dimensions
    36" x 39" x 36
    Packaged Weight
    553 lb(s)
    Part Type
    Engine: Complete Engines
    UPC Code
    756122118924
    Country of Origin
    United States
    California Executive Order
    No
