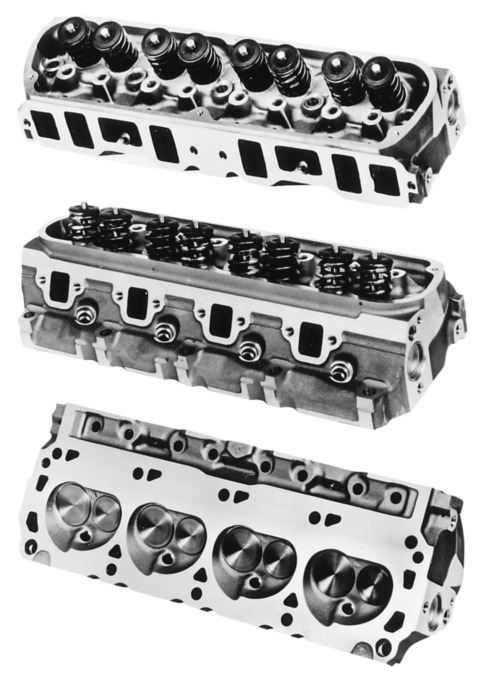

GT-40X XTRA PERFORMANCE "TURBO-SWIRL" ALUMINUM CYLINDER HEAD

This part is no longer available.
GT-40X XTRA PERFORMANCE "TURBO-SWIRL" ALUMINUM CYLINDER HEAD
M-6049-X302
Instruction Sheet
Not Available
    M-6049-X302* Bare Head (64cc Chamber) M-6049-X303* Complete Head (64cc Chamber) M-6049-X304* Bare Head (58cc Chamber) M-6049-X305* Complete Head (58cc Chamber) THE FAST, EASY WAY TO BOLT-ON 65 HORSEPOWER! TRUE BOLT-ON PERFORMANCE
  • For use on 289/302/351 Windsor-style engines
  • Improved air flow over original GT-40 aluminum heads
  • Intake flows approximately 240 cfm at .550" lift (at 28" of H20)
  • Exhaust flows approximately 170 cfm at .500" lift (at 28" of H20)
  • Machined for 1.94" Intake and 1.54" exhaust valve diameters
  • Unlike some aftermarket heads our GT-40 heads use either GT-40 or aftermarket performance: intake manifolds, headers, and valve covers.
  • Intake port volume 178cc, exhaust port volume 62cc
  • High temperature exhaust valve seats. Thick deck for improved sealing, increased section thickness in critical areas for porting, and webbed rocker bosses for improved strength. Designed for bolt-on rocker arms, machined for tapered seat spark plug or gasketed. Compatible with Ford Racing intakes, headers, and valve train components. Can be machined for diagonal exhaust header flange mounting.
  • High quality original equipment style 356-T6 aluminum castings, machining and components
  • Each aluminum head weighs approximately 22 lbs. – approximately 25 lbs. lighter than each cast iron GT-40 head.
  • These GT-40 style heads use AGSF-32C spark plugs
  • Each GT-40X head is leak tested prior to assembly
  • Head assembly consists of bare head M-6049-X302/X304 and GT-40 valve train kit M-6090-X302 featuring stainless steel valves. The valve springs are compatible with all Ford Racing roller camshafts. See page 99 for complete list of valve train components.
    INSTALLATION NOTES:
  • Will not fit 1986 5.0L with flat-top pistons unless pistons are notched for valve relief
  • Must use head bolt kit M-6065-D289 to install cylinder heads on 289/302 blocks or head bolt and head gasket kit M-6051-A50 and intake gasket M-9439-A50/A51
  • Check rocker arm clearance to valve springs with production rocker arms
  • Check your intake manifold for port match, not all intakes are compatible due to the tall high-flow ports
  • Must use M-9439-A50 intake gasket
Part Type
Engine: Cylinder Heads
Warranty Availability
Not Available
Package Dimensions
9.25" x 7.25" x 20.5"
Package Weight
23.4 lb(s)
UPC Code
756122604342
Country of Origin
United States
