5.2L GT350 CYLINDER HEAD LH

This part is no longer available.
5.2L GT350 CYLINDER HEAD LH
5.2L GT350 CYLINDER HEAD LH
5.2L GT350 CYLINDER HEAD LH
5.2L GT350 CYLINDER HEAD LH
M-6050-M52
Instruction Sheet
Available (PDF)
ATTENTION:
This part is intended as a replacement part for use only in the application(s) identified in the product description. Installation of this part in a vehicle for which it is not intended may violate U.S. and Canadian laws and regulations related to motor vehicle emissions.
Proudly Made in Canada

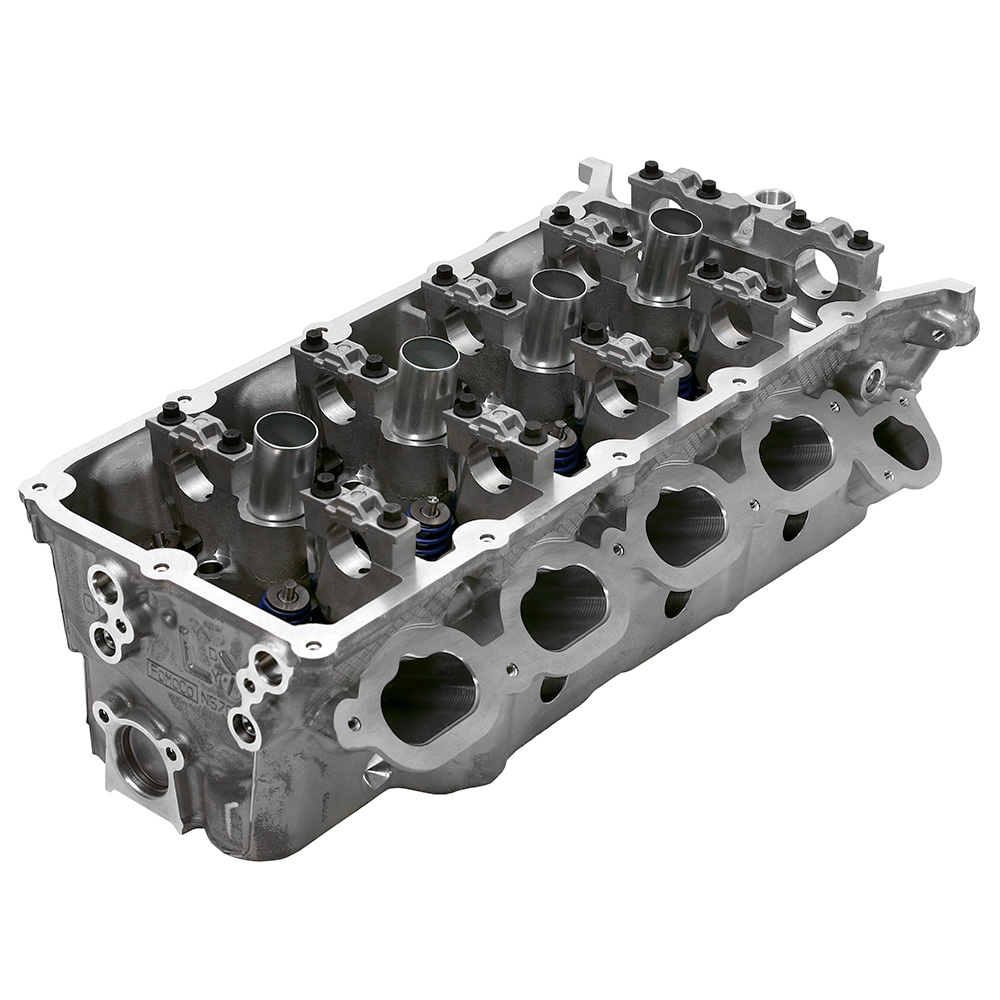

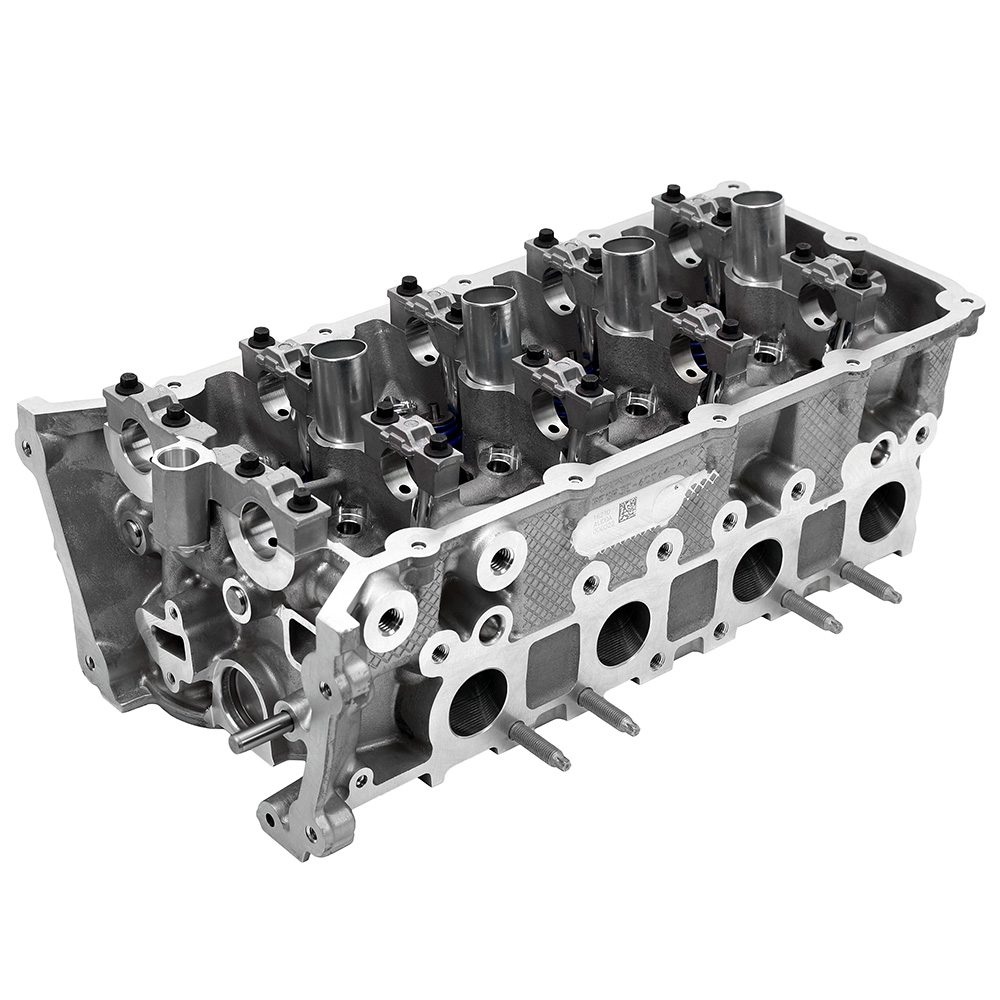

  • Production left hand cylinder head for the 5.2L GT350
  • Fully CNC ported intake ports, exhaust ports and combustion chamber
  • Larger port sizing than the 2015-2017 5.0L Coyote cylinder heads
  • 38.3mm intake valve and 32.5mm exhaust valve
  • For reference, 2015-2017 5.0L Coyote valve sizes are 37.3mm intake, 31.8mm exhaust
  • New valvetrain geometry allows for higher valve lift
  • Lightweight hollow-stem intake valves and sodium-filled exhaust valves
  • Loaded head assembly minus camshafts, rocker arms and lash adjusters
  • Use on a 5.0L Coyote requires unique camshaft due to valvetrain geometry, see M-6550-M52 or M-6550-M52A
  • Installation of 5.2L heads on 5.0L engine requires piston modification for proper piston to valve clearance.
  • Requires 5.2L rocker arms and lash adjusters, see  M-6564-M52
Part Type
Engine: Cylinder Heads
Instruction Sheet
Warranty Availability
Not Available
Package Dimensions
12.25" x 9.75" x 22"
Package Weight
41 lb(s)
UPC Code
756122003046
Country of Origin
Canada
