ELUMINATOR™ MACH E ELECTRIC MOTOR
This part is no longer available.
M-9000-MACHE
Instruction Sheet
Not Available
.png)
The “Fifty States Street Legal” icon means that this part has been
determined by the California Air Resources Board (CARB) not to
have an adverse effect on emissions when installed and used properly
in the application(s) identified in the product description.
Under EPA and CARB policy, such parts may be installed in vehicles driven
on public roads and highways.

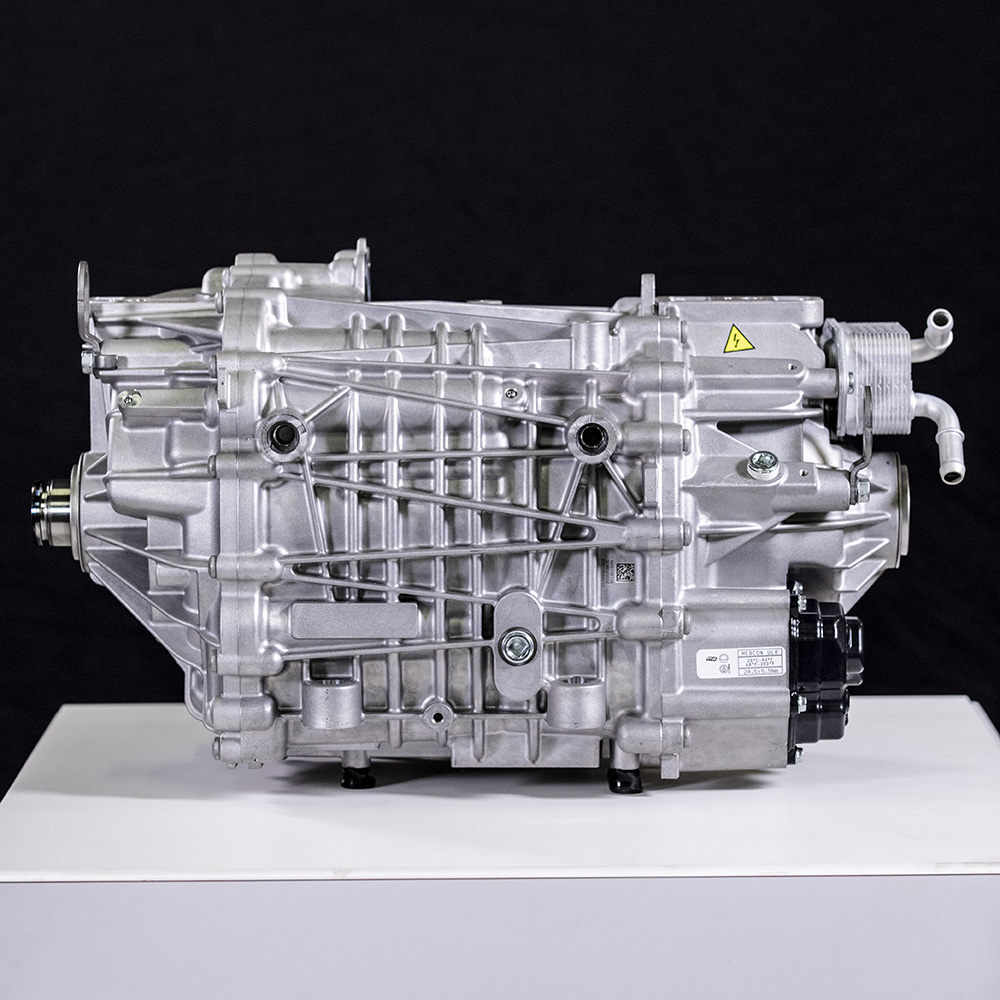

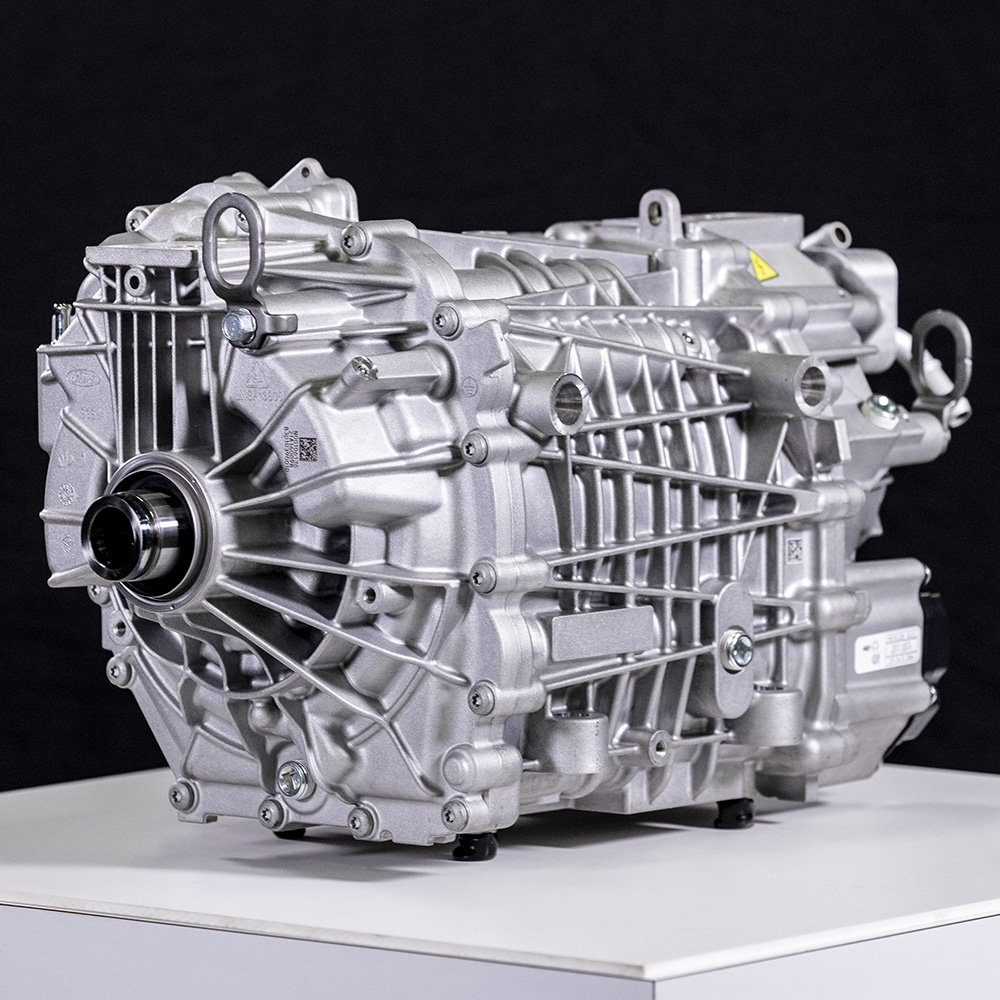

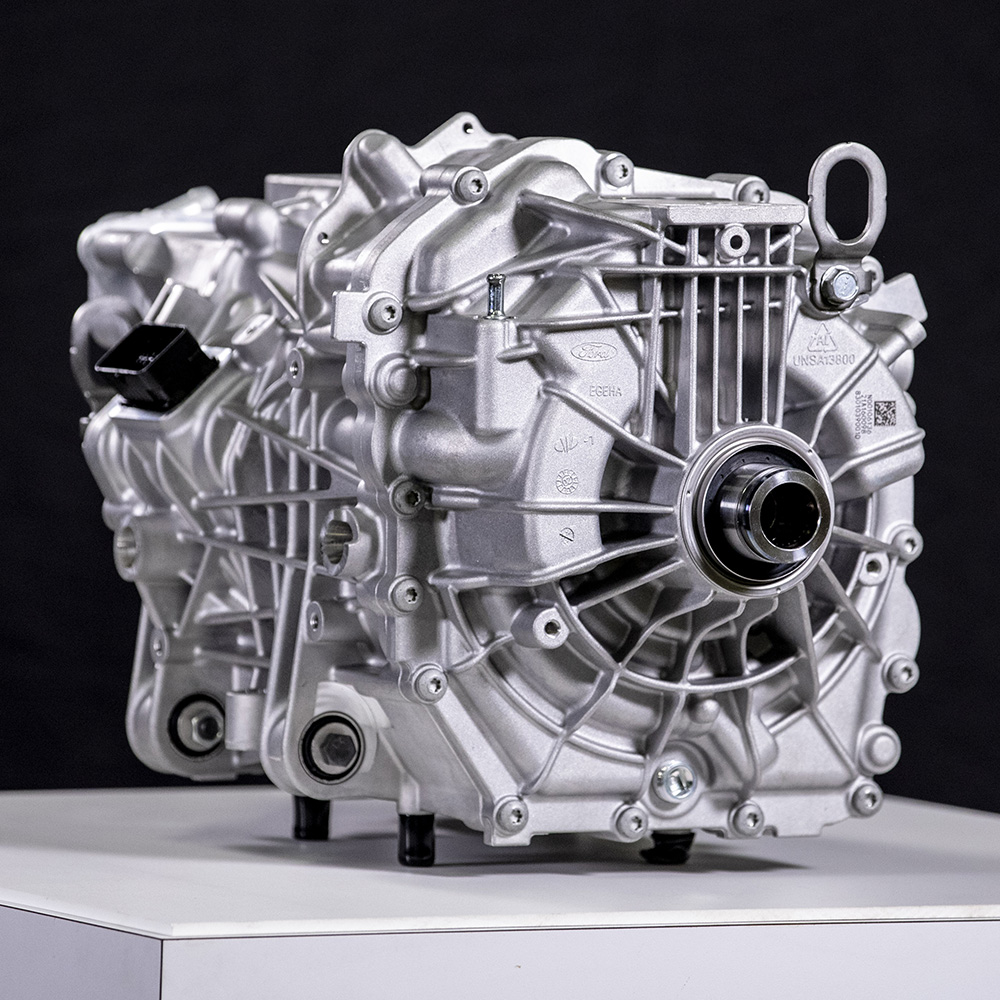

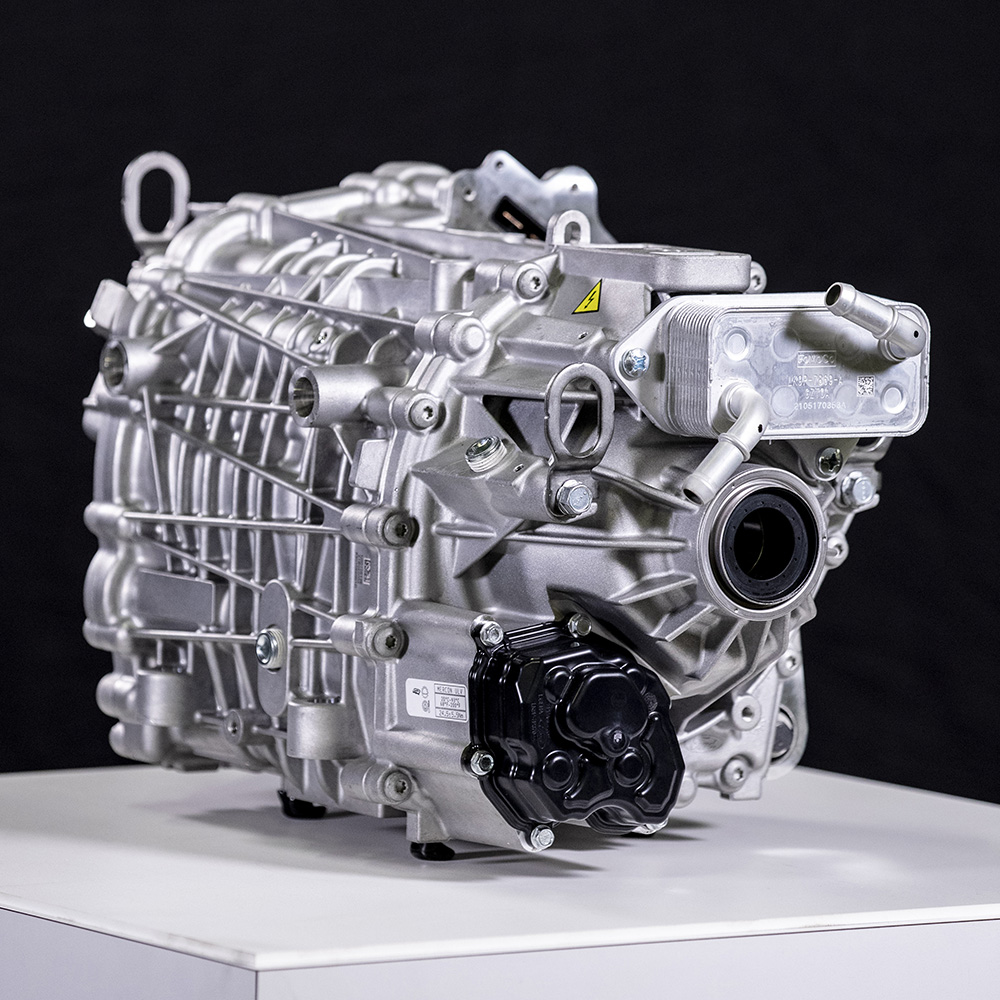

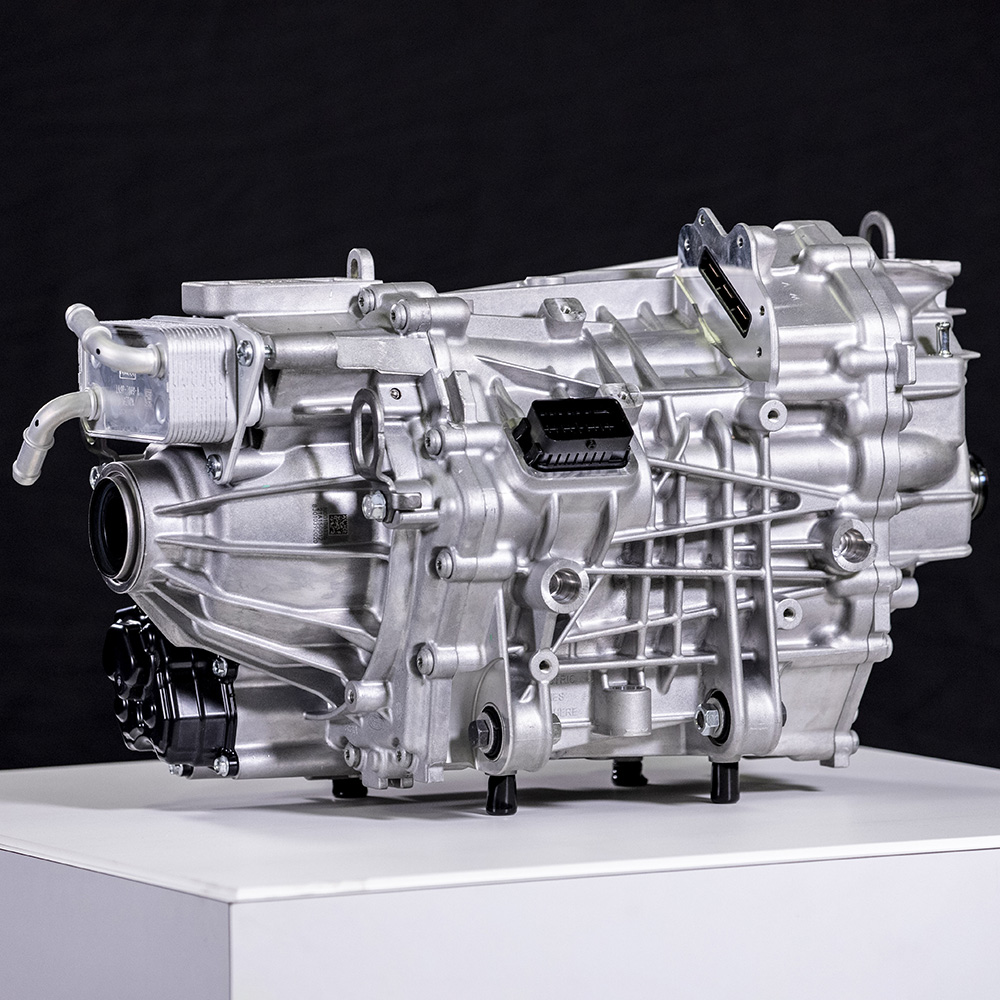

Ford Performance Parts is proud to offer the Eluminator™!!! This electric motor is from the 2021 Mustang Mach E GT.
- Peak power: 210kW (281hp)
- Peak torque: 430Nm (317 lb.-ft.)
- Max speed: 13,800rpm
- Gear ratio: 9.05:1
- Weight: 93kg / 205 lbs
- HV motor to traction inverter harness
- LV harness/connector
- Vent tube assembly.
Does NOT include the following parts required for operation:
- Traction inverter
- Control system
- Battery
These parts must be sourced from the aftermarket. For more information, please call the Ford Performance Parts Techline.
Part Type
Engine: Complete Engines
Warranty Availability
Not Available
Package Dimensions
22" x 22" x 32"
Package Weight
220 lb(s)
UPC Code
756122015049
Country of Origin
Mexico
