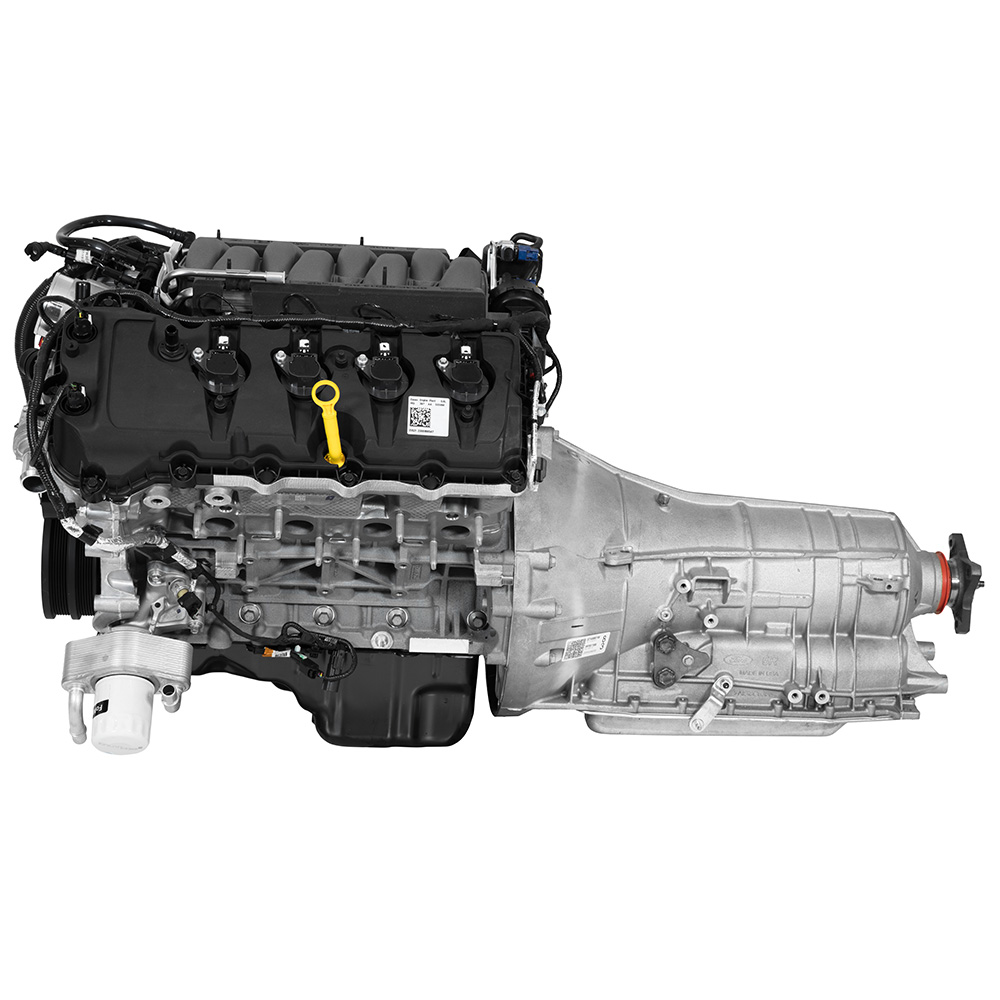

GEN 2 5.0L COYOTE POWER MODULE WITH 6R80 6 SPEED AUTOMATIC TRANSMISSION

This part is no longer available.
GEN 2 5.0L COYOTE POWER MODULE WITH 6R80 6 SPEED AUTOMATIC TRANSMISSION
M-9000-PMCA
Instruction Sheet
Not Available
WARNING:
This part is designed and intended for competition use only or off-highway use only. It should not be installed on a vehicle that is driven on public roads and highways. Installation of this part on a vehicle driven on public roads and highways is likely to violate U.S. and Canadian laws and regulations relating to motor vehicle emissions.
WARNING: Cancer http://www.p65warnings.ca.gov.
Complete Modern Powertrain Solution for Any Ford
  • 2017 Mustang GT 5.0L 435 HP Coyote Engine
  • 6R80 6 Speed automatic transmission
  • Complete Engine Controller and Wiring Harness (Control Pack)

The crew at Ford Performance have spec'd out a complete kit to simplify the swap of modern 5.0L Coyote power into just about Ford vehicle. The Coyote Power Module teams the Mustang GT 435 horsepower 5.0L Coyote V8 with a state of the art 6R80, 6-Speed transmission - and all the electronics and hardware to finish the installation.  The Coyote Power Module simplifies both the shopping and build experience by kitting up the right parts that are matched to deliver potent performance with civilized drivability.  The engine Control Pack  is truly plug and play and simplifies the conversion to a modern electronically fuel injected V8 high performance engine.

  • 2017 Mustang GT 5.0L Coyote Engine (automatic transmission version)
  • 435 Horsepower @ 6,500 rpm
  • 400 lb.-ft. Torque @ 4,250 rpm
  • 11.0:1 Compression ratio
  • Aluminum block
  • 6R80 6 speed transmission, as found in a 2017 Mustang GT, with flex plate, torque converter, transmission lines and wiring
  • Gear shifter assembly, as found in a 2017 Mustang GT
  • Boss 302 Alternator Kit – M-8600-M50BALT
  • Starter and Starter Index Plate
  • Controls Pack PCM and installation kit is tunable for power upgrades - M-6017-M50A
  • Runs on pump gas
  • Installation hardware
  • 2017 Mustang GT 409 stainless-steel tubular exhaust manifold on the RIGHT SIDE ONLY
  • NOTE- Left Hand Side exhaust manifold not included
  • Coyote Crate Engine Technical Reference Guide

Click here for engine exterior dimensions

Part Type
Engine: Complete Engines
Warranty Availability
Package Weight
865 lb(s)
UPC Code
756122005217
Country of Origin
United States
