GEN 2 5.0L COYOTE 435 HP MUSTANG CRATE ENGINE

This part is no longer available.
GEN 2 5.0L COYOTE 435 HP MUSTANG CRATE ENGINE
M-6007-M50A
Instruction Sheet
Not Available
ATTENTION:
This part is intended as a replacement part for use only in the application(s) identified in the product description. Installation of this part in a vehicle for which it is not intended may violate U.S. and Canadian laws and regulations related to motor vehicle emissions.
Proudly Made in Canada

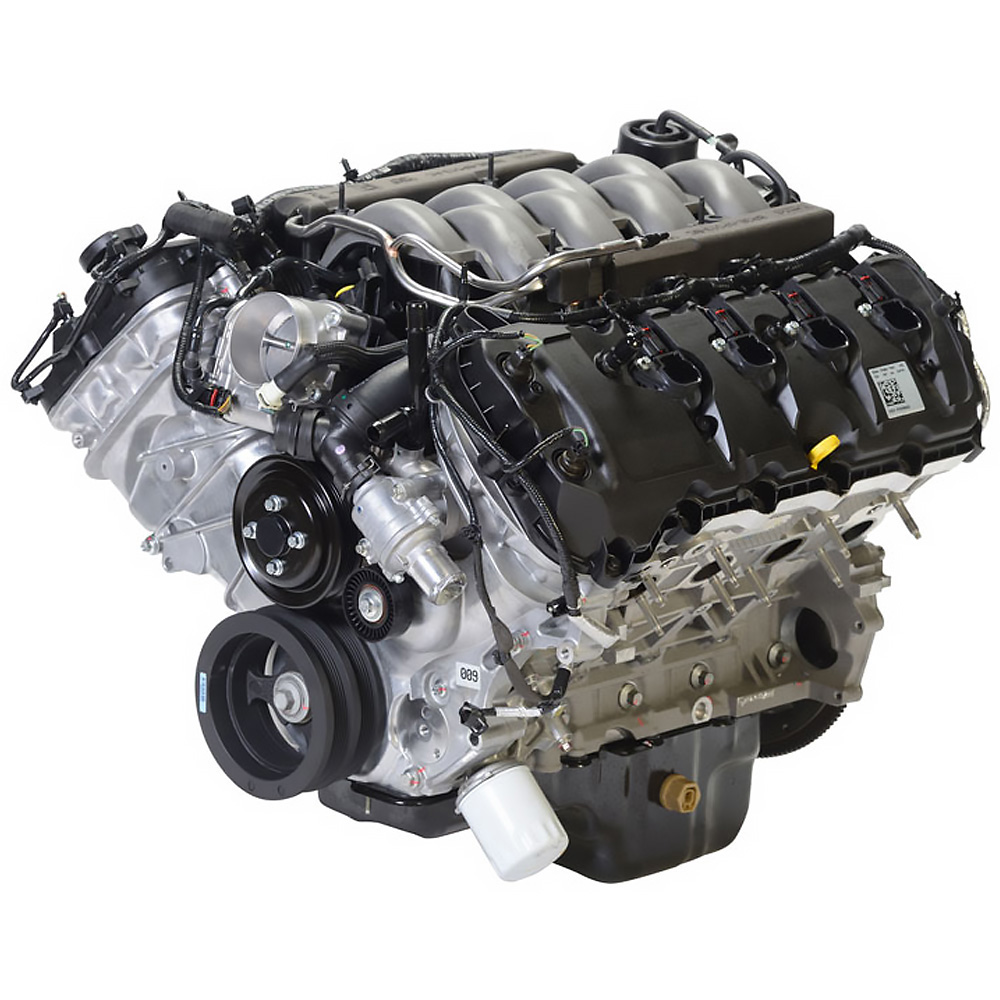

The Ford Performance all-aluminum 2017 5.0L Coyote crate engine is a modern 5.0L 32-valve DOHC V-8 that uses advanced features like Twin Independent Variable Camshaft Timing (Ti-VCT) to deliver 435 horsepower @ 6,500 rpm and 400 ft.-lb.+ of torque @ 4,250 rpm (with premium fuel). The lightweight aluminum cylinder block features cross-bolted main bearing caps and thick main bearing bulkheads for bottom-end strength, optimized oil drainback and windage control to improve high-rpm performance.

  • 435 Horsepower @ 6,500 rpm
  • 400 ft.-lb.+ Torque @ 4,250 rpm
  • 11.0:1 Compression ratio
  • Hypereutectic aluminum pistons
  • Forged steel connecting rods
  • Forged steel crankshaft
  • Aluminum block
  • 8qt capacity oil pan
  • Tuned composite intake manifold provides efficient air delivery and weight savings
  • 80 mm single bore "drive by wire" throttle body with variable runner control
  • Aluminum cylinder heads, DOHC, four valves per cylinder, Variable intake and exhaust camshaft timing
  • Mustang GT 409 stainless-steel tubular exhaust manifold on the RIGHT SIDE ONLY
  • Includes manual transmission engine harness and flywheel, for engine equipped with automatic transmission engine harness and flexplate, see M-6007-M50AAUTO
  • Engine mount bosses and bell housing mount pattern common to 4.6L modular engines
  • Vehicle harness and PCM not included
  • Use Ford Performance's NEW wiring, PCM and installation kit M-6017-504V designed for project car installation
  • Does not include alternator, for alternator kit see M-8600-M50BALT
  • 5.0L Coyote Air Conditioning kit available, see M-8600-M50AC
  • 5.0L Mustang motor mount kit available, see M-6038-M50
  • 5.0L Mustang engine cover kit available, see M-9680-M50A
  • Photo and specs may vary
  • Engine weight: 445 lbs.
  • Note: In order for low oil sensor to function in 2015-2016 Mustang, re-use existing oil pan or replace with BR3Z-6675-A pan, available at any Ford dealer

Click here for engine exterior dimensions

Part Type
Engine: Complete Engines
Warranty Availability
Package Dimensions
36.5" x 44.5" x 36"
Package Weight
549 lb(s)
UPC Code
756122002087
Country of Origin
Canada
