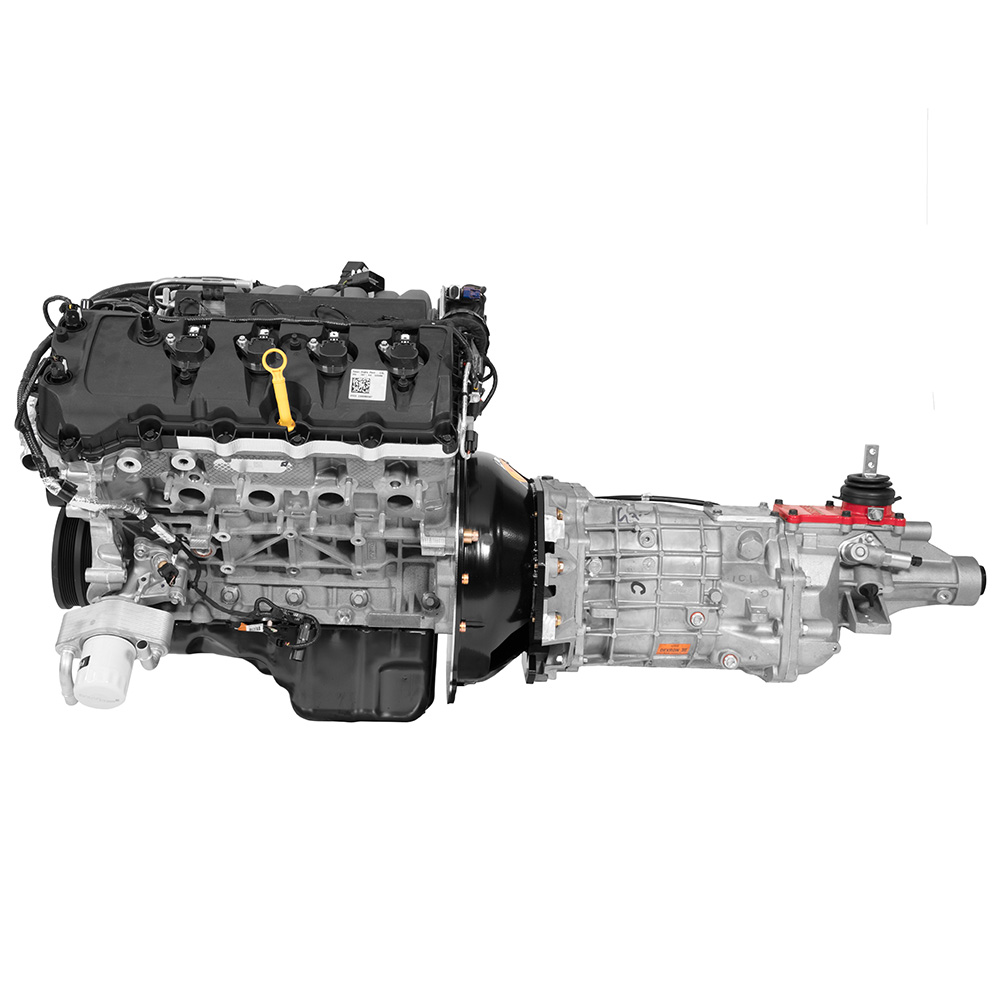

GEN 2 5.0L COYOTE POWER MODULE WITH 6 SPEED MANUAL TRANSMISSION

This part is no longer available.
GEN 2 5.0L COYOTE POWER MODULE WITH 6 SPEED MANUAL TRANSMISSION
M-9000-PMCM
Instruction Sheet
Not Available
WARNING:
This part is designed and intended for competition use only or off-highway use only. It should not be installed on a vehicle that is driven on public roads and highways. Installation of this part on a vehicle driven on public roads and highways is likely to violate U.S. and Canadian laws and regulations relating to motor vehicle emissions.
WARNING: Cancer http://www.p65warnings.ca.gov.
Proudly Made in Canada

Complete Modern Powertrain Solution for Any Ford

  • 2017 Mustang GT 5.0L 435 HP Coyote Engine

  • Tremec 6 speed manual transmission
  • Complete Engine Controller and Wiring Harness (Control Pack)

The crew at Ford Performance have spec'd out a complete kit to simplify the swap of modern 5.0L Coyote power into just about Ford vehicle. The Coyote Power Module teams the Mustang GT 435 horsepower 5.0L Coyote V8 with a state of the art Tremec 6-Speed transmission - and all the electronics and hardware to finish the installation.  Coyote Power Module simplifies both the shopping and build experience by kitting up the right parts that are matched to deliver potent performance with civilized drivability.  The engine Control Pack is truly plug and play and simplifies the conversion to modern electronically fuel injected V8 high performance engine.

  • 2017 Mustang GT 5.0L Coyote Engine - M-6007-M50A
  • 435 Horsepower @ 6,500 rpm
  • 400 lb.-ft. Torque @ 4,250 rpm
  • 11.0:1 Compression ratio
  • Aluminum block
  • Boss 302 Alternator Kit – M-8600-M50BALT
  • Starter and Starter Index Plate
  • Control Pack PCM and installation kit is tunable for power upgrades - M-6017-504V
  • Runs on pump gas
  • Steel Quicktime Bellhousing
  • Roller Pilot Bearing – M-7600-B
  • Tremec 6-Speed Transmission 2.66 1st gear - M-7003-M6266
  • Clutch Fork / throw-out bearing
  • Clutch Kit M-7560-T46
  • Installation hardware
  • Mustang GT 409 stainless-steel tubular exhaust manifold on the RIGHT SIDE ONLY
  • NOTE: Left Hand Side exhaust manifold not included
  • Coyote Crate Engine Technical Reference Guide

Click here for engine exterior dimensions

Part Type
Engine: Complete Engines
Warranty Availability
Package Weight
865 lb(s)
UPC Code
756122003381
Country of Origin
Canada
