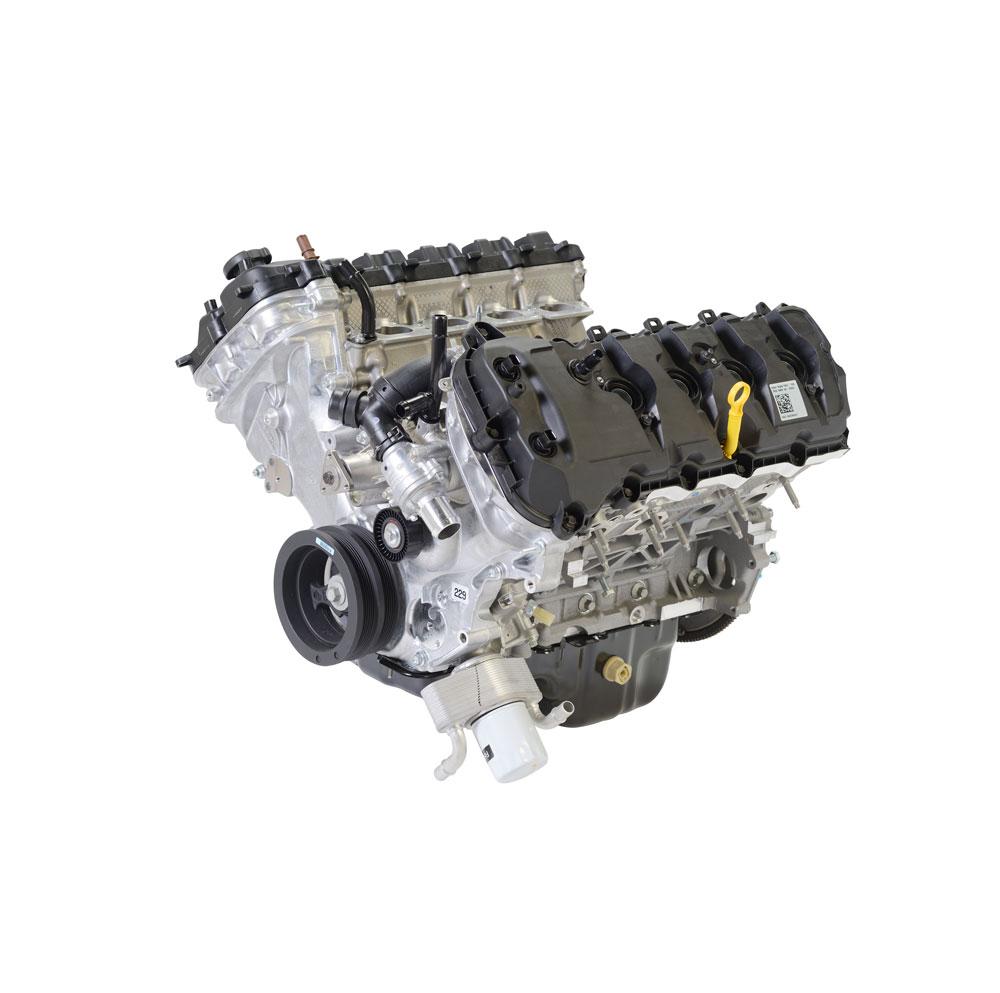

GEN 1 5.0L COYOTE LONG BLOCK

This part is no longer available.
GEN 1 5.0L COYOTE LONG BLOCK
M-6006-M50A1
Instruction Sheet
Not Available
WARNING:
This part is designed and intended for competition use only or off-highway use only. It should not be installed on a vehicle that is driven on public roads and highways. Installation of this part on a vehicle driven on public roads and highways is likely to violate U.S. and Canadian laws and regulations relating to motor vehicle emissions.
WARNING: Cancer http://www.p65warnings.ca.gov.
Proudly Made in Canada

The M-6006-M50A1 Long Block has been developed for the customer that needs a Coyote that will run in a "Gen 1", 2011-2014 Mustang or run with a "Gen 1" engine control system.

This long block offers a performance improvement in 2011-2014 Mustangs due to the performance enhancing updates/components noted below:

  • Larger intake valves than "Gen 1"
  • Larger exhaust valves than "Gen 1"
  • Revised intake camshafts from "Gen 1"
  • Revised exhaust camshafts from "Gen 1"
  • Stiffer valve springs to ensure that the valves close completely at high rpm
  • New cylinder-head casting, including revised ports that provide a straighter path to the valves for less-restrictive intake and exhaust flow and combustion chamber modifications to accommodate larger valves
  • Redesigned piston tops with deeper cutouts to clear the new larger valves
  • Rebalanced forged crankshaft that supports higher-rpm operation
  • 11.0:1 Compression ratio
  • Hypereutectic aluminum pistons
  • Forged connecting rods
  • Forged steel crankshaft
        • Aluminum block
        • 8 qt. capacity oil pan
        • Aluminum cylinder heads, DOHC, four valves per cylinder, Variable intake and exhaust camshaft timing
        • Engine mount bosses and bell housing mount pattern common to 4.6L modular engines

Many of the above improvements to the "Gen 2", 2015-2017 Coyote focus on allowing it to breathe better. The improvements, many of which are derived from the lessons learned in developing the special edition 2012-2013 Mustang Boss 302, allow for better breathing, especially at higher engine speeds.

This long block does not include the following:
Part Type
Engine: Complete Engines
Warranty Availability
Package Dimensions
36" x 39.5" x 36"
Package Weight
441 lb(s)
UPC Code
756122004340
Country of Origin
Canada
