Proudly Made in Canada

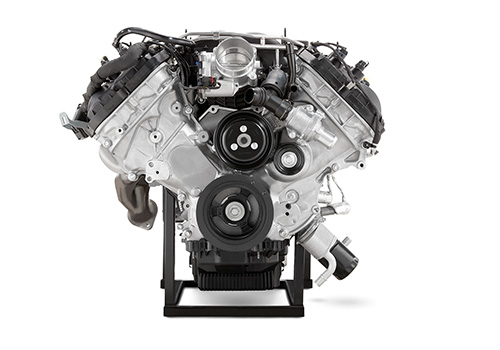

'Sealed' Gen 3, 2020 Coyote crate engine for use by NMRA-Coyote stock racing competitors ONLY*, the Ford Performance all-aluminum 2020 5.0L Coyote crate engine is a modern 5.0L 32-valve DOHC V-8 that uses advanced features like Twin Independent Variable Camshaft Timing (Ti-VCT) to deliver 460 horsepower @ 7,000 rpm and 420 ft.-lb.+ of torque @ 4,600 rpm (with premium fuel). The lightweight aluminum cylinder block features cross-bolted main bearing caps and thick main bearing bulkheads for bottom-end strength, optimized oil drainback and windage control to improve high-rpm performance.
  • 460 horsepower 420 ft.-lb.+ of torque
  • 12.0:1 Compression ratio
  • Hypereutectic aluminum pistons
  • Sintered steel connecting rods as used on Boss 302 Mustang
  • Forged steel crankshaft
  • Steel billet oil pump gears M-6600-M50A
  • Aluminum block featuring plasma transferred wire arc transferred spray weld liner
  • 8qt capacity oil pan
  • Tuned composite intake manifold provides efficient air delivery and weight savings
  • 80 mm single bore "drive by wire" throttlebody with variable runner control
  • Aluminum cylinder heads, DOHC, four valves per cylinder, Variable intake and exhaust camshaft timing
  • Includes manual transmission engine harness and flywheel
  • Vehicle harness and PCM not included
  • Use Ford Performance Controls Pack M-6017-M50B
  • Does not include alternator, for alternator kit see M-8600-M50BALT
  • Engine mount bosses and bell housing mount pattern common to 4.6L modular engines
  • Photo and specs may vary.
  • Engine weight: 425 lbs (without accessories)
  • *Proof of NMRA membership/competition license must be provided to frpp@ford.com. Contact the Ford Performance Parts Tech-line @ 800-367-3788 for more details.
Part Type
Engine: Complete Engines
Instruction Sheet
Warranty Availability
Not Available
Packaged Dimensions
36.5" x 44.5" x 36
Packaged Weight
650 lb(s)
UPC Code
Country of Origin
